Waterway 319-3090B wet end seal

In stock
24,00€
incl. 20% VAT
Quantity:
Waterway 319-3090B wet end seal - Click to enlarge
Waterway 319-3090B wet end seal - Click to enlarge
Waterway 319-3090B wet end seal - Click to enlarge
Waterway 319-3090B wet end seal - Click to enlarge

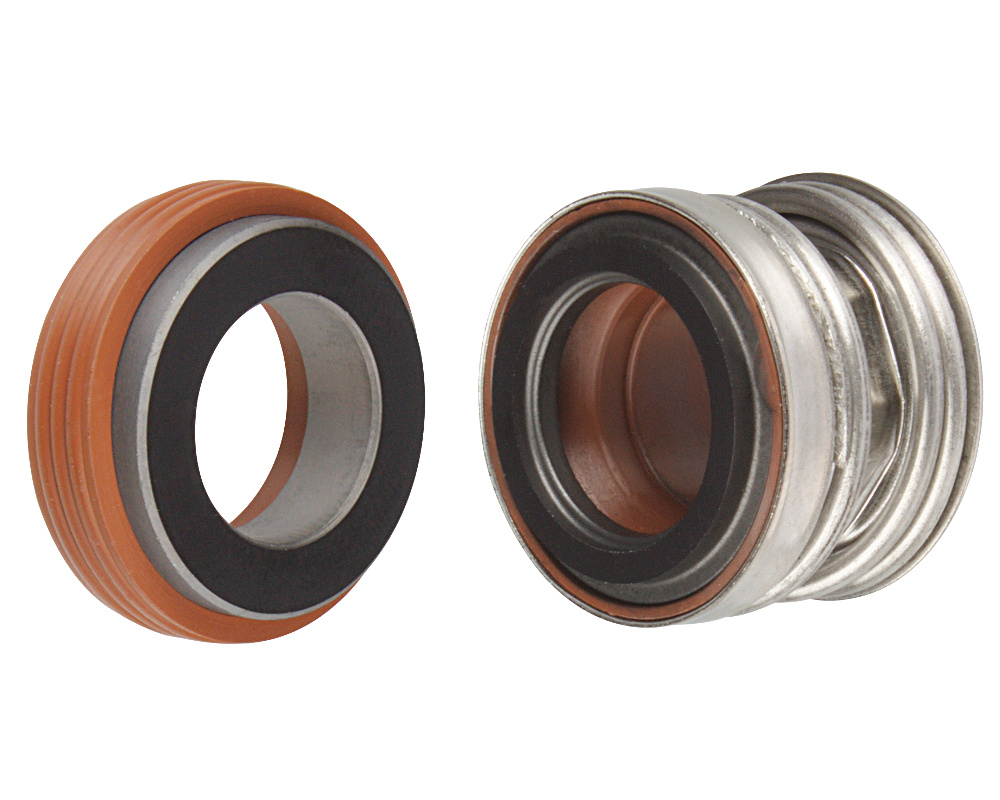

This seal ensures that the water doesn't leak out of the pump wet end, along the motor spindle. It comes in two parts: one mounts on the wet end (in the centre of the photo) and the other slots in behind the impeller (right of the photo).

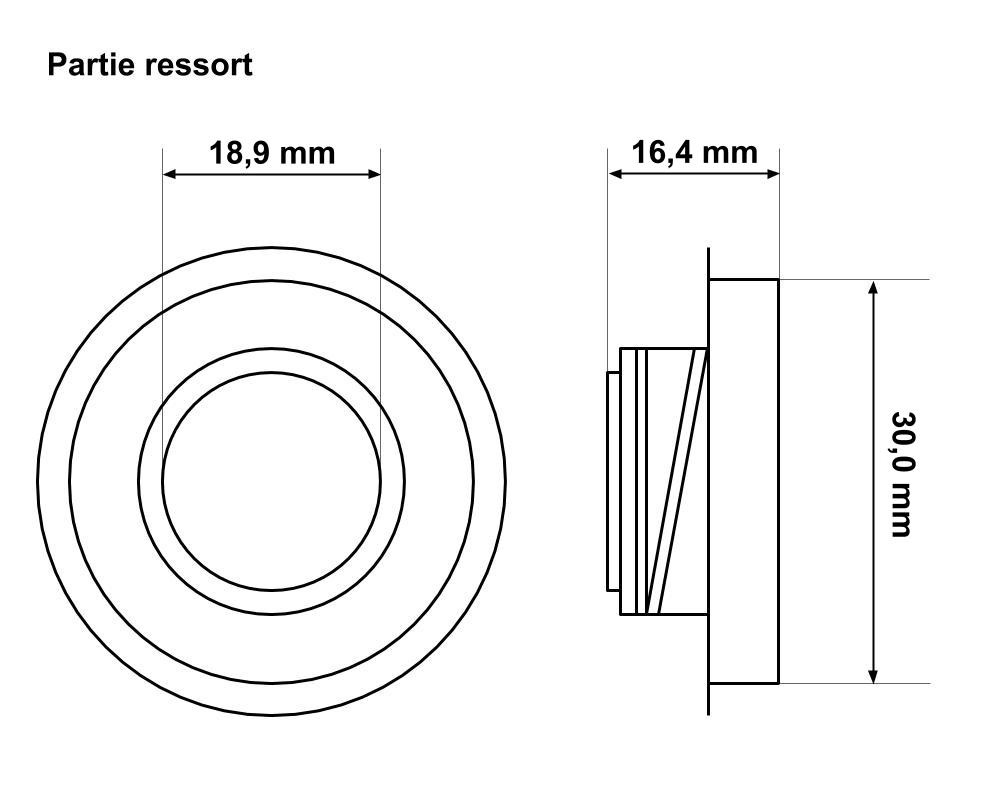

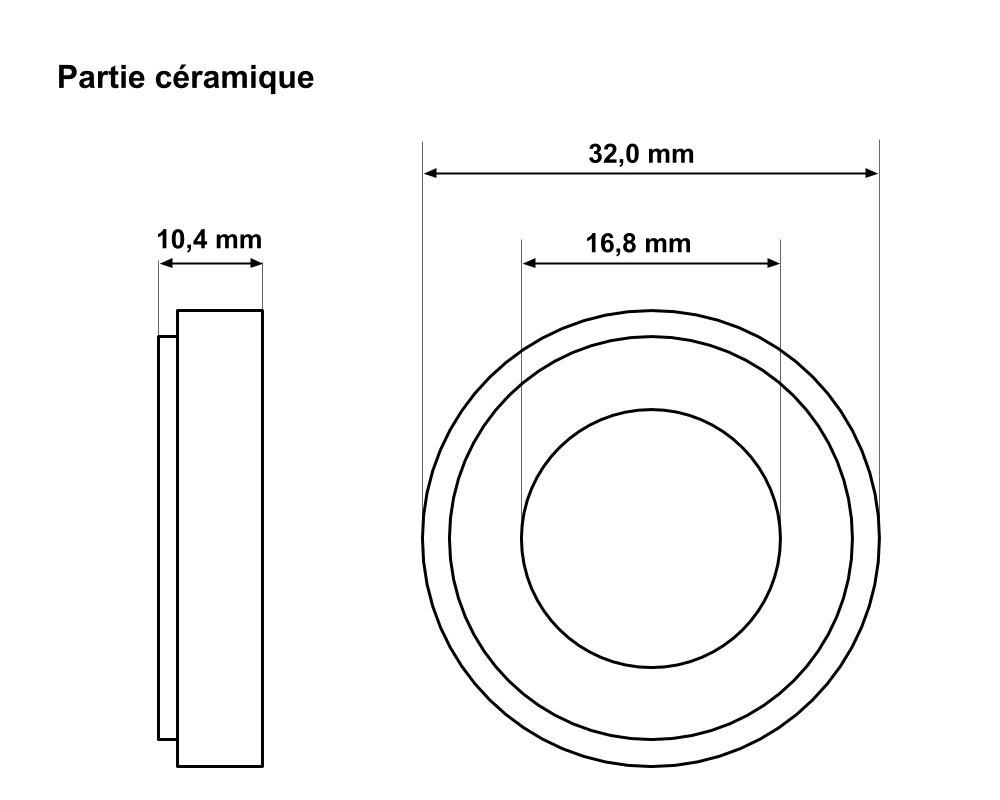

Dimensions (mm)

Ceramic ring Spring
Outside Ø 32,0 30,0
Inside Ø 16,8 16,4
Thickness 10,4 18,9

Compatibility

Part numbers
Waterway : 319-3090B
