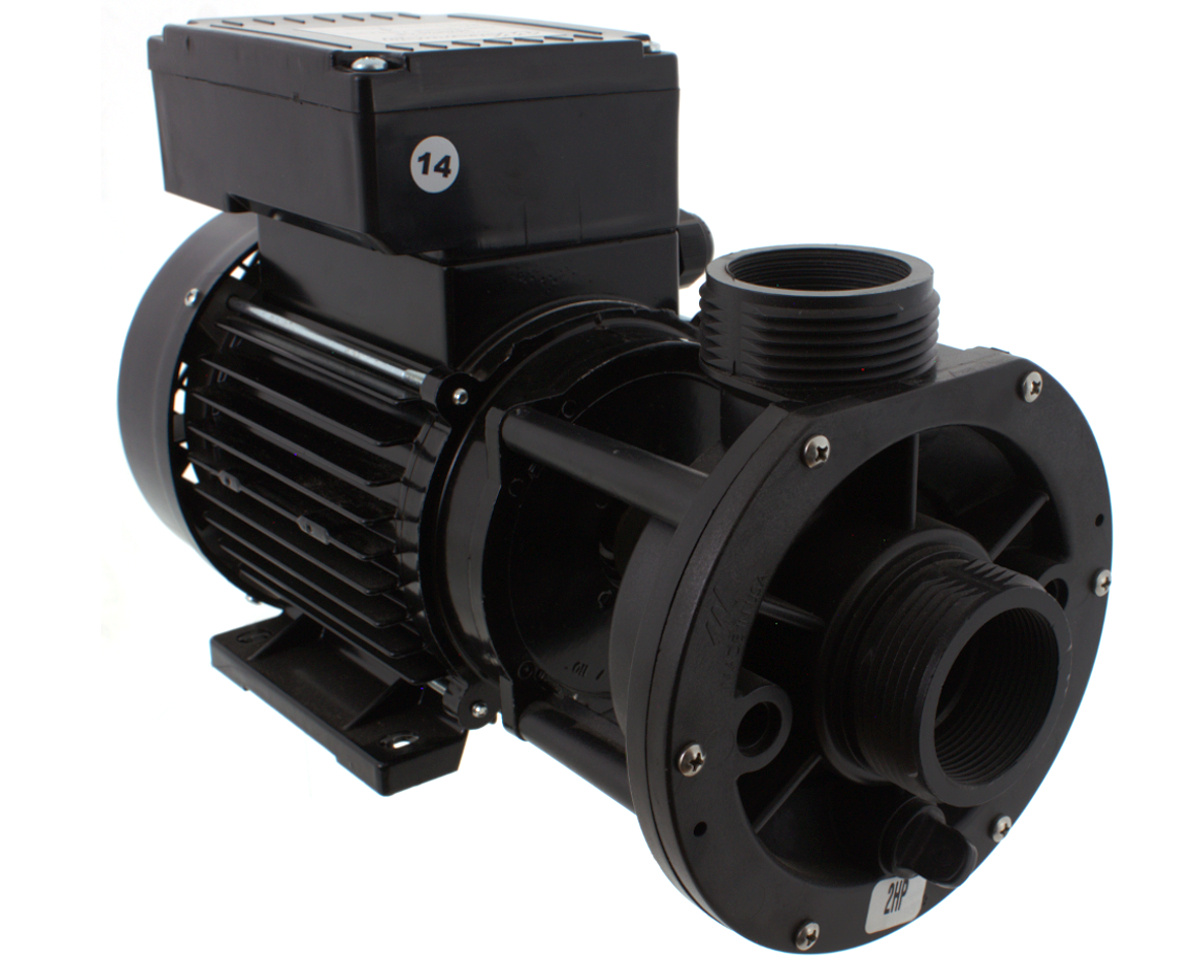

Waterway E-series 2-speed pump

The Waterway E-series pump is compact, reliable and relatively quiet considering its power, and it is used by many major spa brands. This two-speed pump is used for circulation and heating on low speed, and for massage jets on high speed.

It has an EMG Italian-made water-resistant motor and a high-performance wet end.

We also offer a single-speed version of this pump.

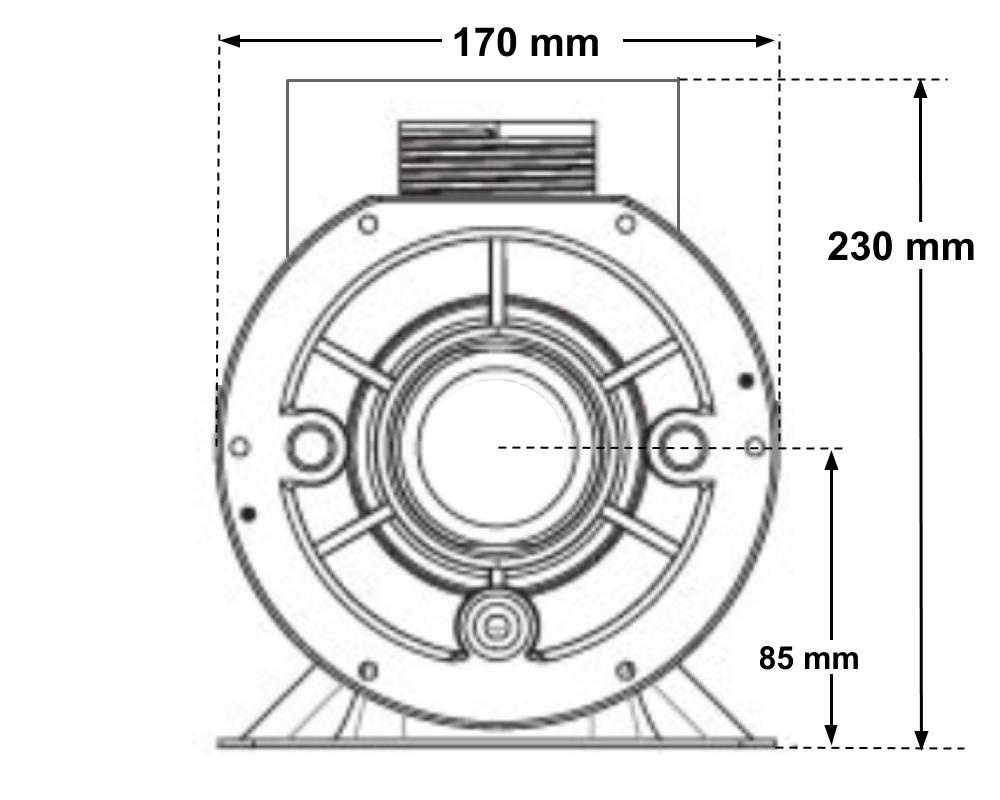

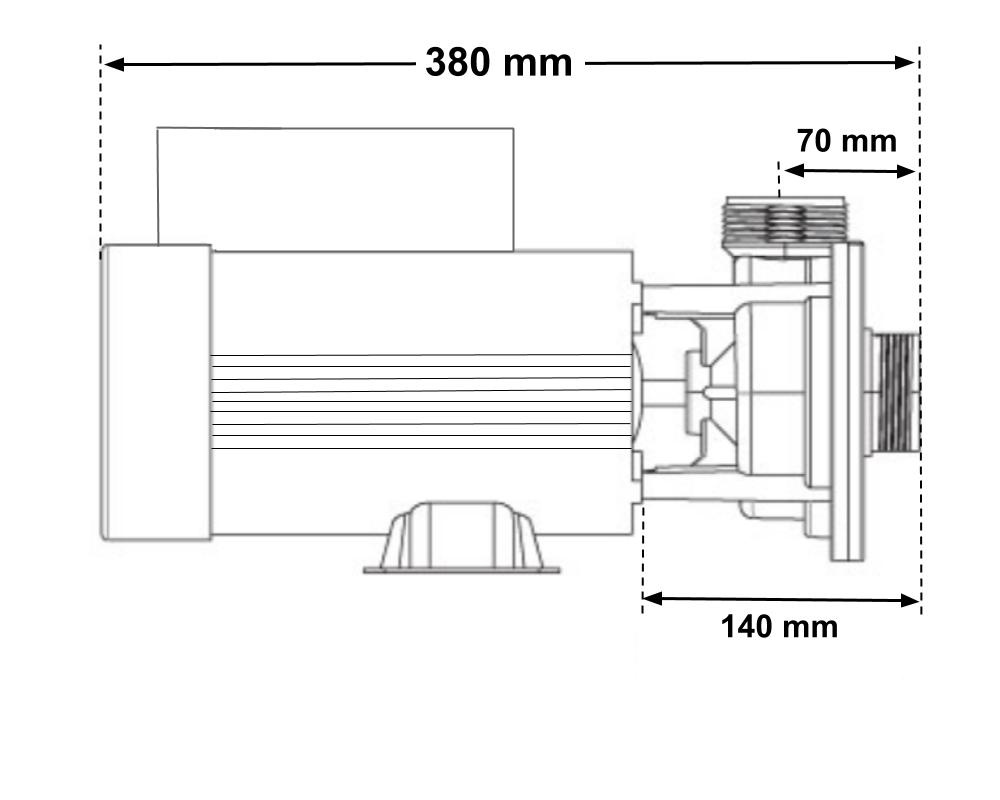

Dimensions
Length: 380 mm
Height: 230 mm
Width: 170 mm

Technical specifications
Power high speed: 1,48 kW (2HP)
Power low speed: 0.44 kW
Current high speed: 6,8 A
Current low speed: 2,2 A

Many Waterway pumps have a sticker on the wet end that indicates a higher power rating (2.0 HP in the case of this pump). Ignore it! Waterway uses the same wet end in conjunction with a more powerful motor for the North American market, and the sticker corresponds to the American version.

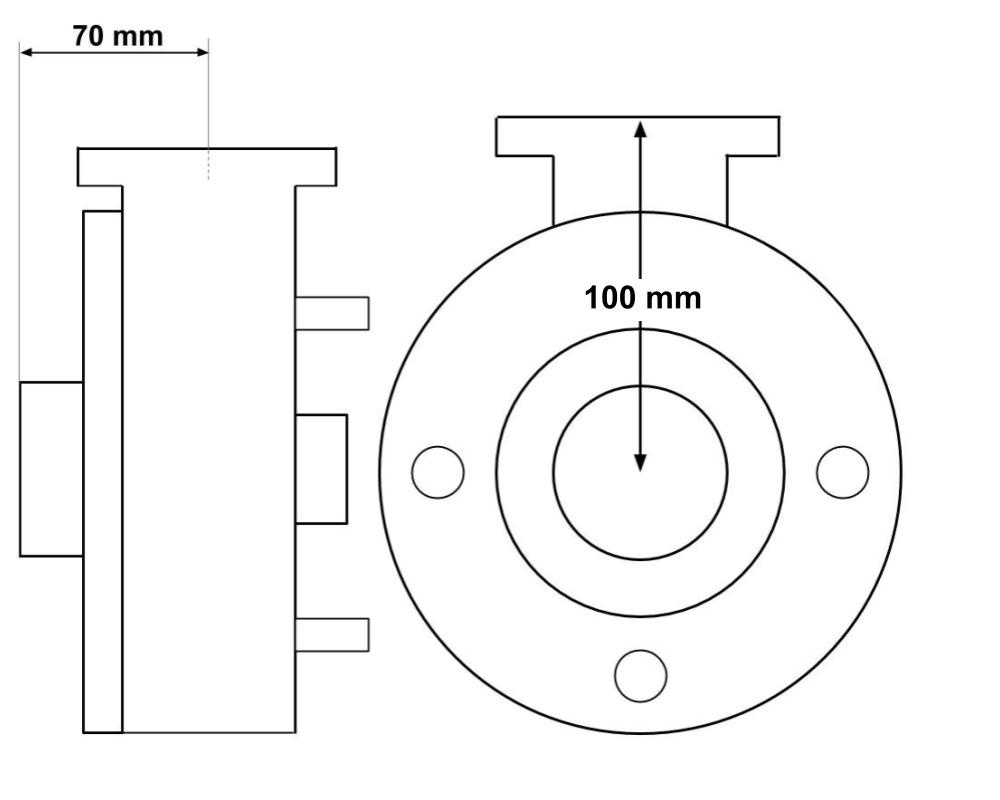

Connections
Suction and Discharge: male threaded fitting with an external diameter of 62 mm, for a connection with a 62 mm ring 1.5-inch outlet or 50 mm outlet, or a 1.5-inch threaded 3-pieces union.

Cable and plug
The Waterway E-series is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug, a mini J&J plug or an in.link plug (100 cm long).

Capacitors
Just in case you need to replace one: 16µF for the low speed and 30µF for the high speed.

Warranty
2-year Tubs Parts warranty

Part numbers
Waterway: 3421621-10CE

Plug types

AMP plug

J&J plug

in.link plug
