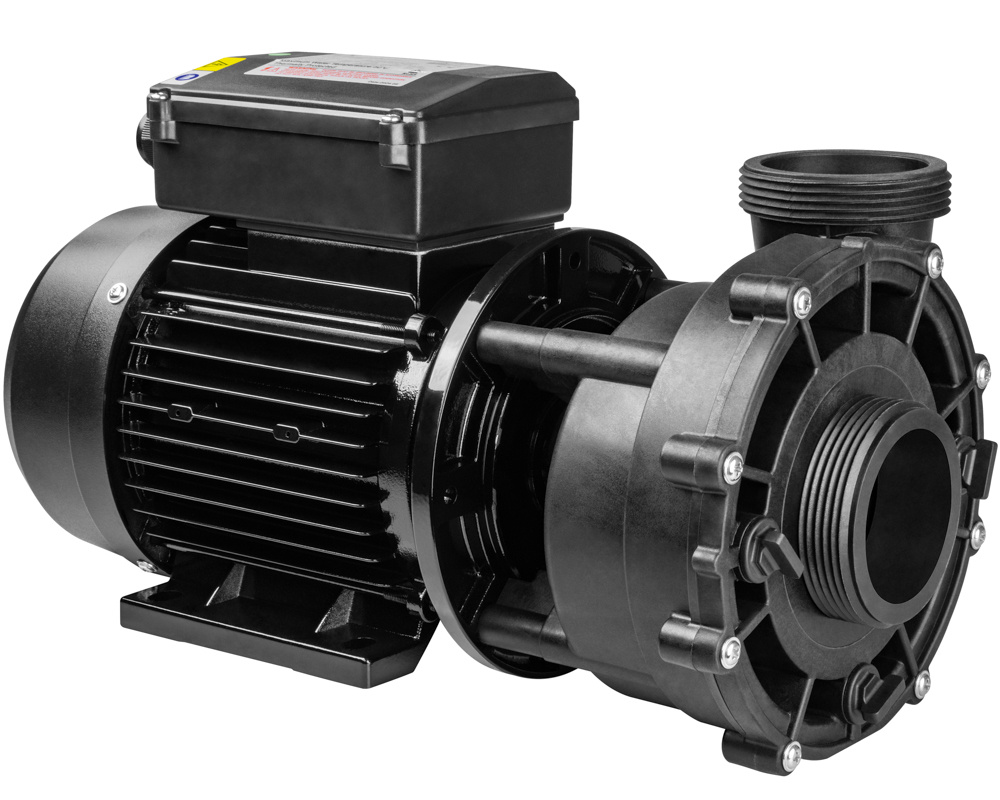

LX Whirlpool LP300 single-speed pump

This powerful single-speed massage pump is used by several hot tub manufacturers.

We also offer versions of this pump with less powerful motors: the LP150, LP200 and LP250.

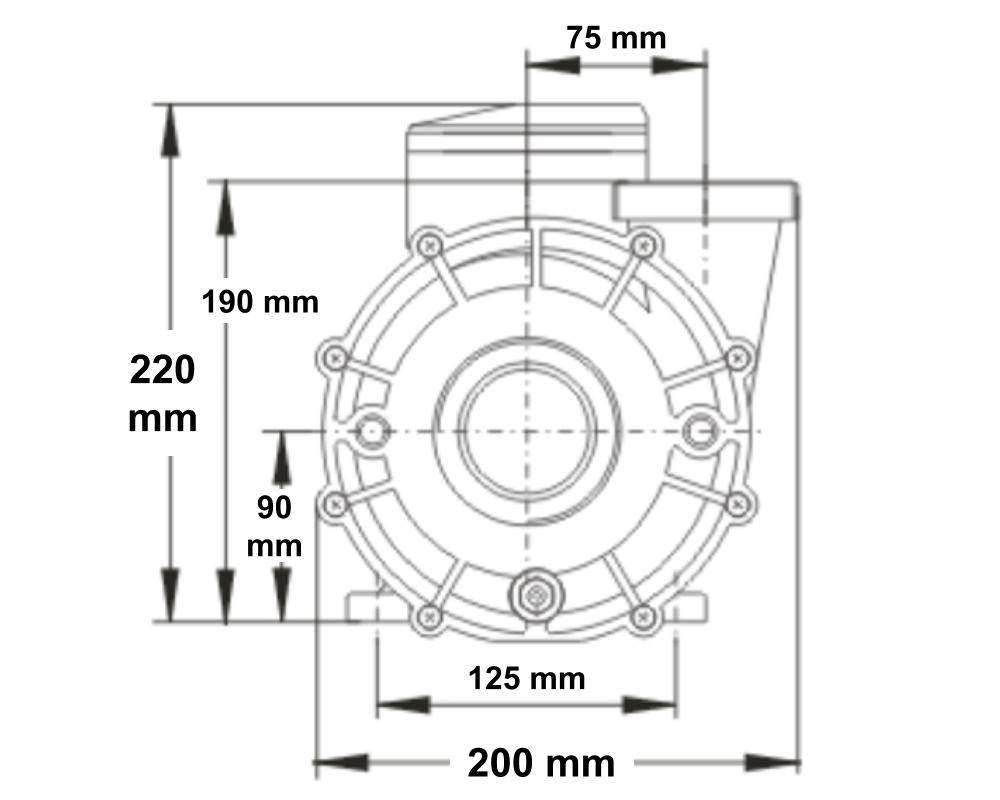

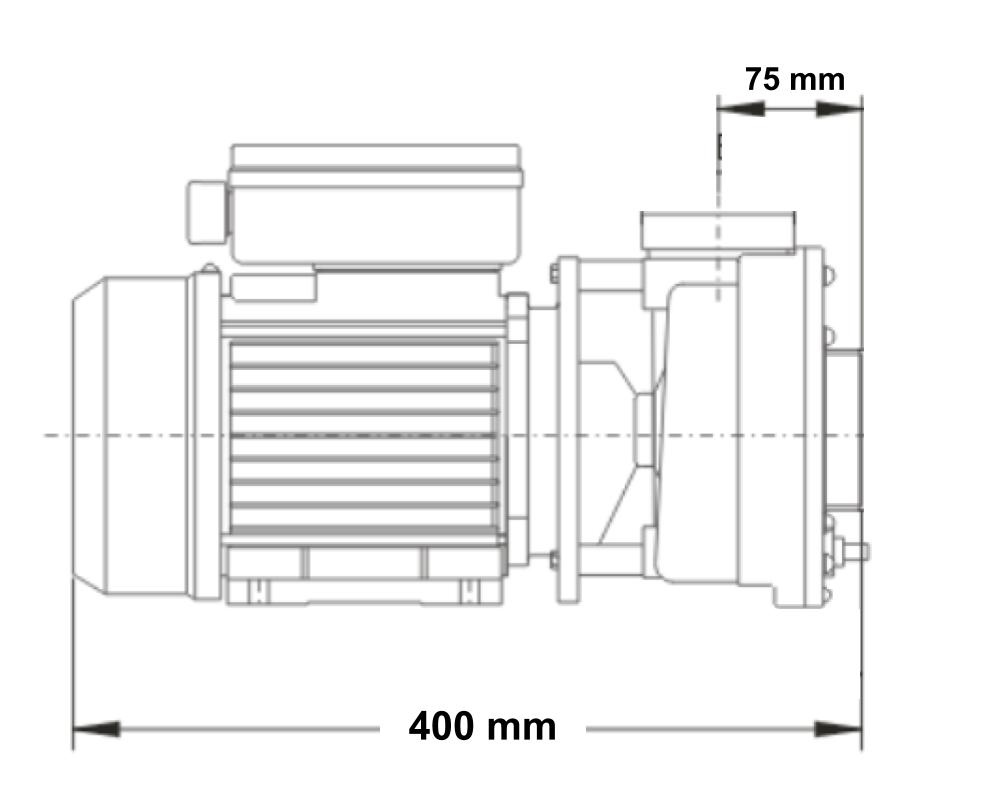

Dimensions (without fittings)
Length: 400 mm
Width: 200 mm
Height: 220 mm

Technical specifications
Power: 2,2 kW (3,0 HP)
Maximum flow rate: 635 litres/minute

The pump comes with unions and o-rings for 2-inch pipes (60 mm diameter).

Cable and plug
The LX Whirlpool LP300 pump is delivered pre-cabled (length 130 cm) with an AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Similar pump

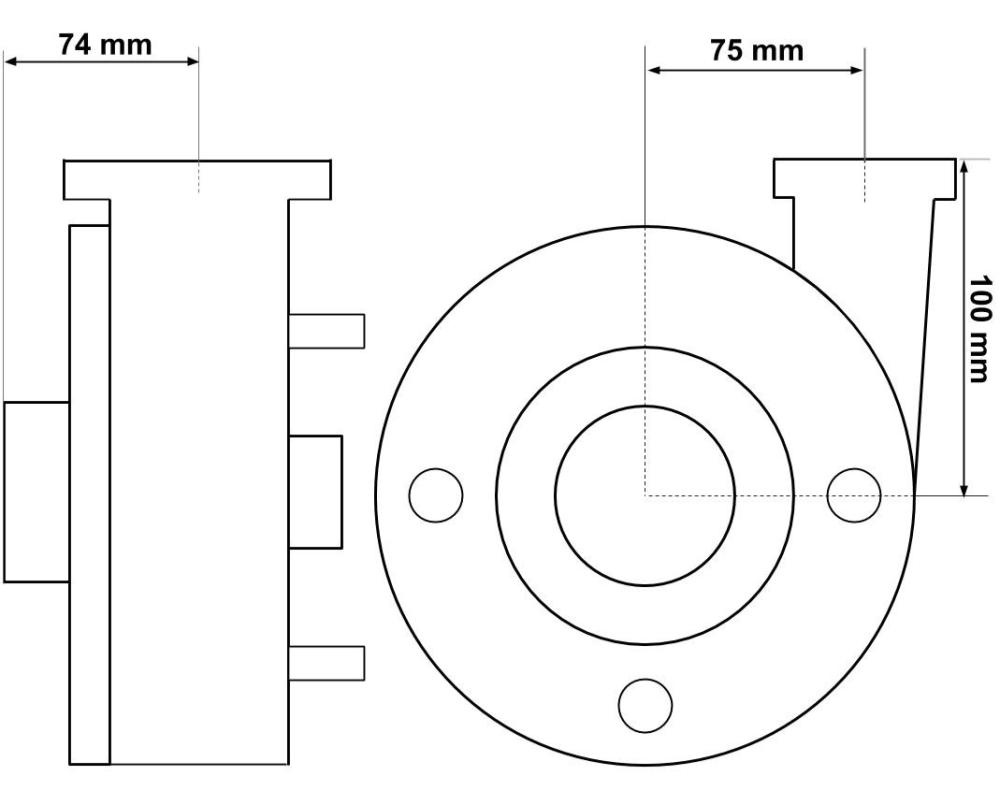

The Koller 3 HP and Waterway Executive pump has the same motor power and thread size as the LP300, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
LX Pump: LP300
Watkins (HotSpring / Caldera): 0977601-03
Wellis: ACM0080
Volition: 30LP ou PL300
Jazzi: JAPU3
