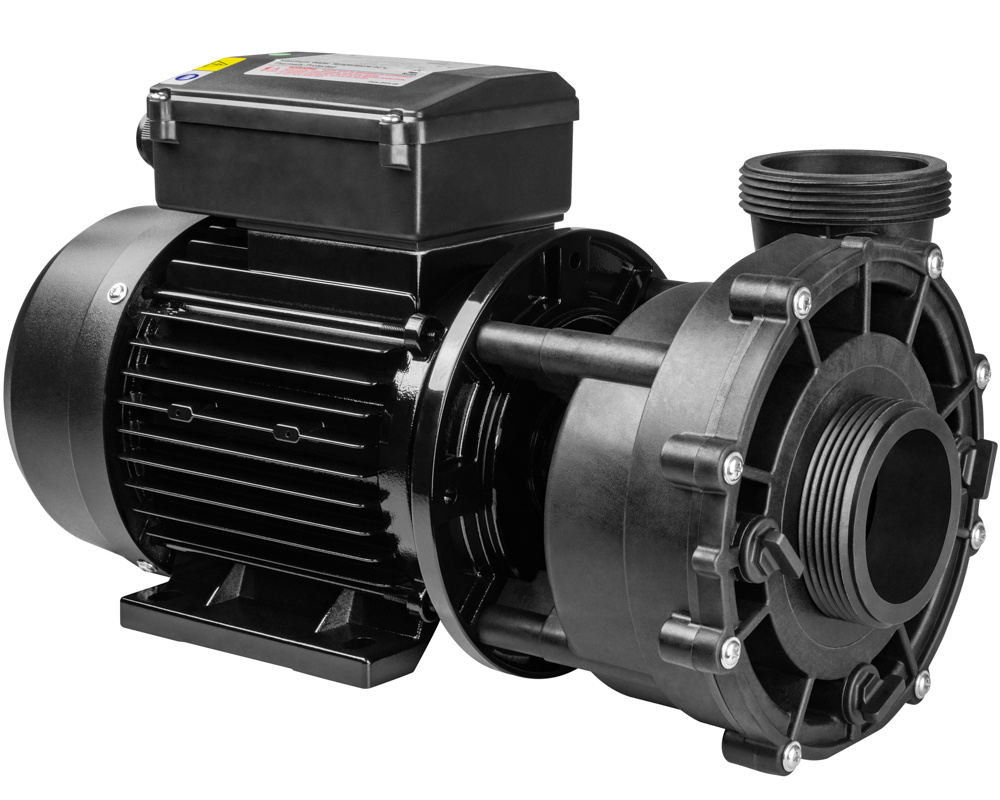

LX Whirlpool LP250 single-speed pump, 2.5HP

The LX Whirlpool LP250 spa pump is frequently installed on the single-speed models of hot tubs manufacturers. It is used for massage jets.

We sell other pumps from the same range, the LP150, LP200 and LP300, with different power ratings.

Dimensions (without fittings)
Length: 385 mm
Width: 200 mm
Height: 220 mm

Technical specifications
Power: 1,9 kW (2,5 HP)
Maximum flow rate: 600 litres/minute

The pump comes with unions and o-rings for 2-inch pipes (60 mm diameter).

Cable and plug
The LX Whirlpool LP250 pump is delivered pre-cabled with an AMP plug.

Installations equipped with a mini J&J plug must select use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Similar pumps
The Koller 2,5 HP, Waterway Executive and Balboa Sta-Rite DuraJet pumps have the same motor power and thread size as the LP250, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
LX Pump: LP250
Watkins (HotSpring / Caldera): 0977601-01
Spanet: XS-30 or XS-30S
