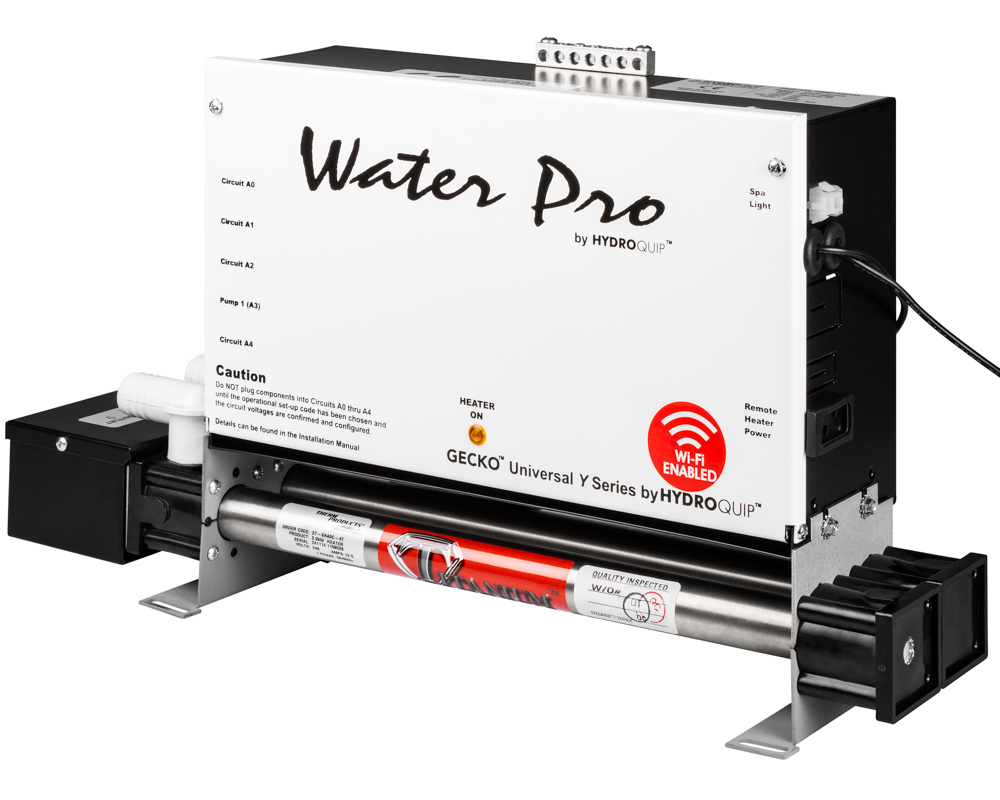

HydroQuip Gecko ye-5 Low-Flow control system + in.k450 keypad

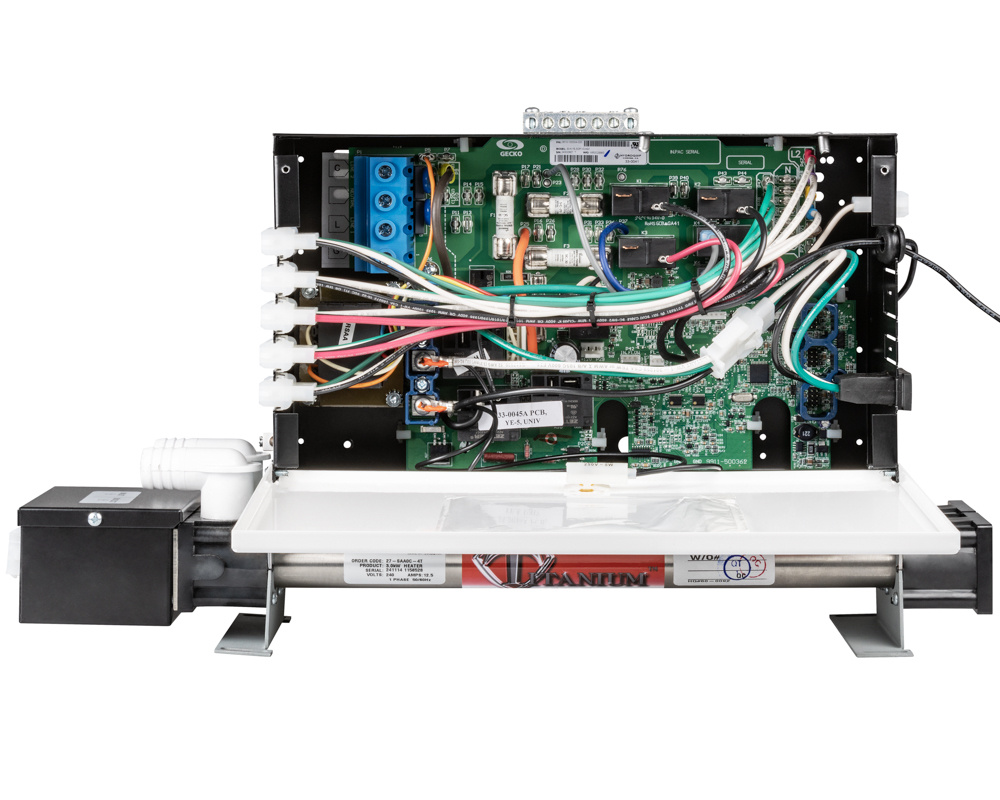

The HydroQuip Water Pro Low-Flow control system and the in.k450 keypad offer all the features of the Gecko in.ye-5 system, with a Gecko circuit board specifically designed to work with mechanical flow sensors.
Easy to install, this system is an ideal replacement for many Low-Flow setups, commonly found in spas from brands such as Dimension One, Saratoga, Watkins, Caldera, and HotSpring. It is also recommended for upgrading outdated control systems, especially in spas equipped with a low-flow Laing circulation pump.
Equipped with a 3 kW Slip Stream heater, the HydroQuip Water Pro Low-Flow system features 5 relays, allowing it to control up to 5 pumps and/or blowers:
- Pump 1 single- or two-speed
- Pump 2 single- or two-speed
- Circulation pump
- 1 blower
- 1 ozonator

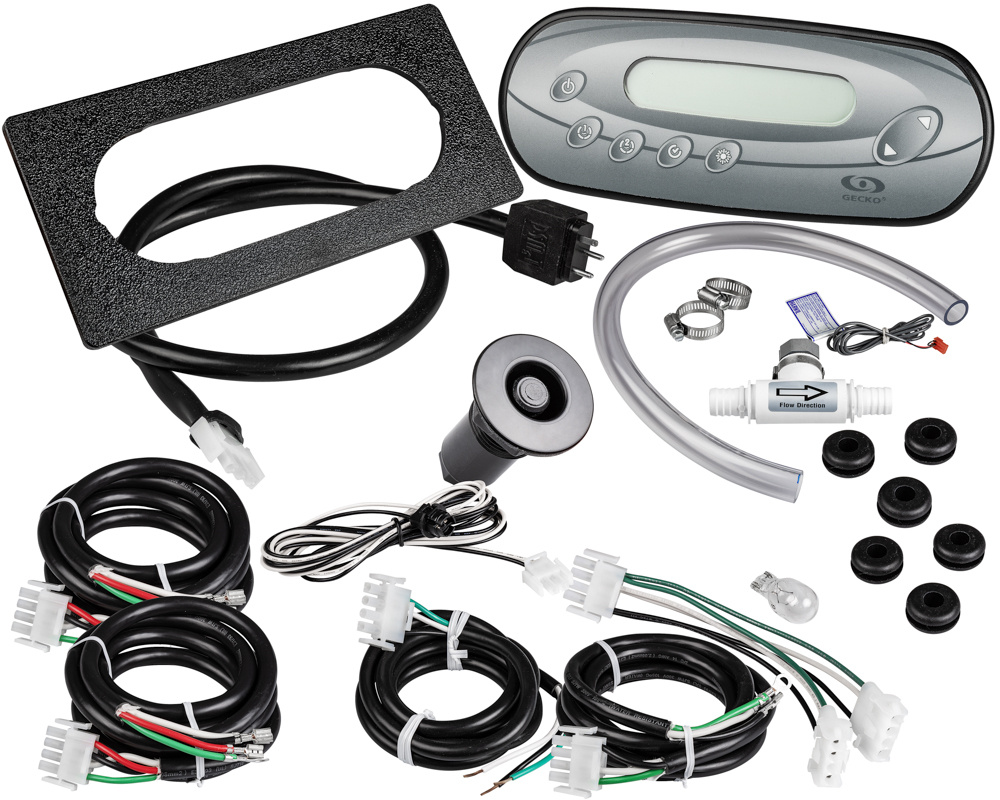

Kit contents
- "Slide Series Low-Flow" control system with 3 kW No-Fault heater
- in.k450 keypad
- Harwil straight flow sensor
- AMP cables and adapters
- Light socket and AMP cable
- 3/4” flexible hose
- Clamps
- Drilling adapter plates (if needed)
For proper and safe installation, it is essential to refer to the detailed user manual provided in PDF format and the wiring diagram, which is located on the back of the control box.
This control system is not designed to be waterproof.
Remote control
By adding the in.touch 2, in.touch 3 or in.touch 3+ WiFi module, you can control your Water Pro Low-Flow system directly from an Android smartphone, iPhone, iPod touch, or iPad.
Technical specifications
Power supply: 230V 50Hz, single-phase only
4 x 230V AC outputs with 4-pin AMP connectors
1 x 12V AC output
Please note: The heater connection located on the right-hand side of the control box has been updated. Originally fitted with a mini J&J connector, it is now equipped with an AMP 3-pin connector by HydroQuip.
Important: For all wiring connections, refer only to the sticker located inside the control box.
Compatible control panels
in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k800, in.k1000, in.k1001
Warranty
2-year Tubs Parts warranty
Part numbers
HydroQuip : CS6P52Y-S-EX-4-3.0
