Harwil Q-12DS-C2 straight flow switch

In stock
99,00€
incl. 20% VAT
Quantity:
Harwil Q-12DS-C2 straight flow switch - Click to enlarge
Harwil Q-12DS-C2 straight flow switch - Click to enlarge
Harwil Q-12DS-C2 straight flow switch - Click to enlarge
Harwil Q-12DS-C2 straight flow switch - Click to enlarge

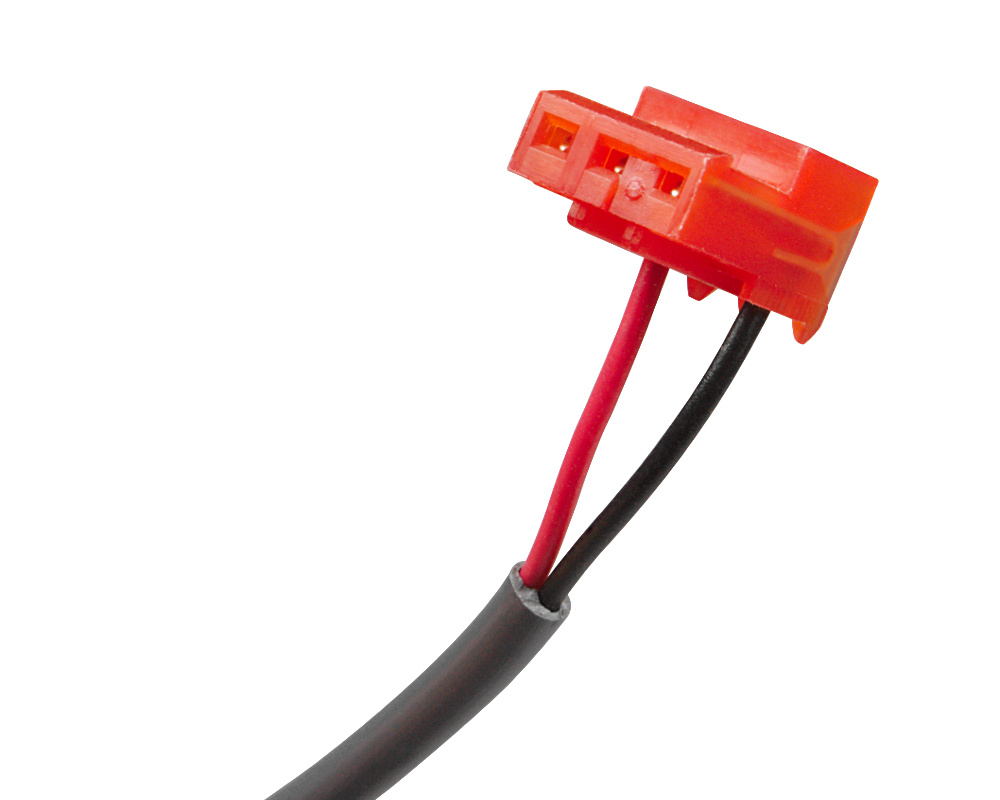

This flow switch is commonly found in Sundance, Jacuzzi, Hot Spring and other spa manufacturers. It comes with a 1-metre cable, with a 3-pin female plug.

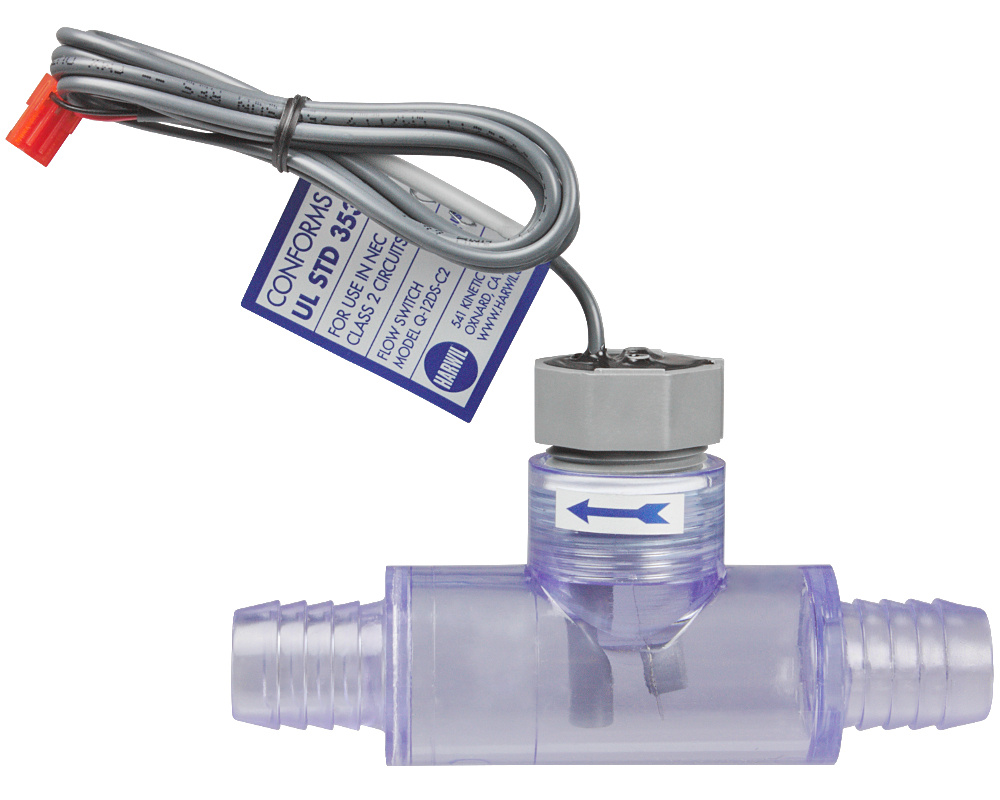

The transparent plastic tee allows you to see the position of the reed switch. It has barbed pipe connections for 3/4" flexible pipe. The same flow switch is also available in a tee, also transparent. The switch is not currently available as a standalone part, without any pipe mounting.

Dimensions
Length: 125 mm
Diameter of the barbed connections: 22 mm
Outside diameter of the thread on the detector: 27 mm

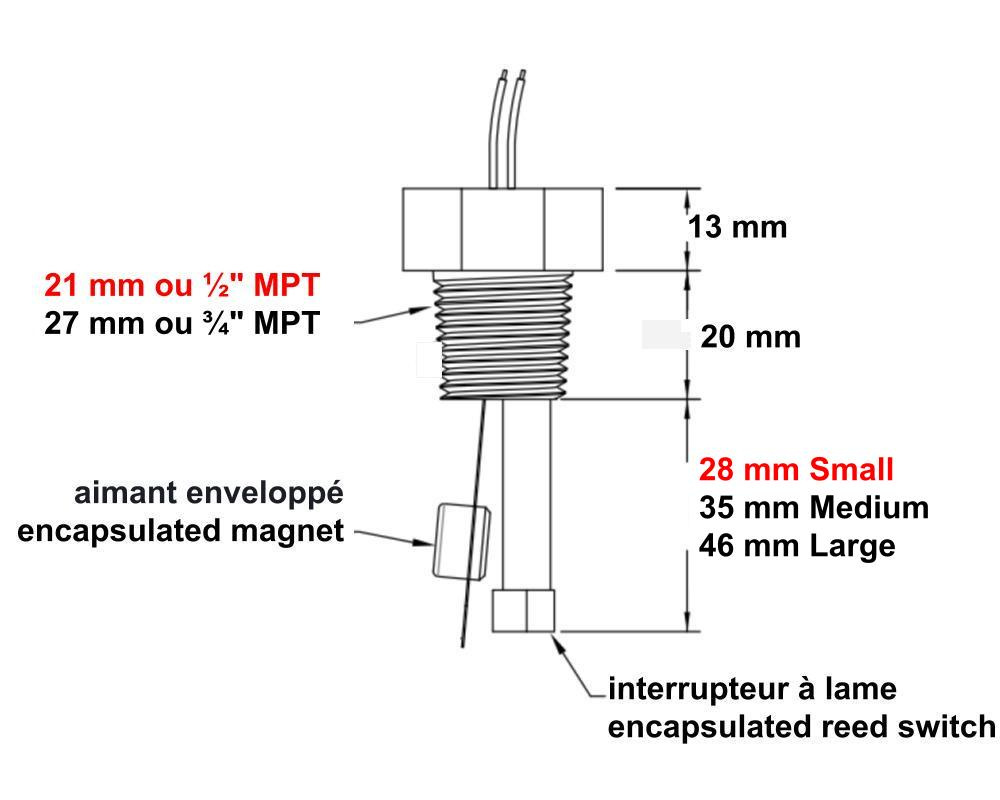

Flow switch dimensions (size "Small", in red on the diagram)
Thread diameter: 21 mm
Body length: 28 mm

References
Harwil (flow switch only): Q-12DS-C2
Harwil (flow switch + tee): Q12DSCSLA
Sundance: 26-455-1002

There are several versions of this Harwil flow switch, all bearing the reference Q-12DS-C, with different thread lengths and sizes (see diagram opposite). This is the "Medium" size, in red on the diagram, which is not compatible with this Harwil flow switch for Astrel heaters (which is in "Large" size), although it has the same reference.
