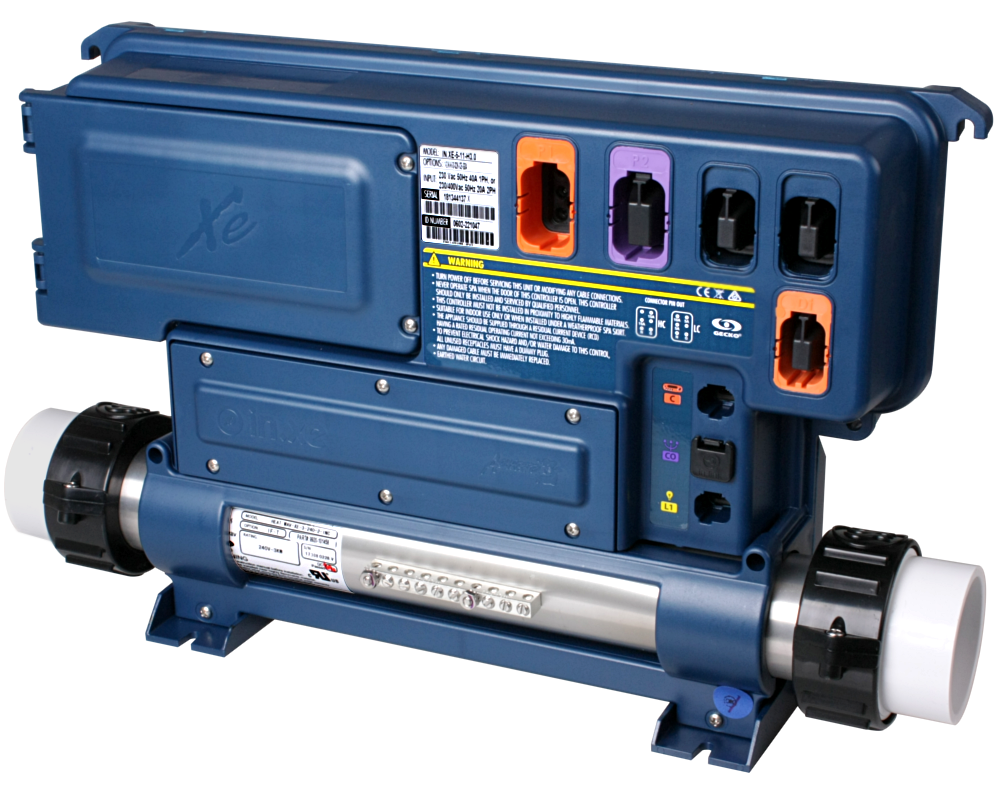

Gecko in.xe control system
In stock
810,00€
incl. 20% VAT
Like in.xm2, its bigger brother, in.xe is sturdy, compact and thin. Its small footprint makes it a perfect fit in any crowded spa equipment compartment. It can be installed on the floor with a bracket securing its position or wall-mounted.

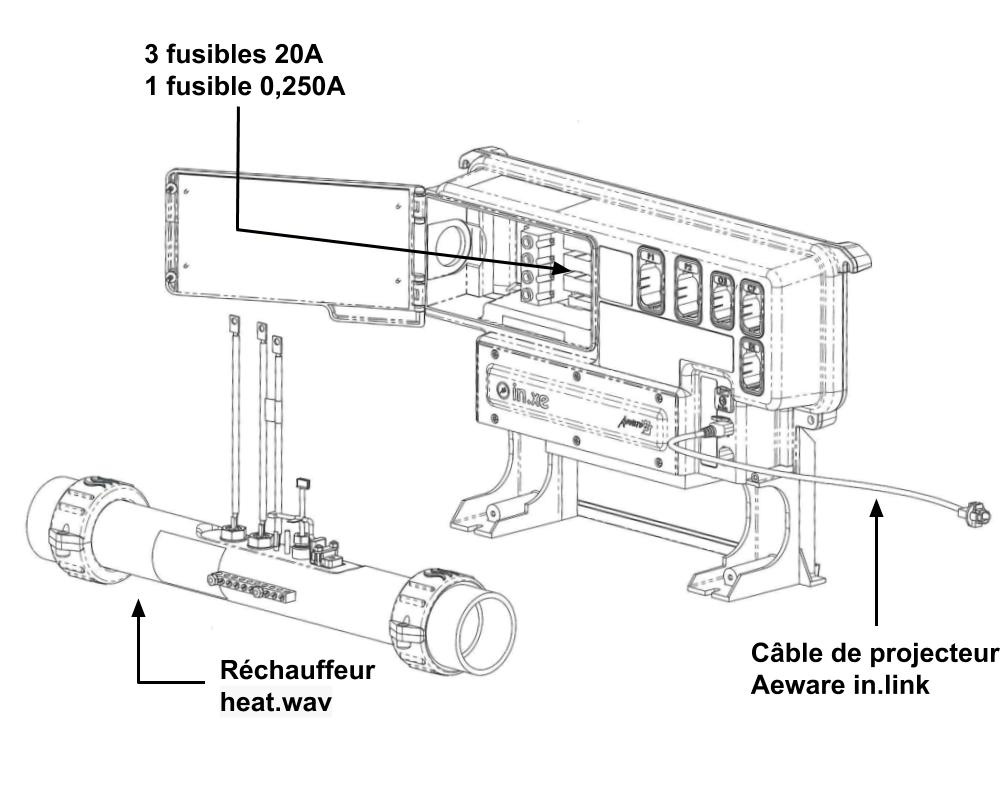

The Gecko in.xe control box with the built-in heat.wav heater has 5 connectors for in.link plugs and manages:
- Pump 1 : a two-speed or a single-speed pump
- Pump 2 : a single-speed pump
- 2 connectors for outputs controlled by independant relays: blower + ozone OR blower + circ pump OR circ pump + ozone
- 1 connector for direct output (for audio or video accessories)
Before purchasing this control system, please ensure that it is compatible with your spa configuration. To check it, click on the "Quick start" document in the documentation section at the bottom of the page. If you cannot find the configuration of your spa among the 13 proposed, we recommend that you switch to the Y series by choosing either the model in.ye-5 or the model in.yt-7. It will be necessary to replace the existing sockets with 4-pin AMP sockets. If you have any questions, please do not hesitate to contact us.
It also has a main keypad connector and a communication link (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2).
Tubs Parts recommends the in.xe as a replacement for spas that are already using this box. If you are looking for a system to build a new spa or to refurbish an old one, we recommend the Y series, as it will gradually replace the X series, which is about to be discontinued.

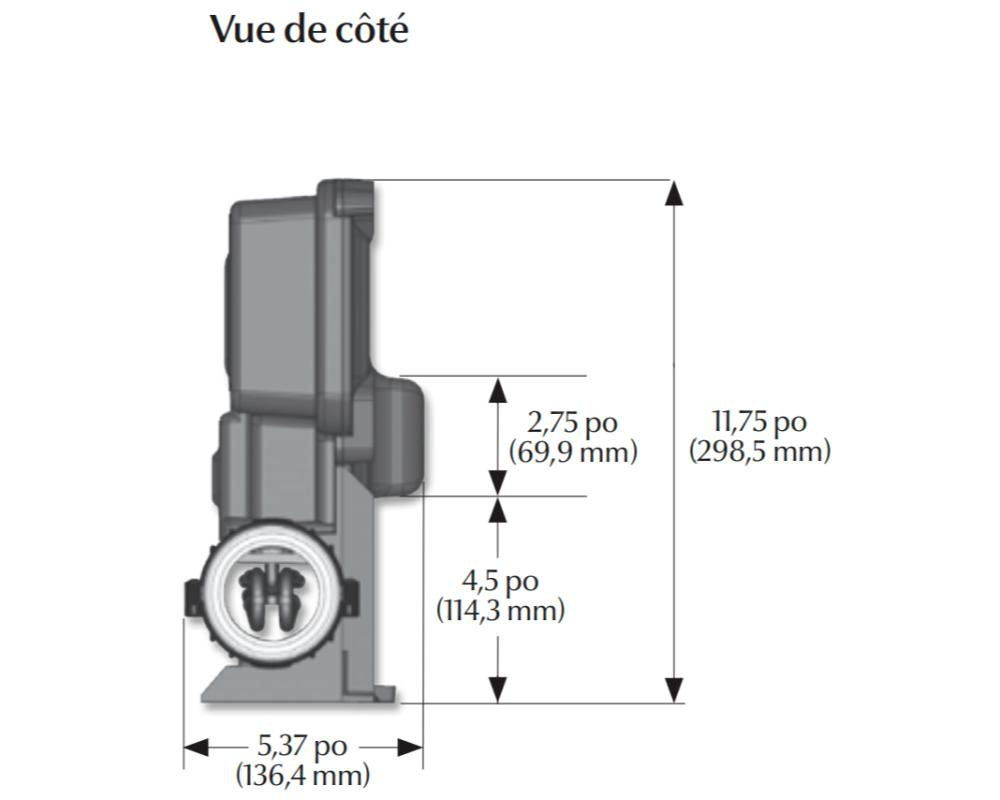

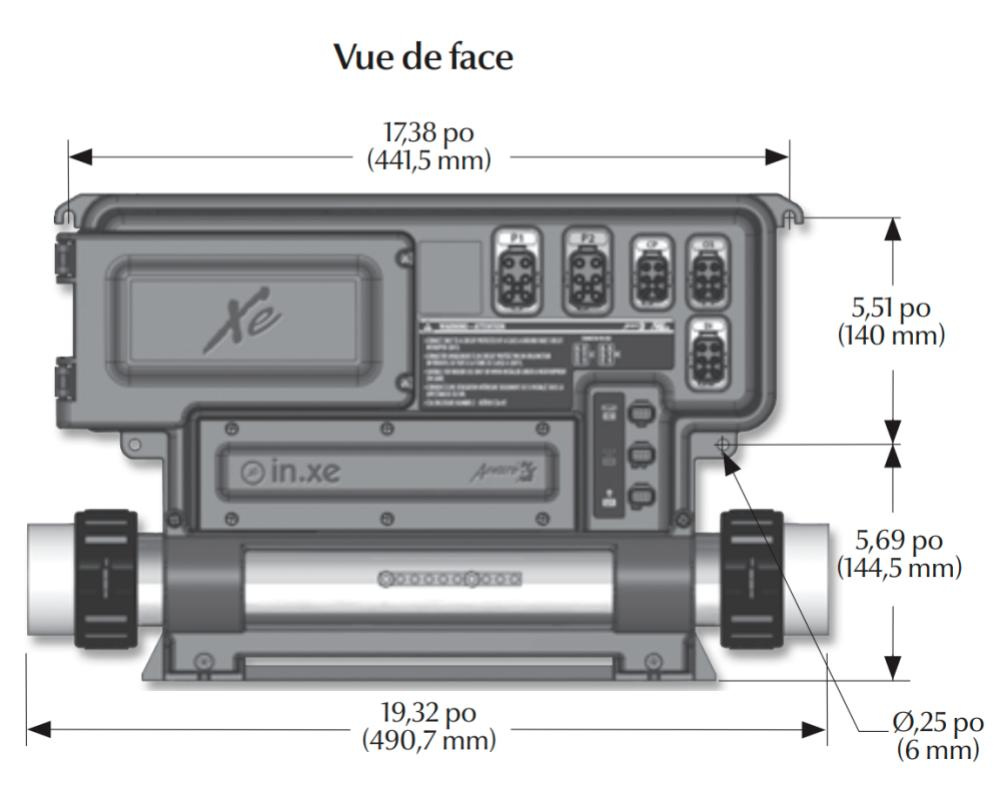

Dimensions
Box width: 442 mm
Max. width with connections: 491 mm
Height: 299 mm
Depth: 136 mm
Compatible with the following keypads
Main: in.k8, in.k35, in.k200, in.k450, in.k500, in.k600 (the simplified interface only), in.k800, in.k1000, in.k1001
Auxiliary: in.k120
Warranty
2-year Tubs Parts warranty
Part numbers
Gecko: 0602-221047
Documentation
