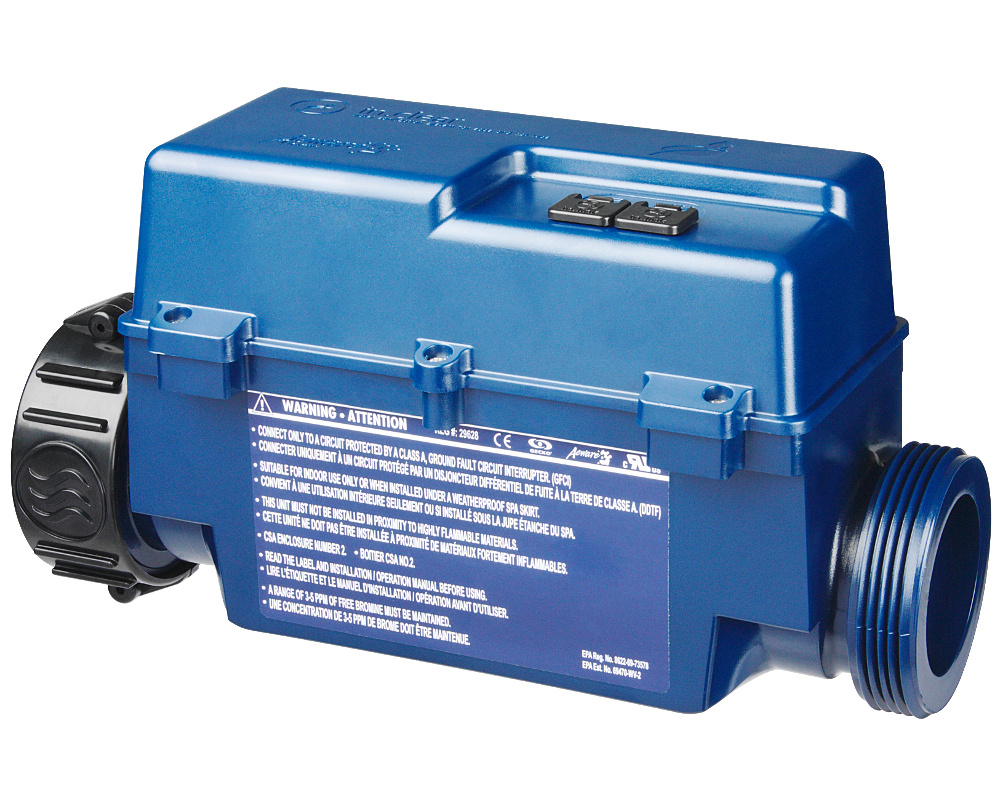

Gecko in.clear water sanitization system

in.clear from Gecko is a disinfection system that generates and releases bromine into the water, any microbiological contaminants such as waterborne bacteria, algae, and organic matter given off by hot tub users while reducing the use of chemicals. Bromine has the advantage of being active for several days in a clean spa, relatively insensitive to pH and having little or no odour.

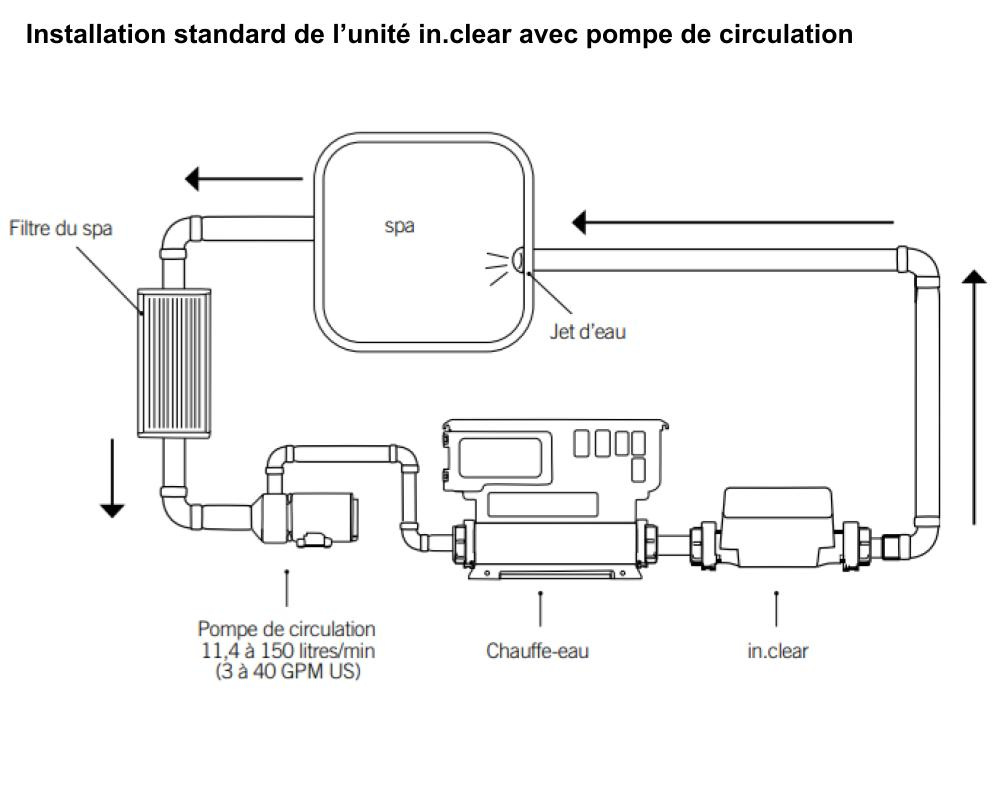

The automatic bromine generator in.clear is easy to install and use: program your personal settings and adjust the bromine salt concentration directly on your keyboard. Then simply add the required amount of sodium bromide BromiCharge to your spa water. The salt water then flows through the cell of the in.clear Bromine Generator, a low voltage source that converts the salt into free bromine.

in.clear is pre-installed on some spas with a Gecko control box, and can be easily installed on new or existing spas, even those not equipped with a Gecko control system. Please note that in this case you will need to purchase the in.k200 keypad in order to be able to manage the in.clear.

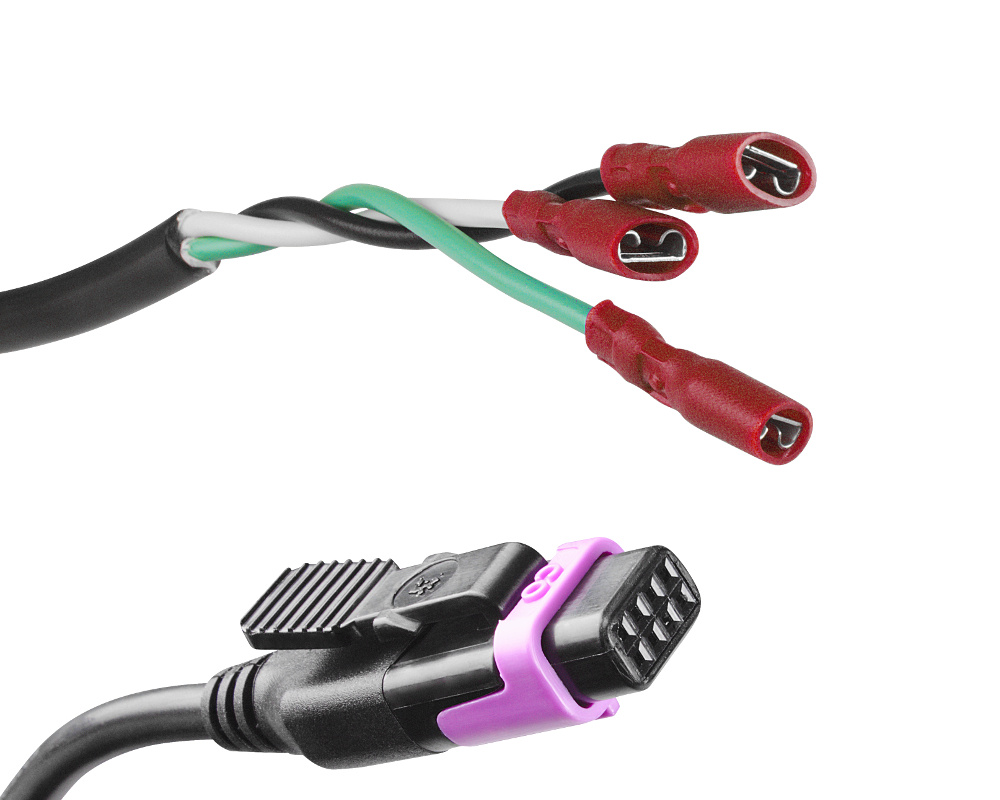

Gecko's in.clear is available in two versions:

• Pre-cabled with in.link, compatible with Gecko's X series systems, like the in.xm2 and in.xe
• Pre-cabled with Quick connect (3 flat female connectors), compatible with Gecko's Y series systems (in.yj-3 and in.ye-5) and any control that support Quick connect tabs.

Compatible keyboards
On spas with a Gecko system, the in.clear system is used with the compatible main keyboard: in.k500, in.k800, in.k1000 or in.k1001.
Stand alone versions of the in.clear system must be used with the dedicated in.k200 keypad.

System dimensions
Height: 155 mm
Total width: 277 mm
Thickness: 120 mm

Connections
Male threaded connectors with an outside diameter of 78 mm (type 2" MBT).
The in.clear system is delivered without unions. We offer 2-inch and 1.5-inch fittings if required. A connection to a to 3/4-inch tubing is also possible with the union which includes a reducer.

Technical specifications
in.clear can treat up to 2000 litres of water.
The expected lifetime of the electrodes is 30.000h when used in normal operating conditions.

Dosing of BromiCharge
Add 0.143kg of sodium bromide BromiCharge per 100 litres of water. Example, if your spa holds 1200L of water, add 1.72kg of sodium bromide (12 X 0.143kg).

Gecko part numbers
in.link version: 0605-500008
Quick Connect version: 0605-500010
