Balboa TP700 control panel

The TP700 keypad is compatible with Balboa's BP control systems with software version 7.0 or later: the BP200G1, BP200UX, BP6013G1, BP6013G2, BP6013G3, BP2000 and BP2100G1.

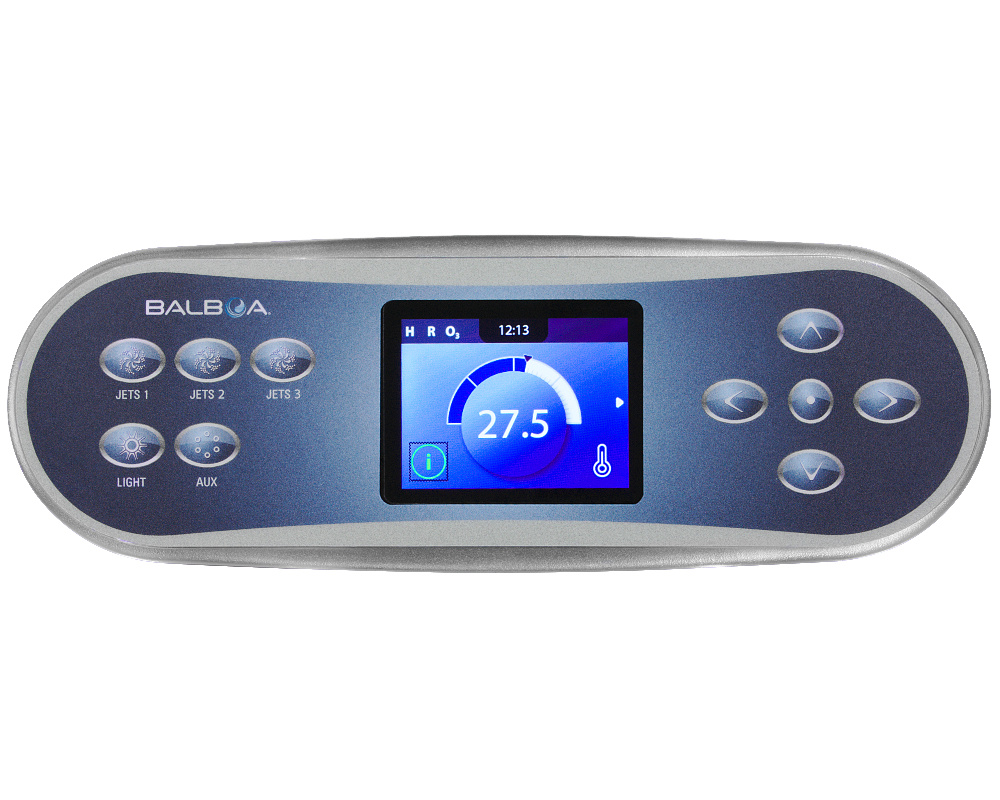

The keypad is available in two configurations:

• with 9 keys : Jets 1, Jets 2, Light and Aux buttons on the the left hand side, plus 4 navigation buttons and a select button
• with 10 keys : Jets 1, Jets 2, Jets 3, Light and Aux buttons on the the left hand side, plus 4 navigation buttons and a select button

This keyboard is supplied with its overlay.

The 9-key version replaces the TP800 which is no longer manufactured. Both models have the same dimensions.

Dimensions
Keypad : 254 x 89 mm
Cut out area : 225 x 60 mm

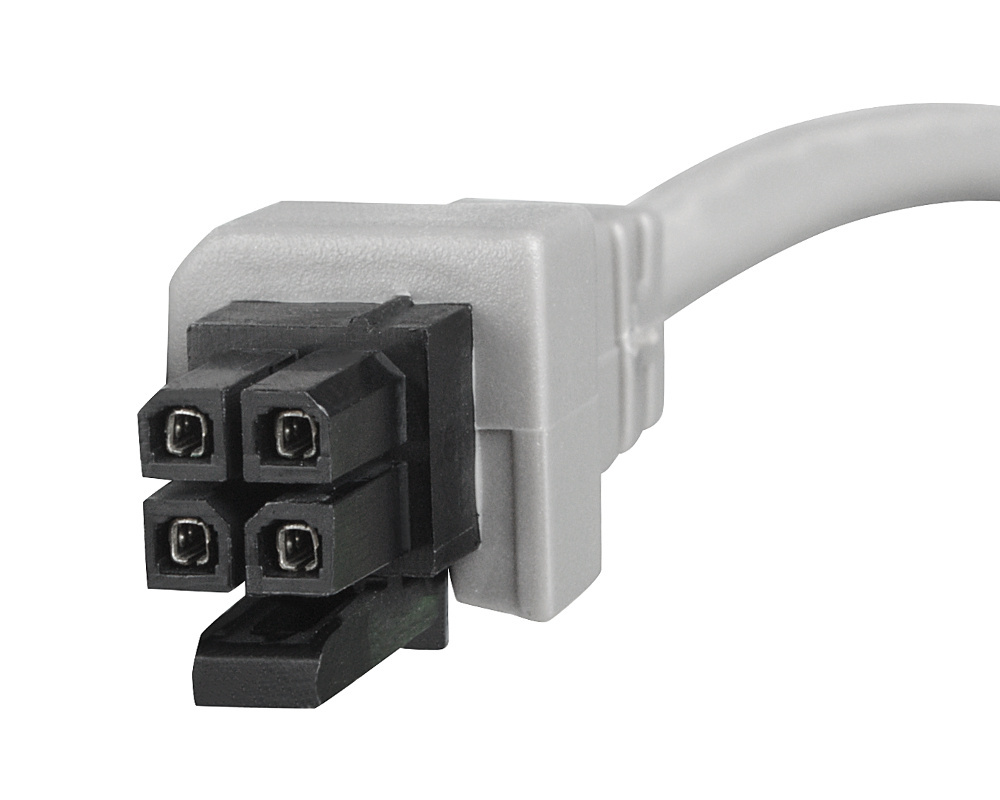

See the photo for the type of plug.

Balboa part numbers
9-button : 57279 (Overlay : 17382)
10-button : 57280 (Overlay : 17381)
