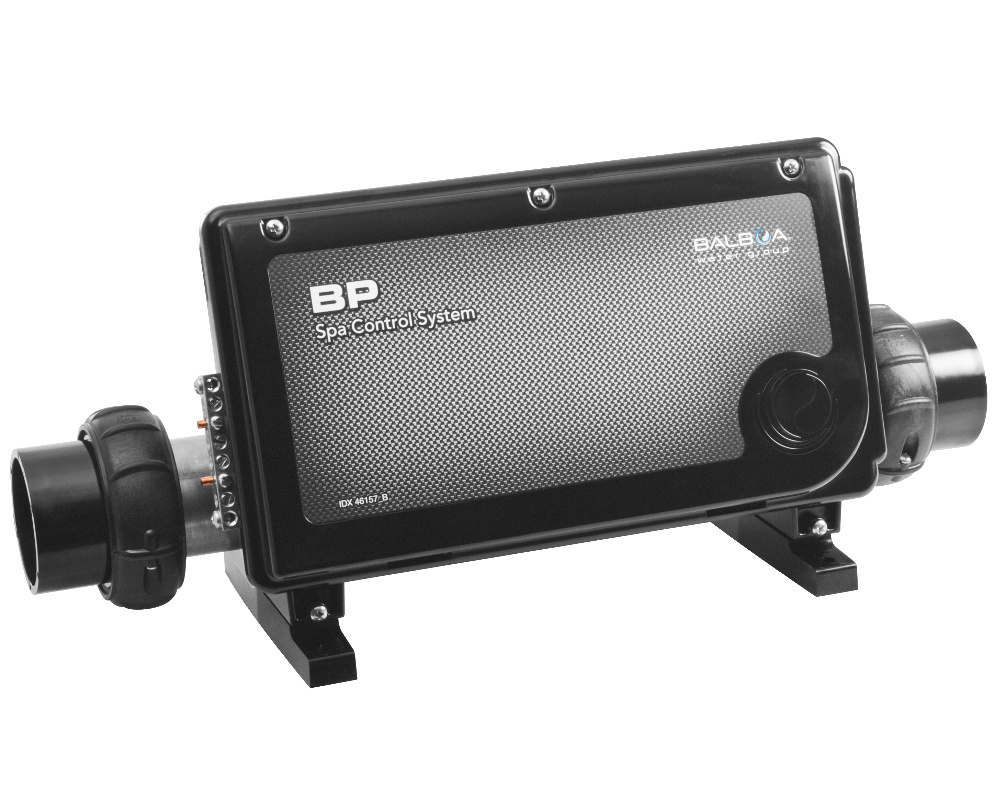

Balboa BP200 G1 control system
The compact BP200 G1 control system is also ideal for smaller spas and/or if you want to control only a few elements.
In addition to its built-in 3 kW heater, the control system can manage the following equipment:
- A two-speed pump or a circulation pump
- A single-speed massage pump
- An ozonator
- Underwater lighting
- Sound system
The BP200 G1 uses the latest version of Balboa's famously-reliable M7 system, and works with all of Balboa’s TP and SpaTouch 1 & 2 panels. It is also compatible with the Wi-Fi module that allows you to control your hot tub from your Android or iOS smartphone.
The M7 technology eliminates pressure switches or flow switches and uses Balboa M7 temperature sensors.
Dimensions
Height: 211 mm
Width of box: 321 mm
Width of heater: 385 mm, excluding the unions
Depth: 161 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)
Compatible keypads
TP200T, TP200W, TP260T, TP260W, TP400W, TP400T, TP600, TP800, TP900, spaTouch square, oval or trapezoid
The BP200 is not compatible with auxiliary keypads, that do not have a screen.
Power supply
The BP200 G1 system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Balboa part numbers
3 kW system : 59190
2 kW system : 59192
Heater : 58419
