Balboa 3 kW M7 Plug N'Click heater

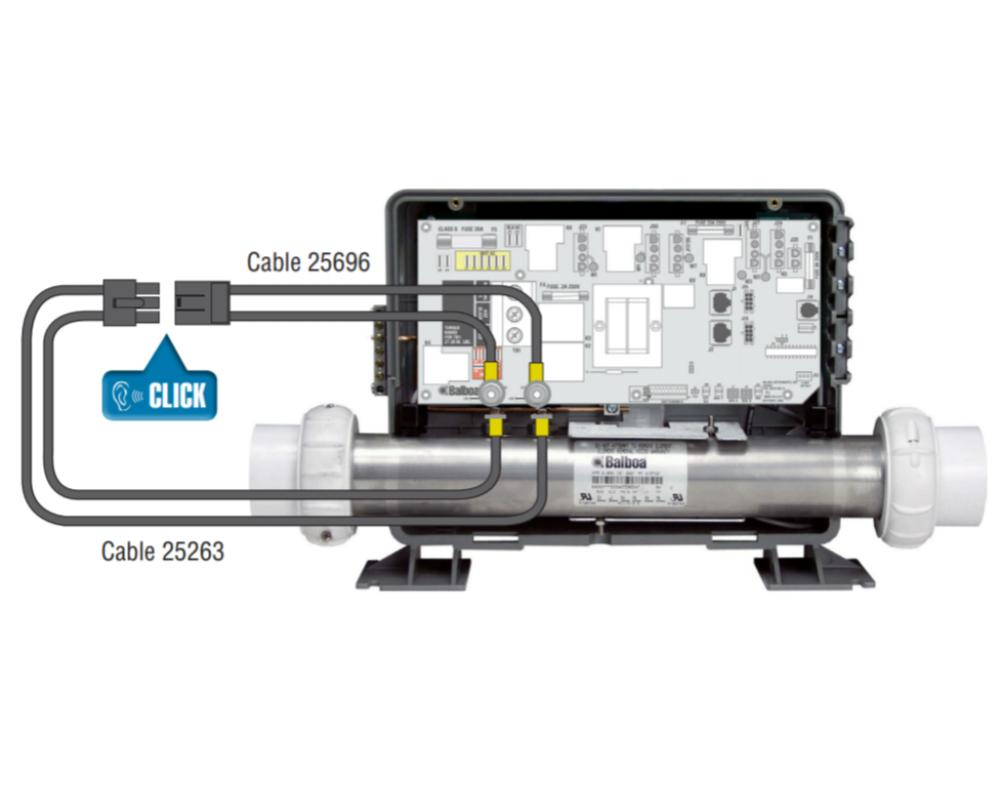

The Balboa 3 kW M7 heater is wired with a Plug N'Click socket that plugs directly into the motherboard of many Balboa BP control systems, including the BP600, BP6013G1, BP6013G2, BP6013G3 and BP2100. To connect this heater to other models of Balboa control system (including the BP200 G1 and UX), you will need a separate adapter cable, to connect the Plug N'Click socket to the motherboard terminal blocks.
This heater features M7 technology, which checks the water flow using two temperature sensors inside the heater itself. This system is much more reliable than conventional pressure switches and flow sensors. M7 heaters require a minimum water flow of 75 litres/minute (4.5 m³/hour).
The heater is fitted with a resistor made of Incoloy, a nickel-iron-chromium alloy offering excellent resistance to oxidation and corrosion, which is suitable for the vast majority of applications.
Dimensions
Heater length without unions: 381 mm
Total length with unions: 495 mm
Internal diameter of fittings: 60 mm, for 2-inch pipes
Fitting
The heater is supplied with its two clamping rings and seals. In the event of replacement, don't forget to add the fittings for 2-inch hoses, the most standard size, if necessary. 1272 fittings] for 1.5-inch hoses are also available.
Warranty
2 years, provided directly by Tubs Parts
References
Balboa : 58279, 58107
