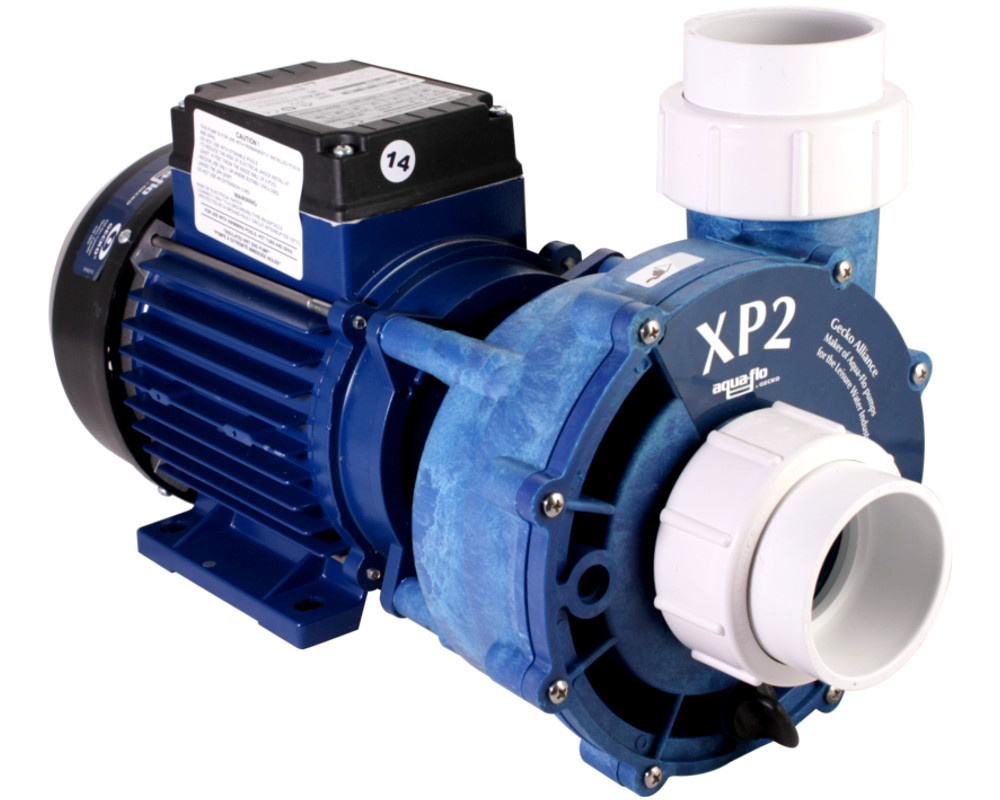

Aqua-Flo Flo-Master XP2 single-speed pump

In stock
429,00€
incl. 20% VAT
Power

Options
Quantity:
Aqua-Flo Flo-Master XP2 single-speed pump - Click to enlarge
Aqua-Flo Flo-Master XP2 single-speed pump - Click to enlarge
Aqua-Flo Flo-Master XP2 single-speed pump - Click to enlarge
Aqua-Flo Flo-Master XP2 single-speed pump - Click to enlarge
Aqua-Flo Flo-Master XP2 single-speed pump - Click to enlarge

The Aqua-Flo Flo-Master XP2 pump (also sold under the Gecko brand) is perfect for powering massage jets on all types of spas. The XP2 has similar dimensions to its XP2e 3 HP sister model, but be careful of the height if there isn't a lot of space.

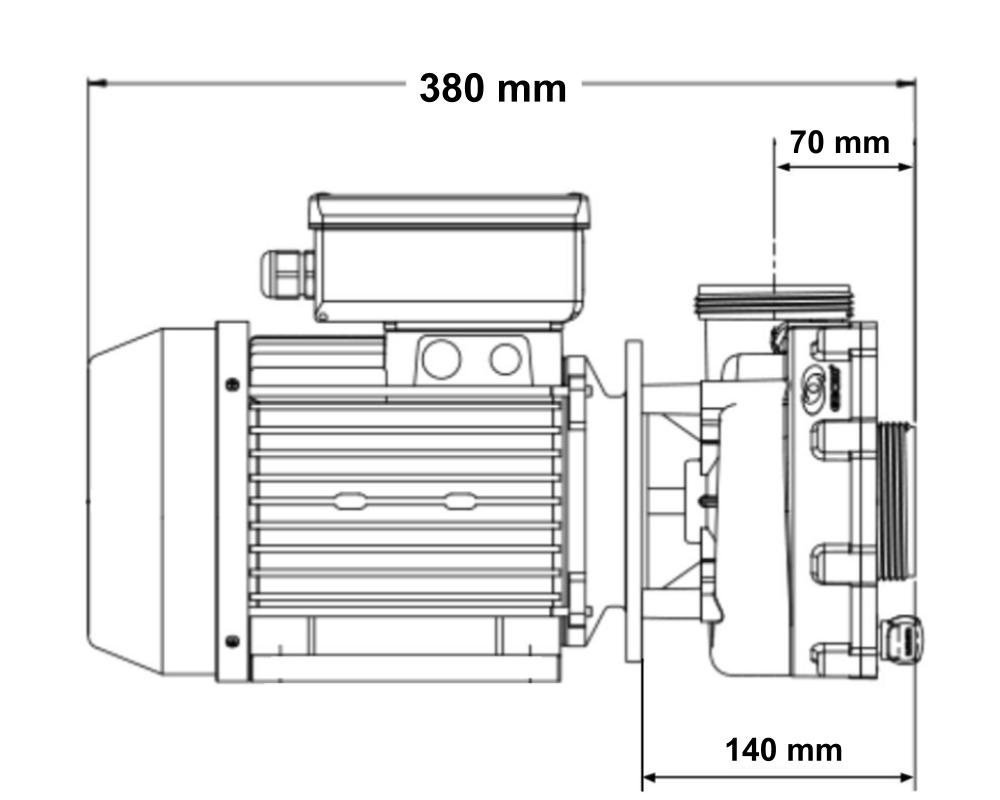

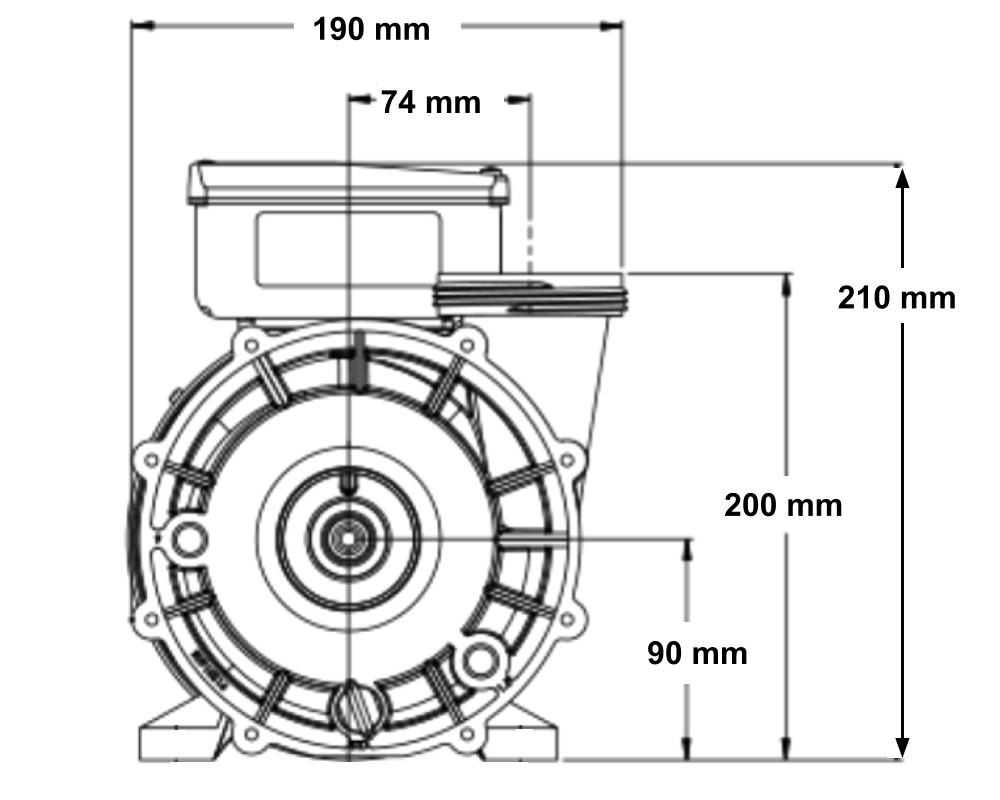

Dimensions
Length: 380 mm
Width: 190 mm
Height: 210 mm

Technical specifications
This Aqua-Flo Flo-Master XP2 pump is available in two power ratings:

  • Power 1,5kW (2 HP) / Current: 6,7 A
  • Power 1,8kW (2.5 HP) / Current: 8 A

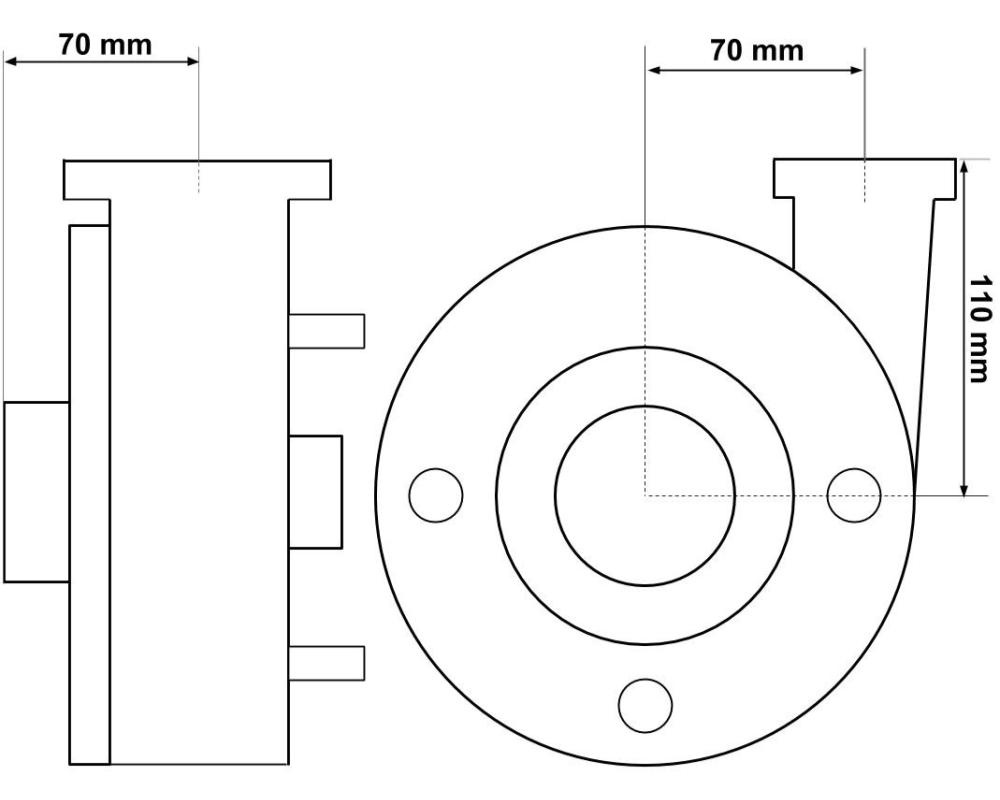

Pipe connections
Male thread (2-inch MBT) with a 78 mm outside diameter.
This pump is supplied with pump unions for 2-inch pipes. You can also choose pump unions for 1.5-inch pipes or 63 mm pipes.

Cable and plug
The Aqua-Flo Flo-Master XP2 pump is delivered pre-cabled with an AMP plug (length 210 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Spare parts
We offer some spare parts for this pump: the wet end, faceplate, wet end seal, impeller and wear ring, among others.

Warranty
2-year Tubs Parts warranty

Gecko / Aqua-Flo part numbers
1,5 kW (2 HP): 07030003-6040
1,8 kW (2,5 HP): 07044000-6040
3 kW (3 HP): 05253000-6040
Marquis Spa: 630-6119 (2 HP)
The XP2 is a good option to replace several different older models, including some Theramax pumps. Use the 2HP version to replace a Theramax 06020841-6 on Sundance Spas, for example.

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to right

Exit to right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
