Aqua-Flo Flo-Master XP2 impeller

This impeller is used in the Aqua-Flo XP2 and Circ-Master XP (only the 2.5 HP version for this pump) wet ends.

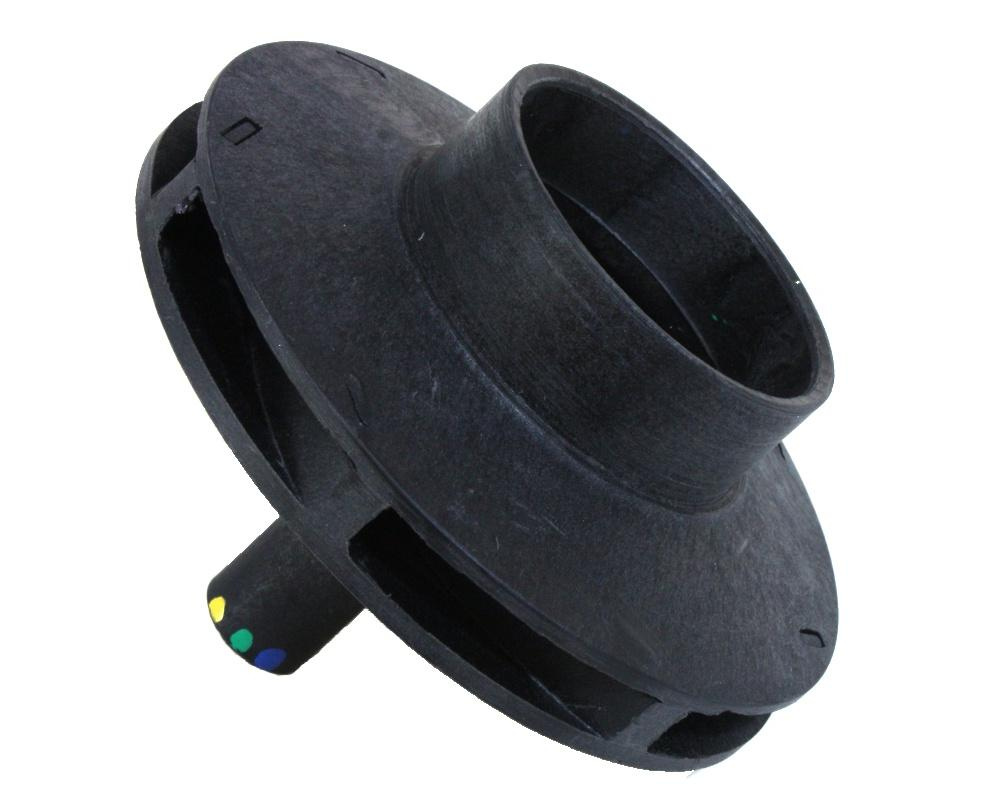

There are four versions available. You can usually tell which is which by the small colored dots on the shaft of the impeller.

We strongly suggest that you replace the wet end seal at the same time as the impeller.

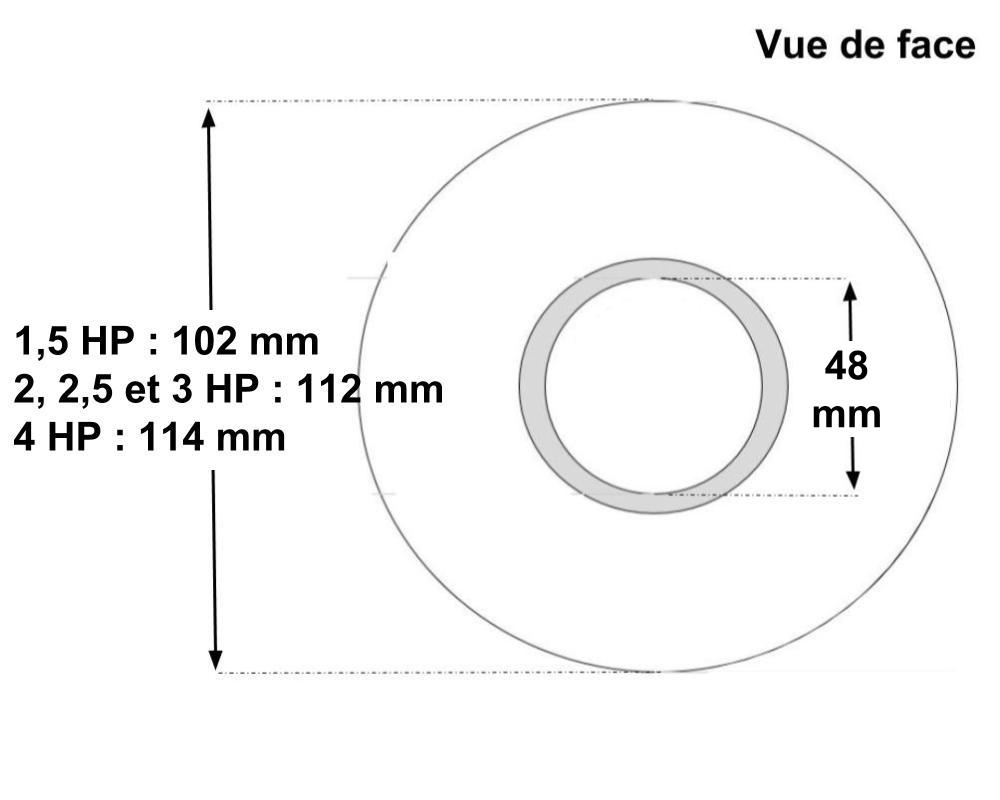

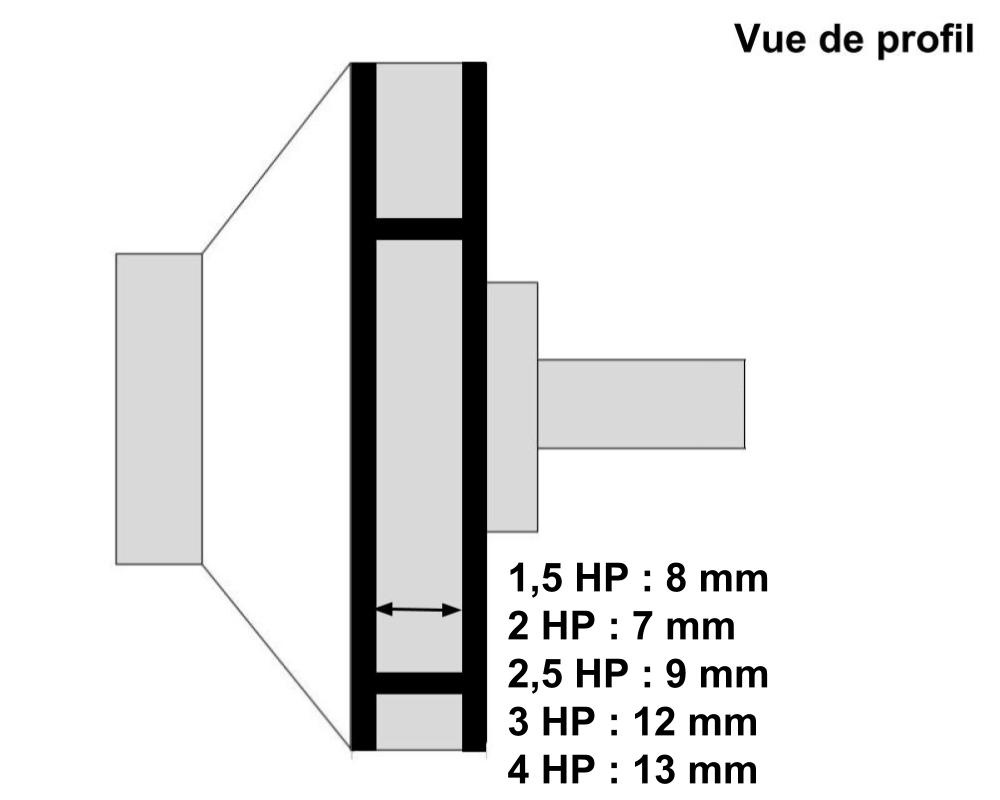

Dimensions
See the image.

Part numbers
1.5 HP: 91694150 - three dots: yellow, green, and blue
2.0 HP: 91694200 - two blue dots
2.5 HP: 91694251 - two white dots
3.0 HP: 91694300 - two green dots
4.0 HP: 91694400 - three dots: white, green, and white
Sunrise Spas : WTY50012
