Waterway Executive 48-Frame wet end

In stock
139,00€
incl. 20% VAT
Version

Options
Quantity:
Waterway Executive 48-Frame wet end - Click to enlarge
Waterway Executive 48-Frame wet end - Click to enlarge
Waterway Executive 48-Frame wet end - Click to enlarge
Waterway Executive 48-Frame wet end - Click to enlarge

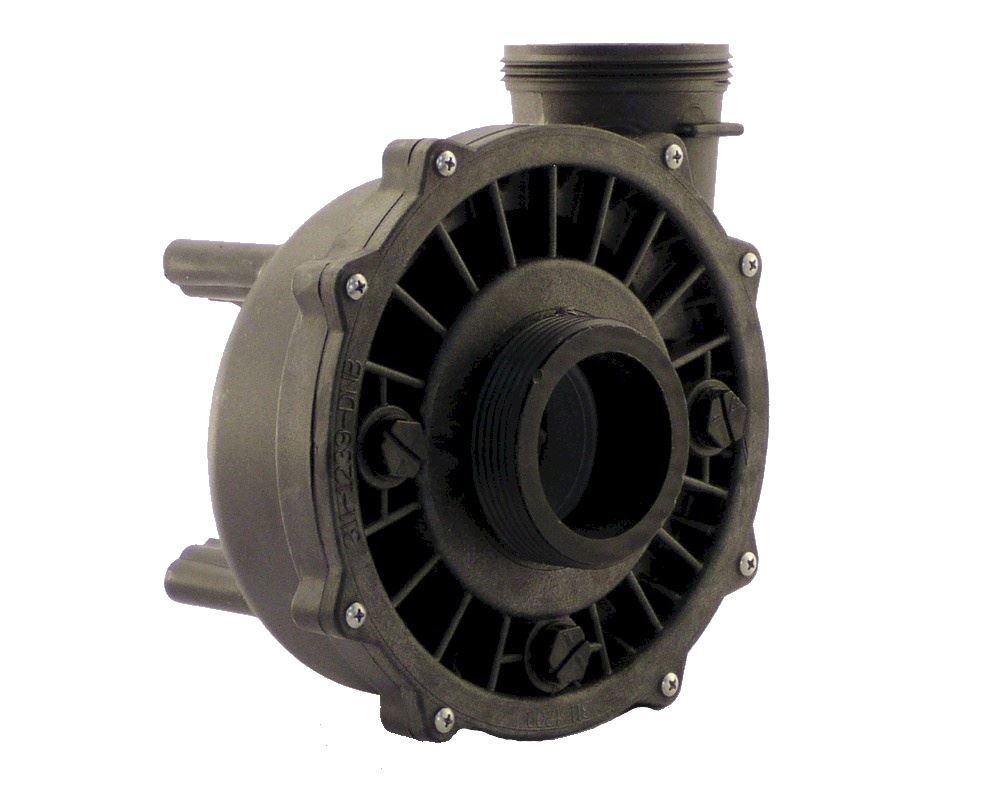

This is a complete wet end for 48-Frame Waterway Executive Euro pumps, complete with volute, impeller, seal, face plate and o-ring. This wet end is compatible with all the various 48-Frame motors used in the Waterway Executive Euro range, both single-speed and 2-speed.

The wet end is available in a choice of four different impellers, which are confusingly called 2 HP, 3 HP, 4 HP and 5 HP. Be careful: the names correspond to the American versions of these pumps. The correct turbine will indicate a higher power rating than your pump motor! To choose the right model, look for a reference on your old wet end or impeller, not on the motor. If in doubt, we recommend the 3 HP version for a motor under 1500W, 4 HP for a motor between 1500 and 1800W, and 5 HP for a motor over 1800W. If you're still in doubt, feel free to contact us.

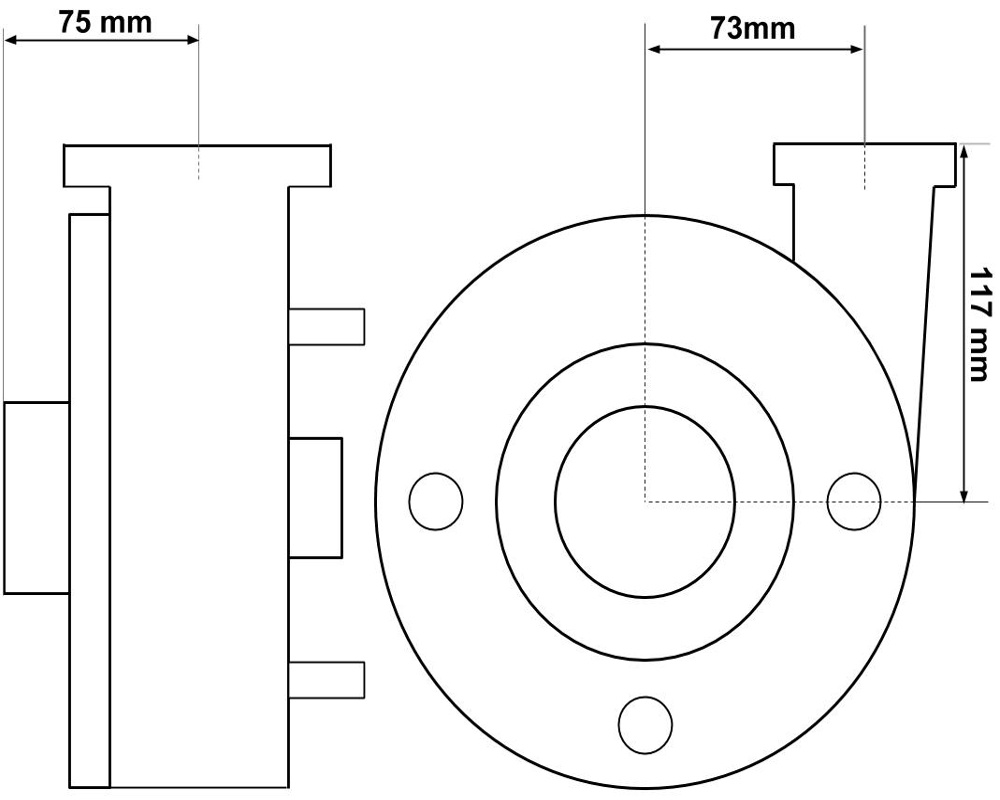

Dimensions

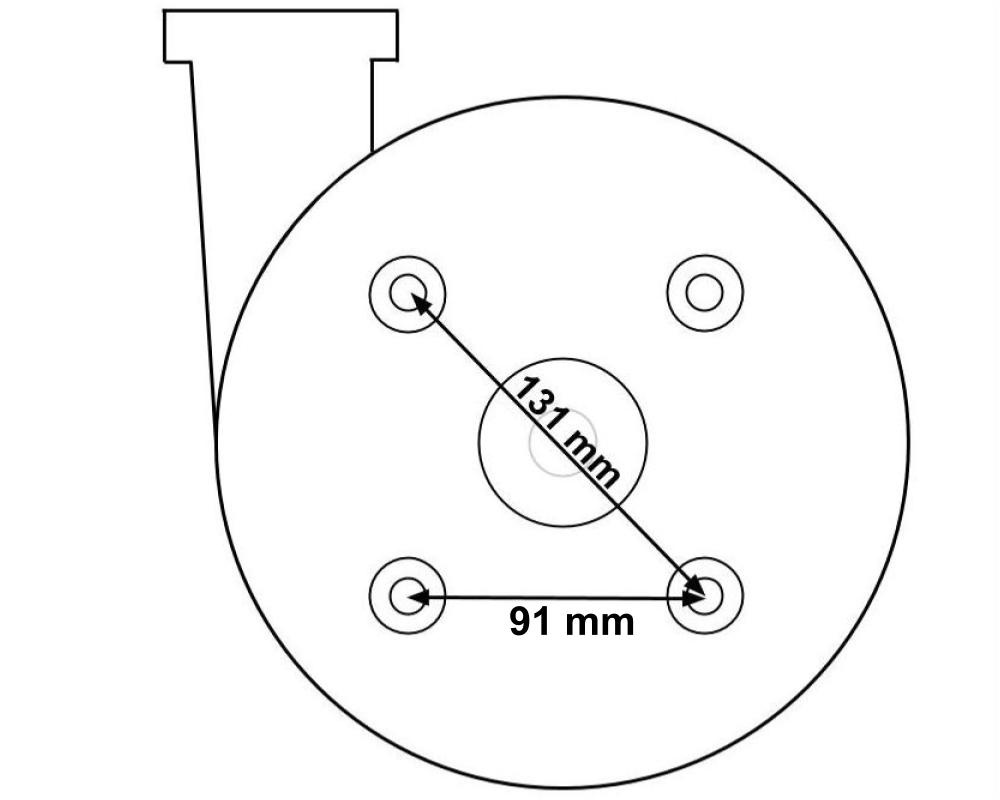

Diagonal distance between the supporting wet end legs: 131 mm
Width: 204 mm
Height: 214 mm

Pipe connections
Two sizes of suction are available: the screw thread can have an outside diameter of either 78 mm or 94 mm.

Waterway part numbers
Complete wet end: 2.0 HP (310-1890), 3.0 HP (310-1900), 4.0 HP (310-1910)
Volute: 315-1220
Flaceplate: 311-1220 (78 mm) or 311-1210 (94 mm)
4.0 HP impeller: 310-4190
3.0 HP impeller: 310-4200
2.0 HP impeller: 310-4210
Wet end seal: 319-3100B

All these parts are also available separately - please contact us for more information.
