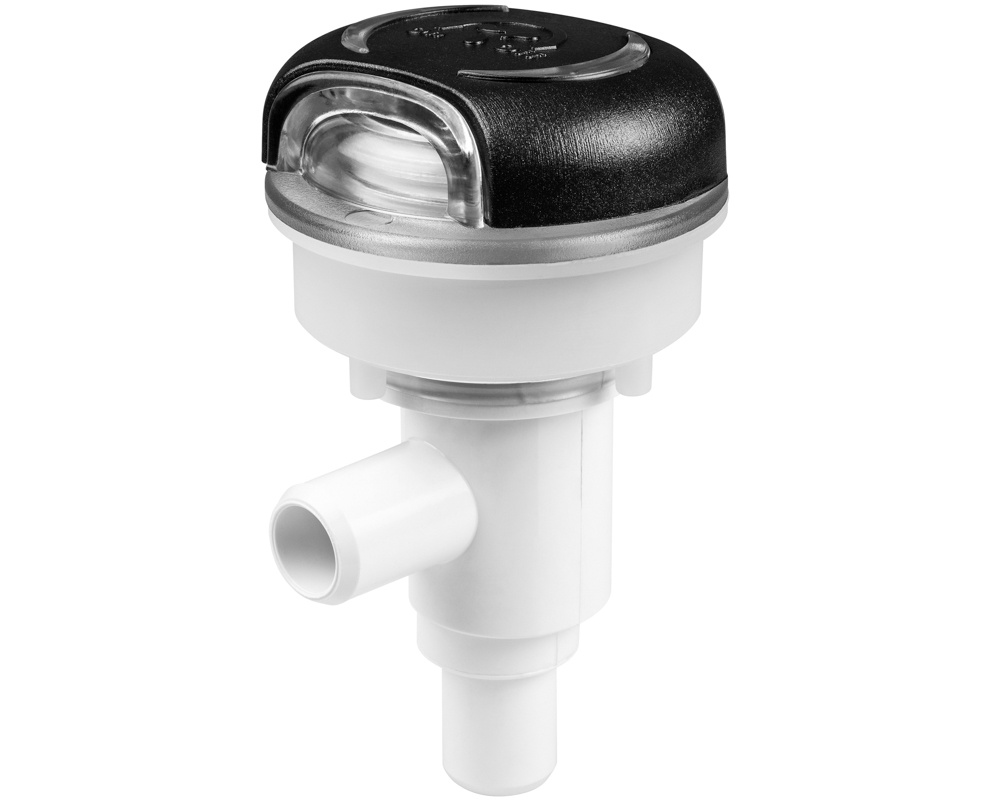

Waterway Eclipse 100% shut-off valve

The Waterway Eclipse on/off water valve has 3/4" inflow and outflow sockets and is used to control the flow of water through jets. It is frequently used for spa waterfalls.

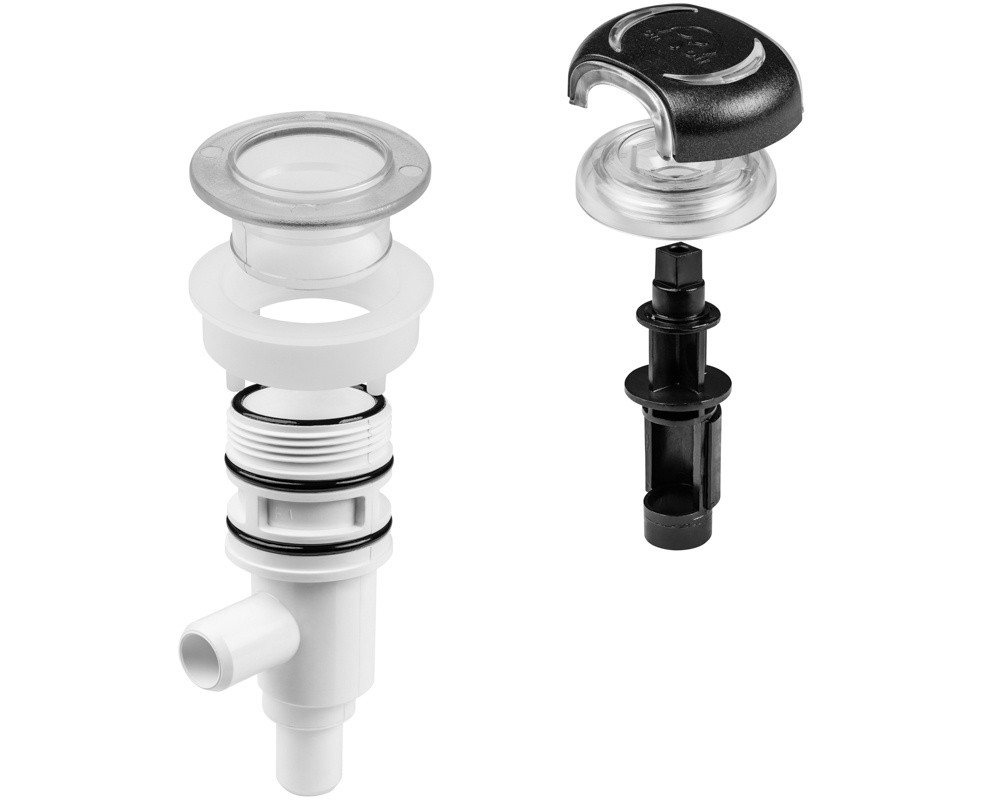

It is part of Waterway's SGMS (Sure-Grip Mounting System), an improved method of installing top side controls without the need to use silicone, alignment rings, nuts or having to spot face the back wall surface: simply insert the SGMS grommet into the pre-drilled hole, lubricate the grommet, then press the top side control into place.

It has a transparent crown that can be backlit (Rising Dragon or SloanLED lighting systems are compatible).

Dimensions
Face diameter: 75 mm
Total length: 133 mm
Drill diameter (opening in the shell): 47 mm
Top diameter (where the cap screws on) : 63 mm

Connection
Female connection for 3/4-inch pipes

Part numbers
Waterway: 608-5508L-DSG
