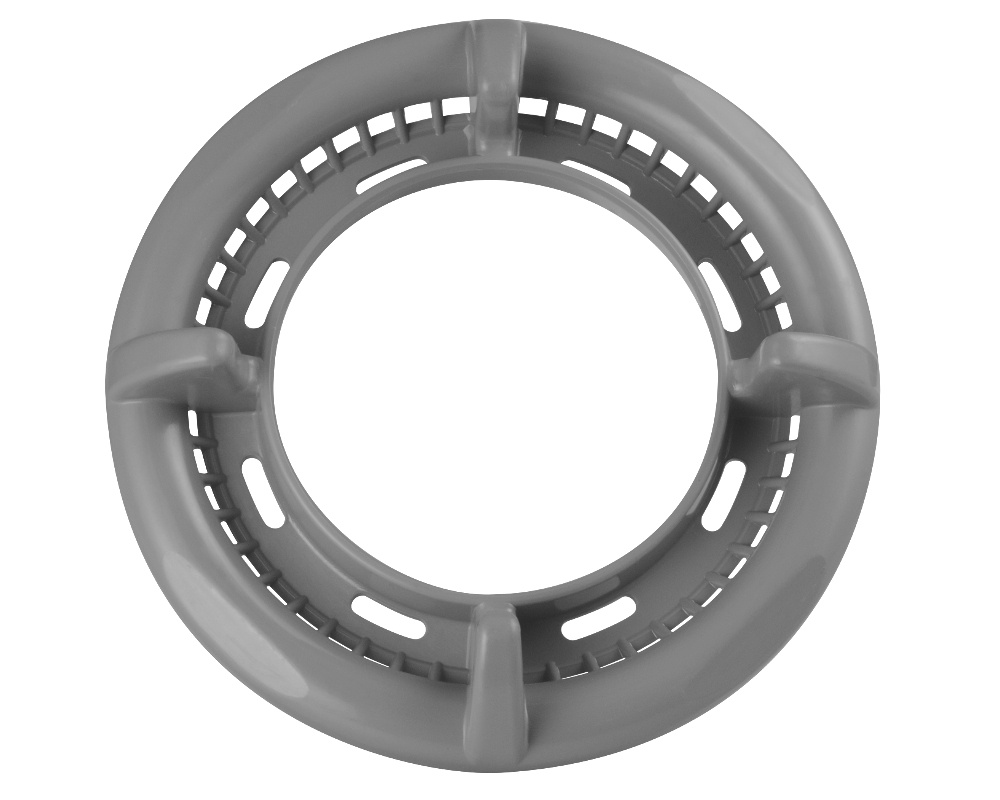

Waterway Dyna-Flo trim ring / high volume

This lock ring turns slightly to clip in place, holding down the telescopic skimmer weir and other parts of the skim filter assembly.

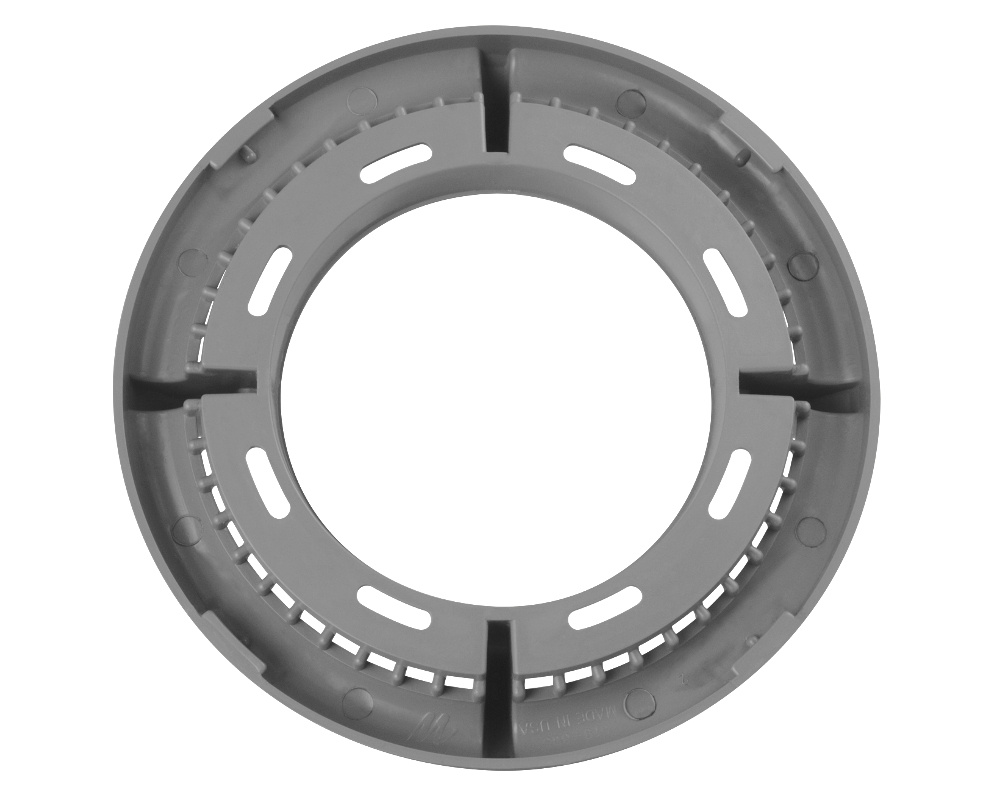

This is the high volume version, which can replace the low volume version, but not the other way around. Check your part to be replaced (to help you, the high volume version has eight additional oval holes).

Three colours are available, grey, white and black.

Dimensions
Outside diameter: 195 mm
Inside diameter: 110 mm
Maximum thickness: 26 mm

Part numbers
Waterway : 519-8050 / 519-8057
Sunrise Spas : WTY30039
