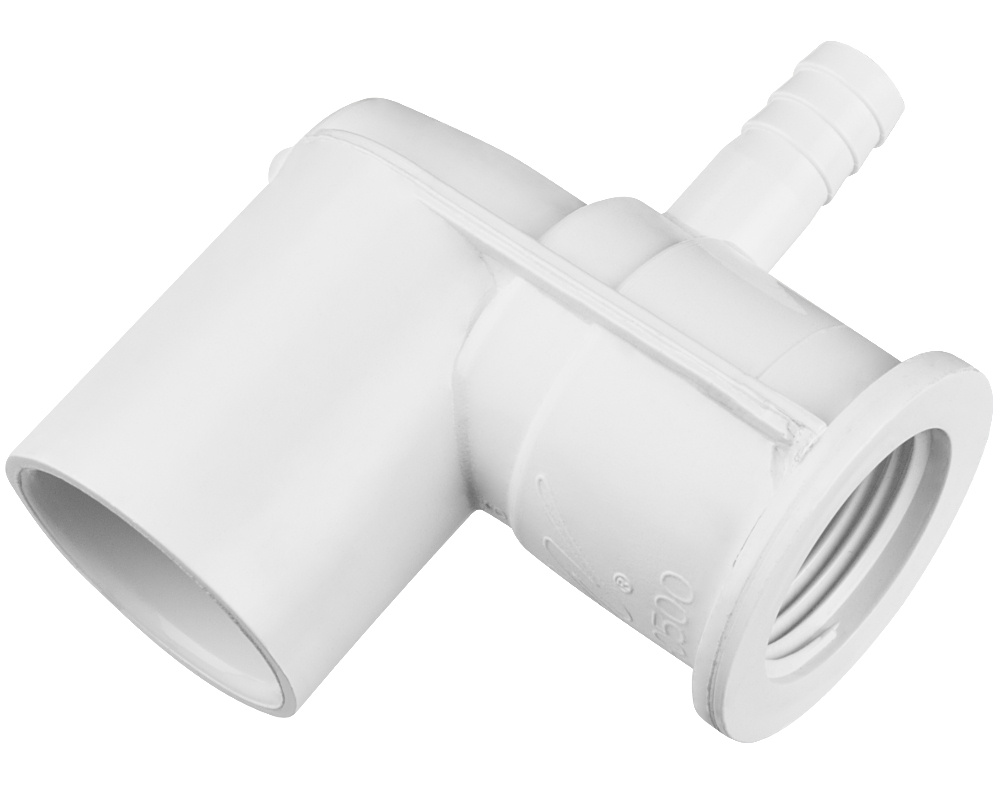

Waterway Cluster Jet Ell socket, 3/4" connection

This Waterway Cluster jet socket connects to 3/4-inch flexible pipe for the water entry, and has a barbed connector for 3/8-inch pipe for air, which is sucked in by the Venturi effect. You can screw any Cluster Jet into the socket, including the Cluster Roto.

To ensure a watertight seal, we recommend using a gasket and acetone-free silicone between the socket and the inner wall of the tank.

Use a cap on the 3/8 inch connector if you do not want to have venturi air intake.

Dimensions
Inside diameter of thread: 23 mm
Water inside diameter: 27 mm or 3/4 inch
Air outside diameter: 10 mm or 3/8 inch
Drill diameter: 25 mm
Length : 62 mm

Pipe connections
Water: Female connection for 3/4-inch pipe
Air: Barbed connection for 3/8-inch flexible pipe

Part numbers
Waterway: 212-0590
