Waterway 2" bypass release valve

Only 8 in stock
18,00€
incl. 20% VAT
Quantity:
Waterway 2" bypass release valve - Click to enlarge
Waterway 2" bypass release valve - Click to enlarge
Waterway 2" bypass release valve - Click to enlarge

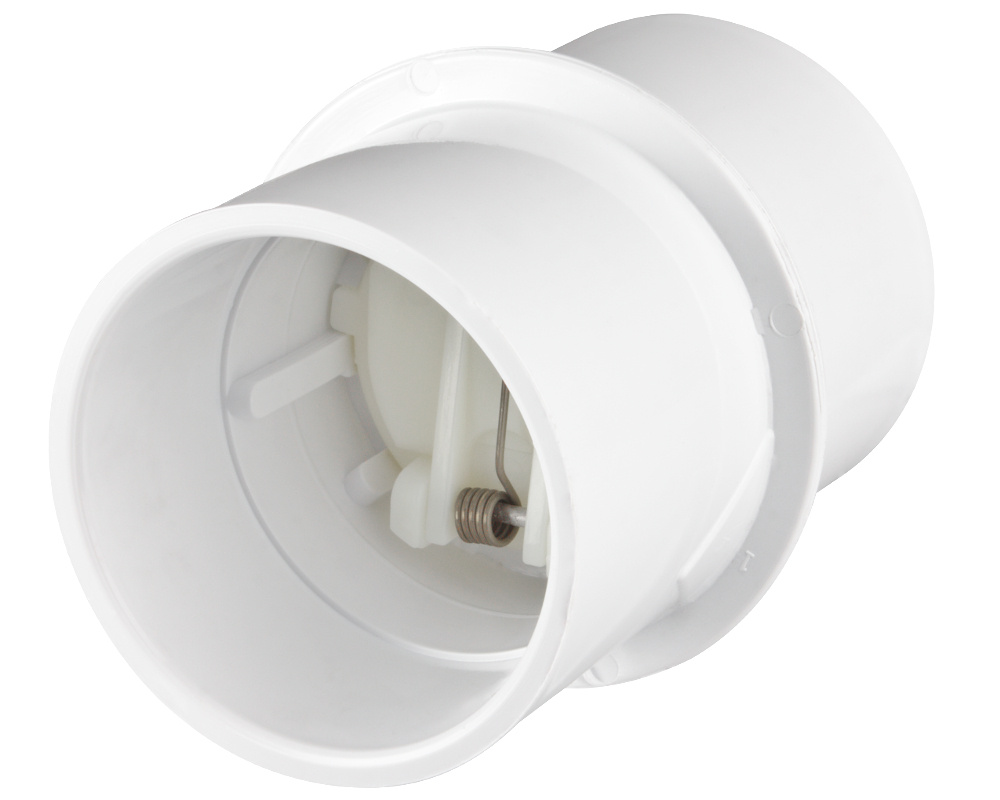

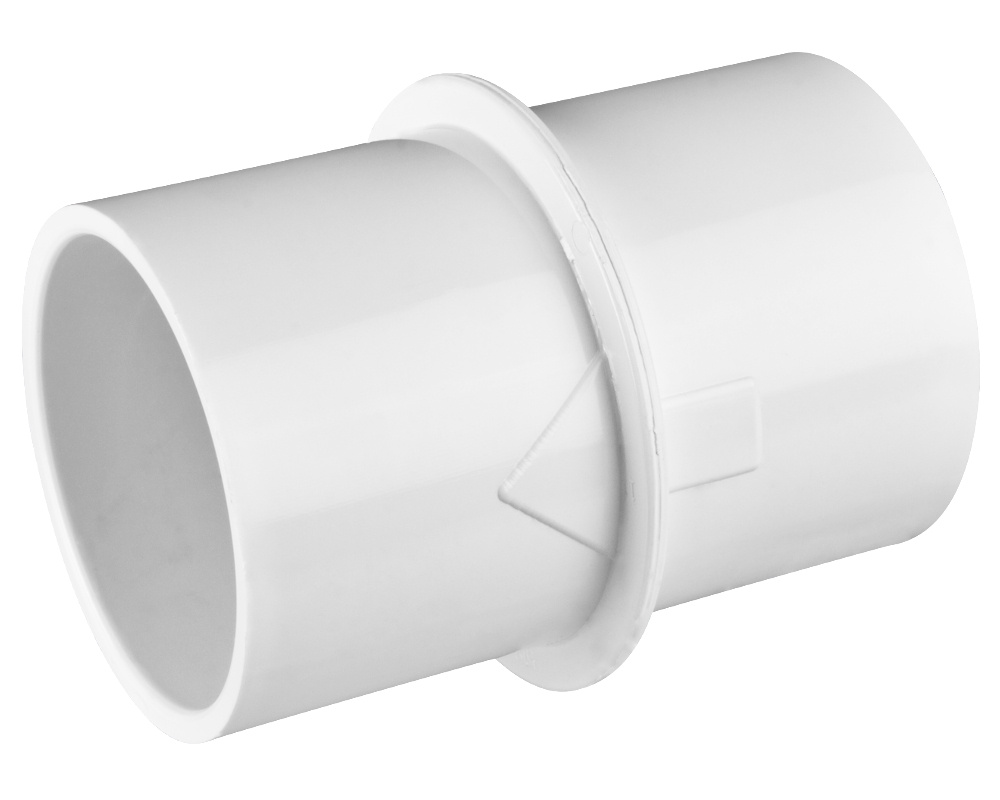

The Waterway 2" flapper valve body is primarily used as a pressure release mechanism on circuits with a a two-speed pump. The valve is typically plumbed on a bypass circuit, and opens when the water pressure rises.

It is often used between suction plumbing and a filter housing to prevent all the water flow from being drawn from the floor of the spa rather than through the filters. It is also helpful in a circuit with a 2-speed pump: When on high speed, it opens the valve to decrease the pressure in the water cricuit.

It connects to 2-inch pipes.

Dimensions
Internal diameter of pipe connections: 60 mm
Length: 105 mm
External diameter: 69 mm

Technical specifications
Spring: 1.25 - 2 lbs

Spare parts
You can theoretically replace the sprung flap at the centre of this valve, provided that you can get access to it, although this is usually difficult if this part is glued to pipework on either side.

Part numbers
Waterway : 550-6810
