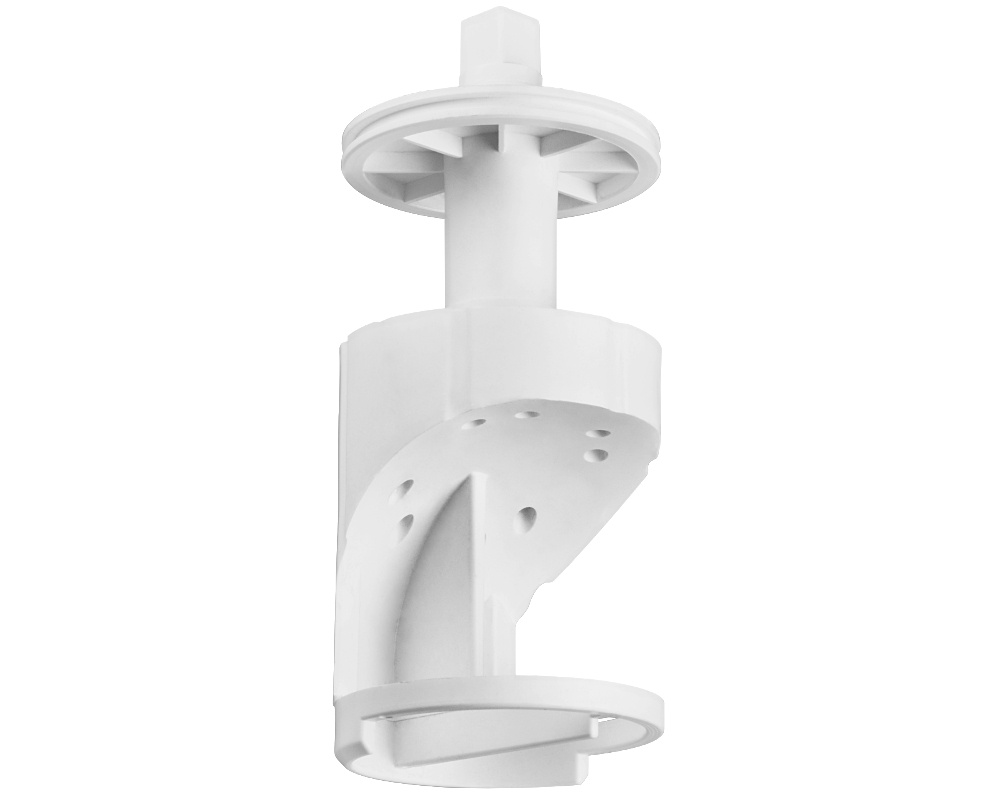

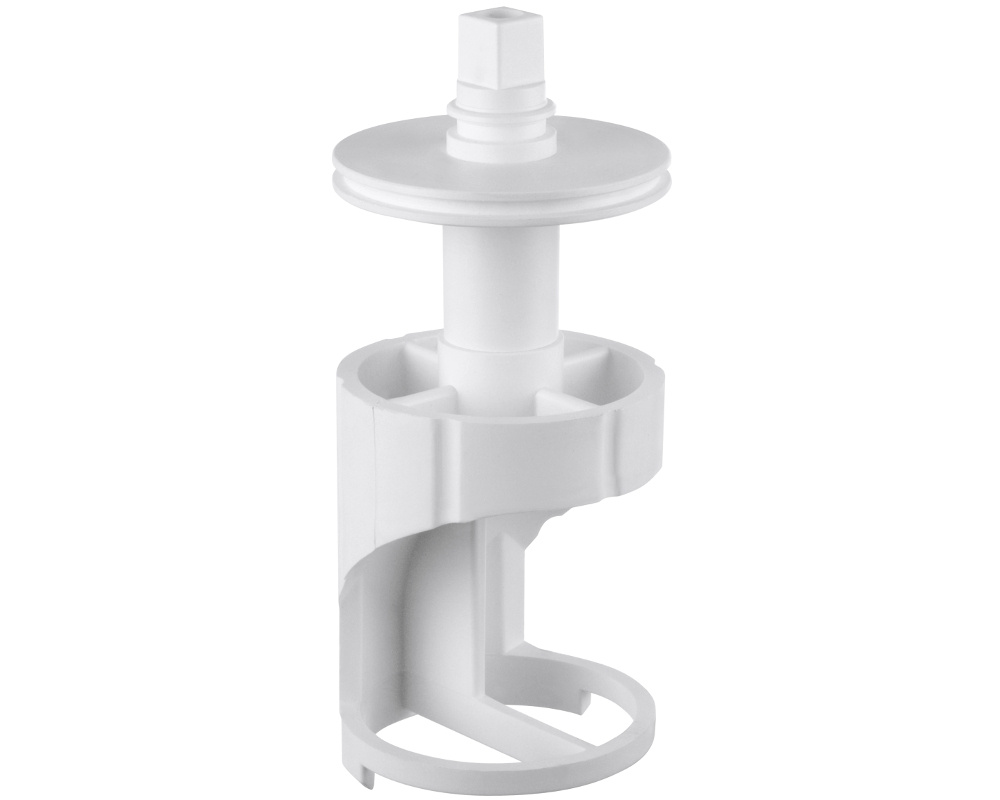

Sundance / Jacuzzi diverter valve gate

This part fits inside the diverter valves found on many hot tubs manufactured by Sudnance Spas and Jacuzzi, including the following models:

• 2011+ Elite series
• 2007+ 880 series
• 2007+ 780 series
• 2004+ J-300 and J-400

Sundance Spas and Jacuzzi hot tubs changed the 6540-966 model to this diverter valve in early 2018. This new part is compatible with any spa that originally had the 6540-966 diverter.

The redesign has holes for self-flushing of debris through valve rather than depositing sand and grit in the valve, making it impossible to turn.

Dimensions
Outside diameter: 58 mm
Length: 137 mm

Part numbers
Sundance Spas: 6540-568 or 6540-966 (old number)
