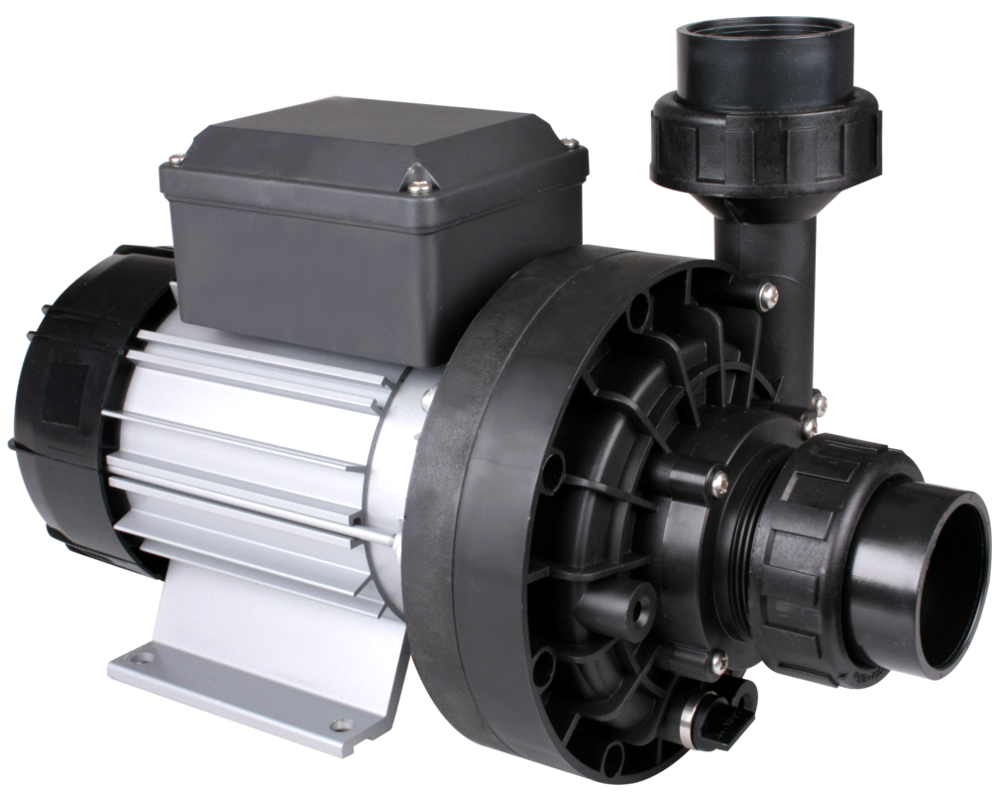

SIREM PBL1C80K1B single-speed pump

This PBL1C80K1B single-speed pump is used for massage jets, but also in swimming pools.

This model replaces the similarly powerful and slightly smaller PB1C80K1B.

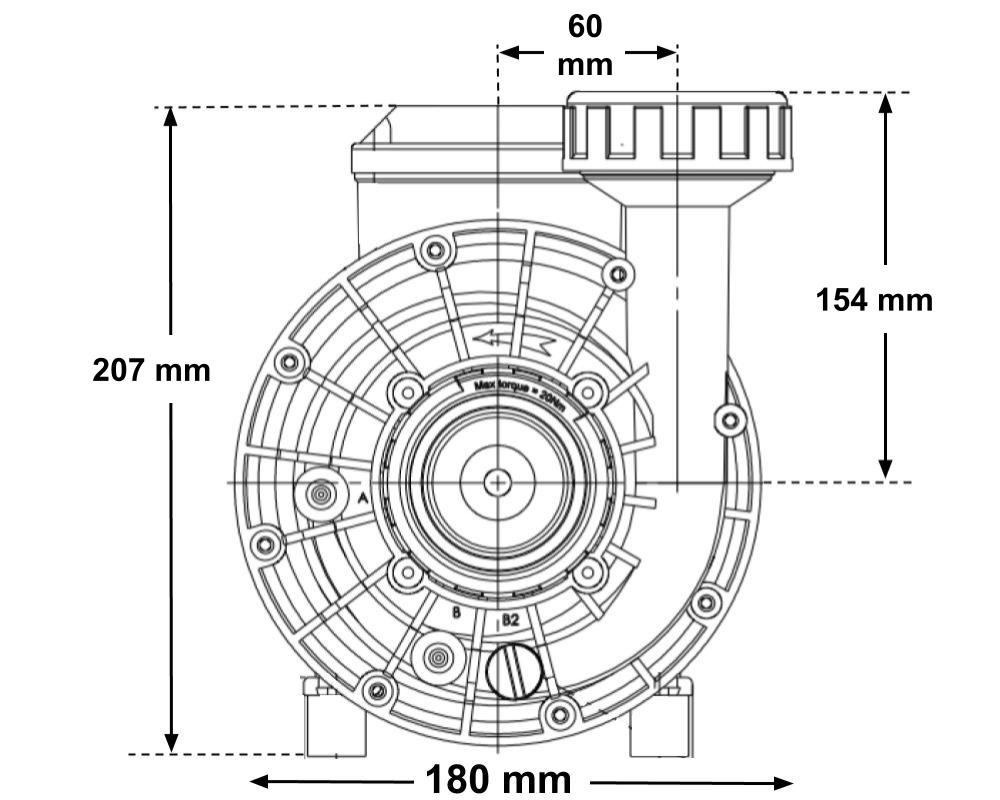

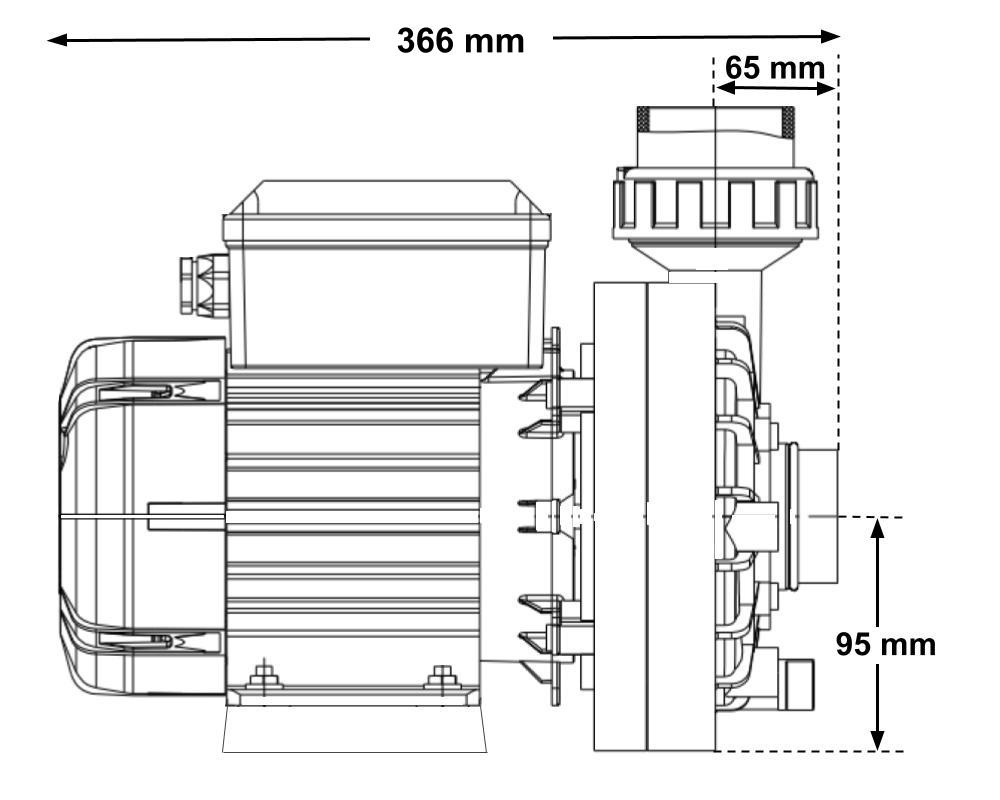

Dimensions (without fittings)
Length: 366 mm
Width: 180 mm
Height: 207 mm

Technical specifications
Power: 1.35 kW (1.6 HP)
Maximum flow rate: 26m3/h

Connections
Suction and discharge: male thread, 65 mm diameter
The unions are not supplied with the pump. The suction and discharge parts are connected to a 50 mm pipe.

Cable and plug
This SIREM PBL1C80K1B pump is delivered pre-cabled without plug (length 150 cm) or with a AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Spare parts
We offer some spare parts for this pump: the wet end seal, the fan wheel or the pump unions

Warranty
2-year Tubs Parts warranty

Part numbers
SIREM : PBL1C80K1B
