Rising Dragon 5" jet socket

In stock
21,00€
incl. 20% VAT
Colour
Quantity:
Rising Dragon 5" jet socket - Click to enlarge
Rising Dragon 5" jet socket - Click to enlarge
Rising Dragon 5" jet socket - Click to enlarge

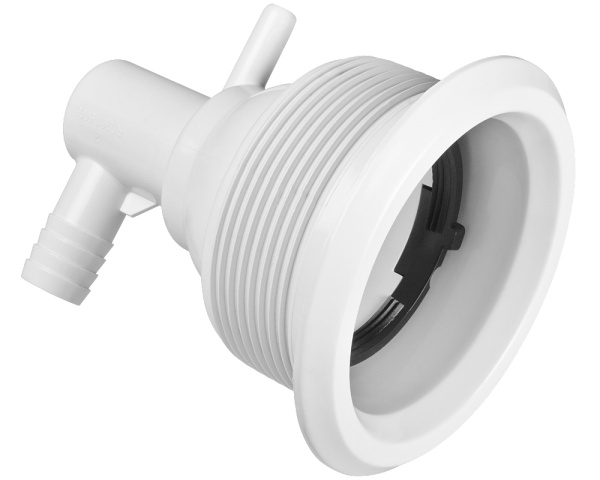

This socket fits all styles of screw-in jet from Rising Dragon's 5-inch range. The socket fits into the wall of the shell, and the jet screws into the socket.

If necessary, do not forget the fixing nut and the gasket (sold separately) to ensure a tight seal between the jet and the shell !

The water flow through the socket draws in air through the Venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each nozzle is normally connected to a manifold, and then to a valve, so that the air/water mixture in the jets can be modified. If you do not want bubbles in the water jets, block the air inlet with a plug.

Dimensions
Inside diameter front face: 85 mm
Outside diameter front face: 120 mm
Length: 136 mm
Outside thread diameter: 93 mm

Pipe connections
Water: 3/4 inch
Air: 3/8 inch

Rising Dragon part numbers
White: RD203-5001

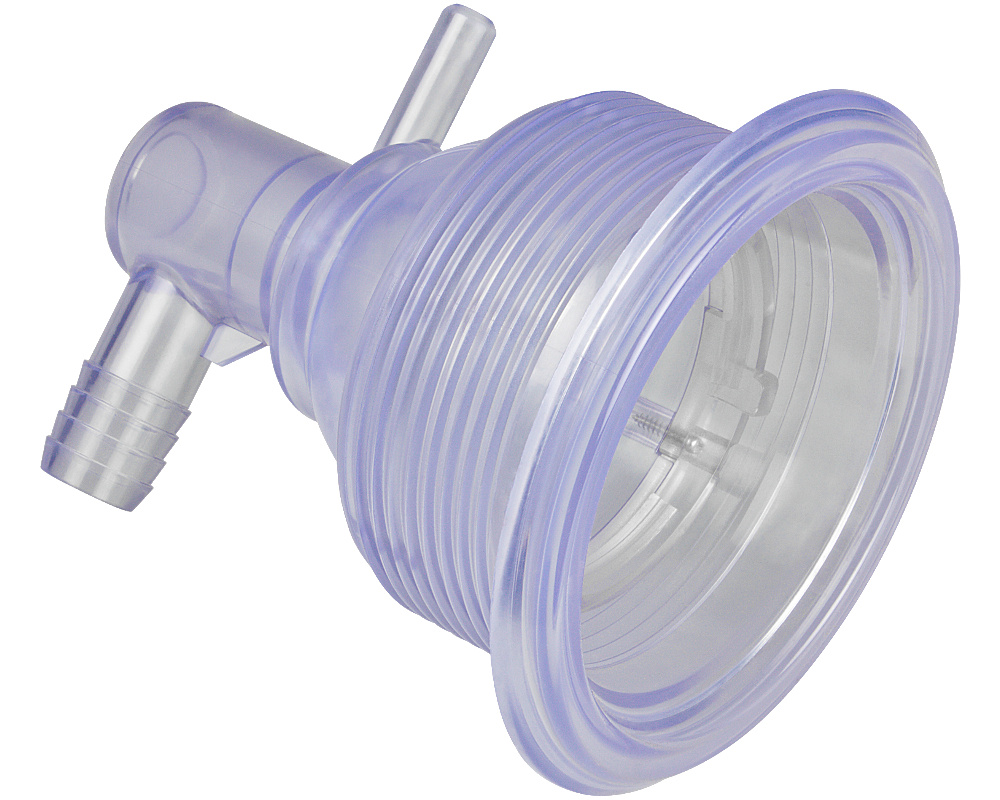

Clear: RD223-5005
