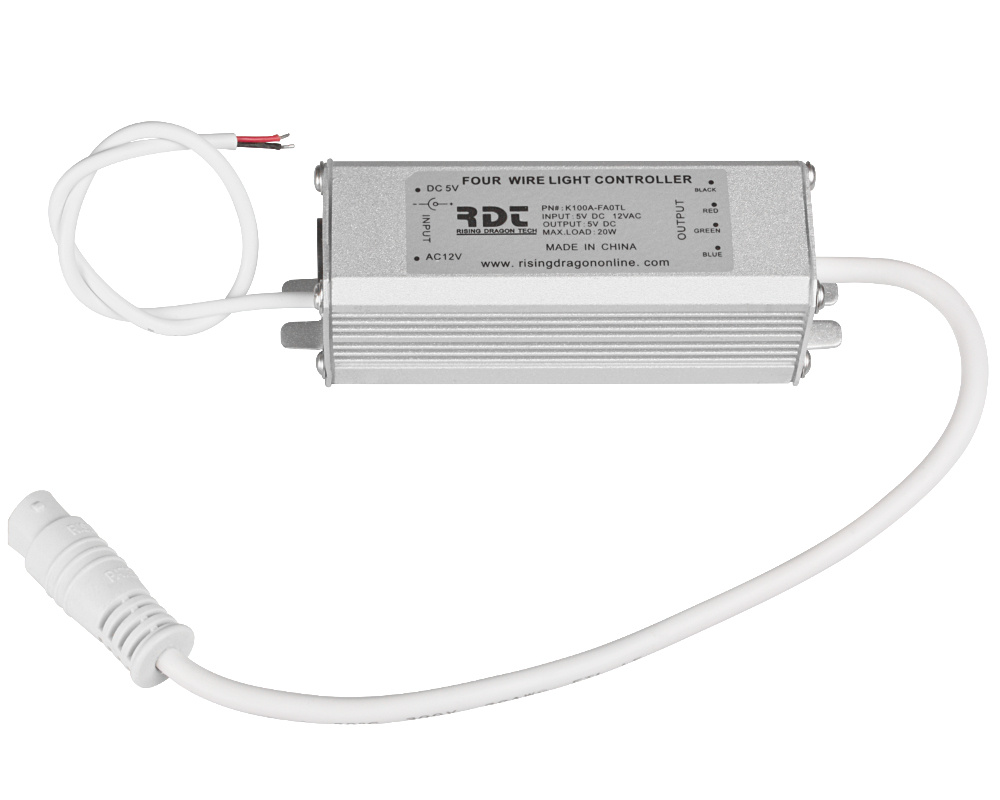

Rising Dragon Four Wire Light Controller

This Rising Dragon LED lighting control box is featured on several spa brands with a 12V light output, including Arctic Spas. Its power supply usually comes from a transformer, also supplied by Rising Dragon.

The LVJ light controller plugs into the standard power supply of LVJ 5" kits (Option B) or 2,5" kits, for example. You can connect several kits, and the control unit manages the color changes so that all LEDs remain synchronized.

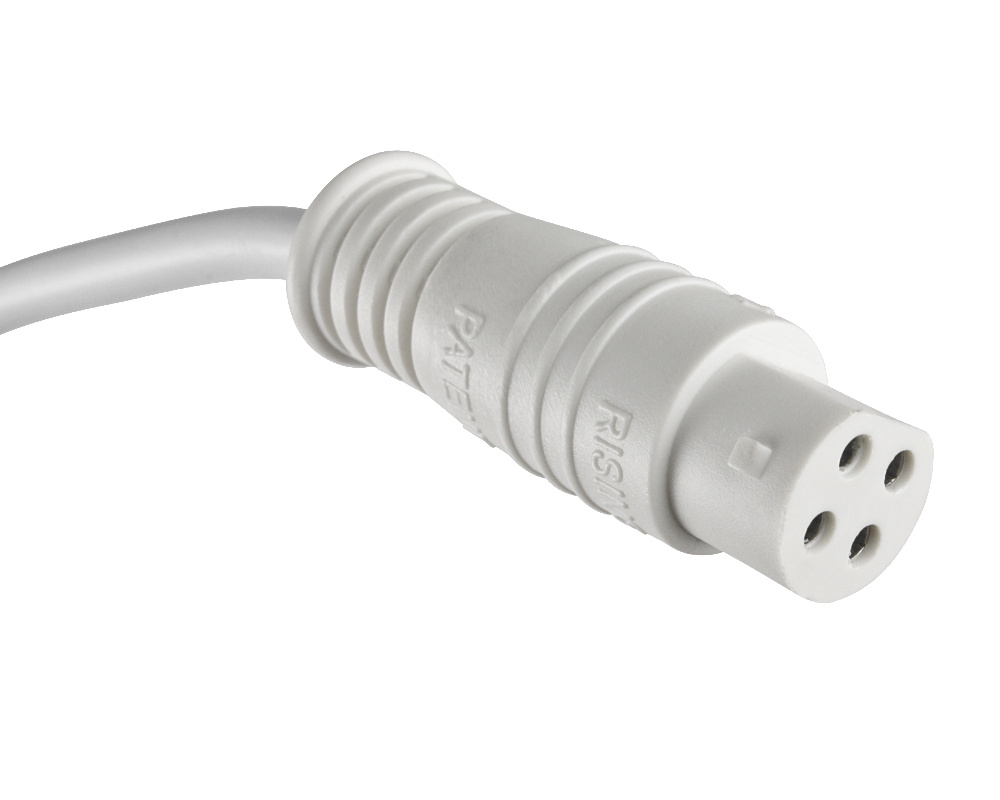

This controller should not be mistake for the two-wire model designed for the Pinnacle lighting system, as the two versions are not interchangeable! Make sure to check the two- or four-pin connector's output socket (see picture 2).

Dimensions
100 x 35 x 35 mm

Technical specifications
Input voltage: 5V DC
Control voltage : 12V AC
Output voltage: 5V DC
Max. power: 20 W

Part numbers
Rising Dragon: K100A-FA0TL
