Rising Dragon Evolution multi-colour master light

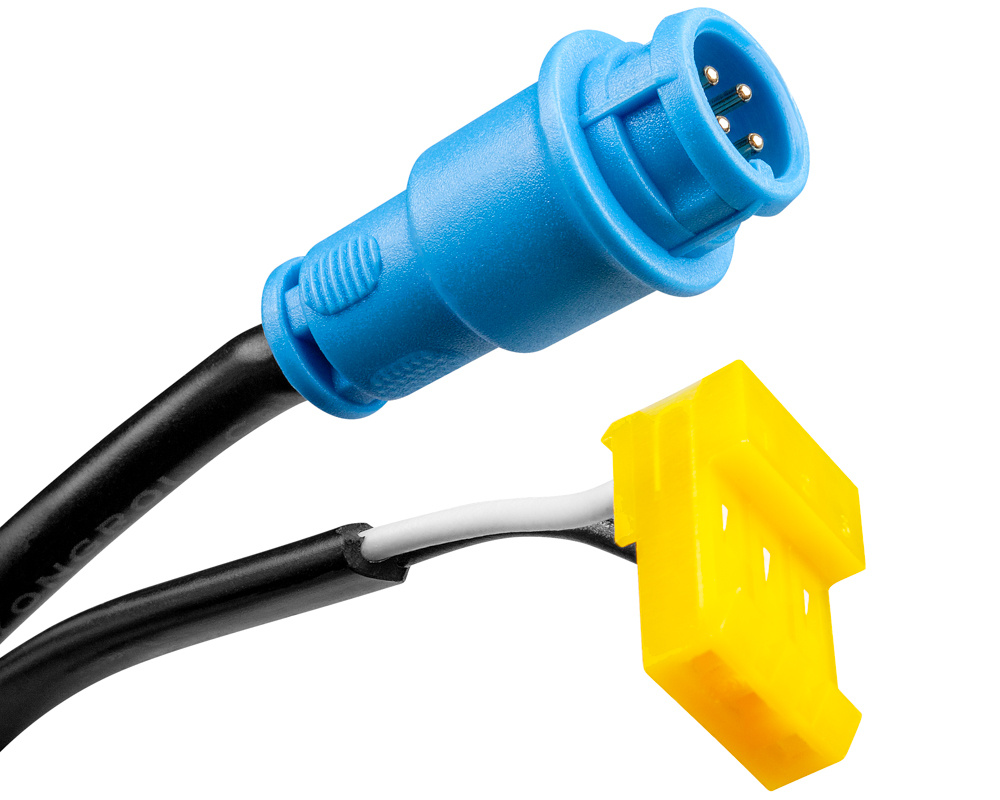

With its 3-pin connector cable, this Rising Dragon Evolution multicolor master bulb connects to a 12V AC source such as a Gecko MSPA or c243 Astrel control box, among others. You can also choose to pre-cable it with an AMP plug if you have a Balboa or a Waterway control box for example.

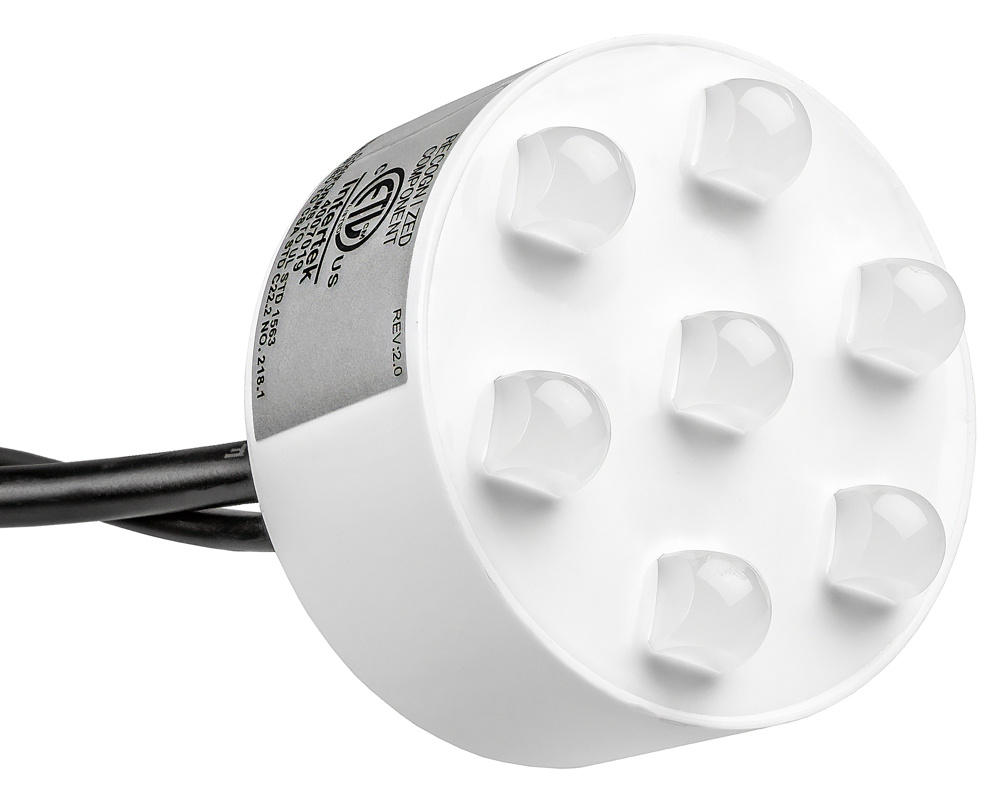

Its 7 LEDs and integrated controller allow very beautiful color effects: slow or fast color sequence, intensity variations and strobe effect. Each ON/OFF pulse on your keyboard allows you to change the color sequence.

Its round connector can be used, with the splitter (included), to link a slave bulb and/or one or more spyders (with double or quadruple LEDs for example).

Be careful not to confuse this bulb with the model designed for the Evolution series, whose output voltage is 5V DC.

Technical specifications
Input voltage: 12V AC
Output voltage: 12V DC
Maximum power: 2W
Maximum load: 10W
With controller

Dimensions
Diameter: 55 mm
Thickness: 33 mm

Compatible spa light assembly
Waterway 82 mm and 127 mm, Rising Dragon 127 mm, CMP 82 mm, Sundance Spas 108 mm

Part numbers
Rising Dragon: 1L7MFC-03ATL
