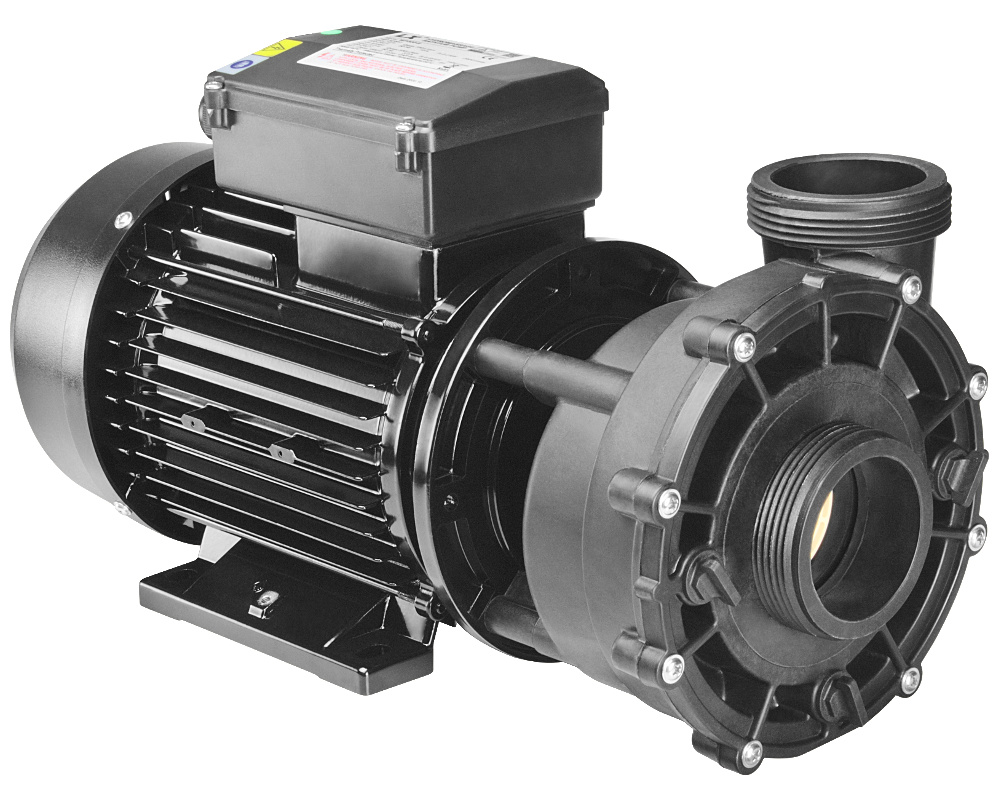

LX Whirlpool WP200-II 2-speed pump
The LX Whirlpool WP200-II two-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets. We also sell the WP250-II and WP300-II versions of this pump, with different motor powers.
The pump comes with unions for 2-inch pipe (diameter 60 mm). We have a wide range of spare parts for this pump.

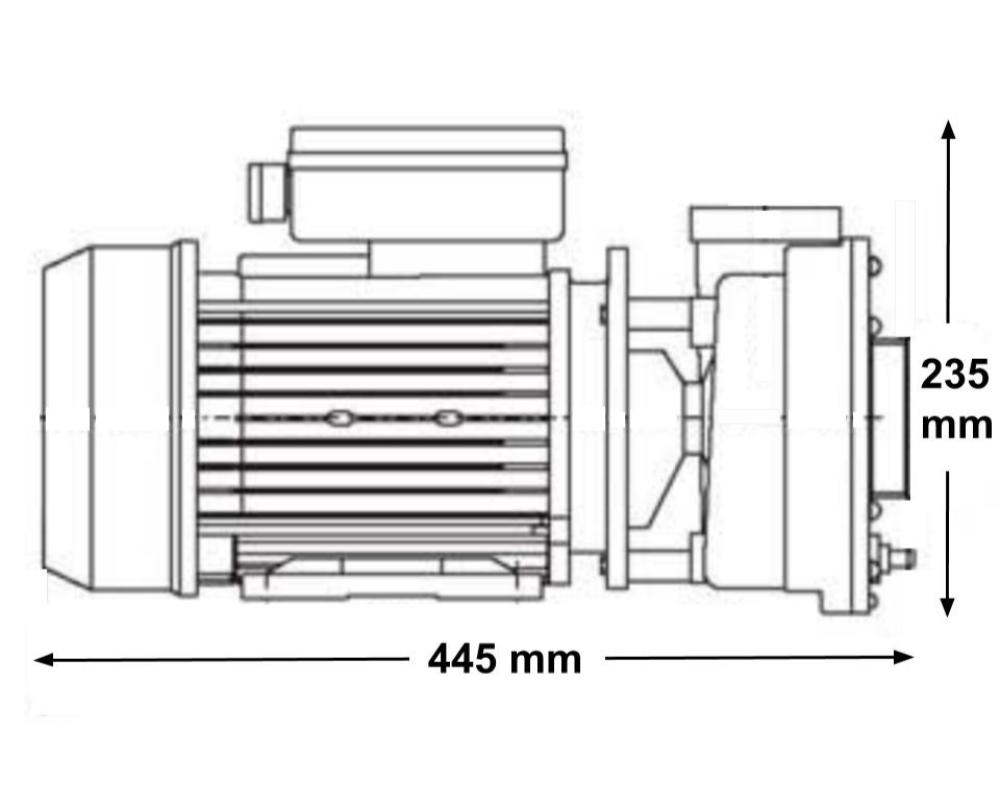

Dimensions
Length: 445 mm
Width: 202 mm
Height: 235 mm
Technical specifications
Power high speed: 1,5 kW (2.0HP)
Power low speed: 0,35 kW
Maximum flow rate: 620 litres/minute

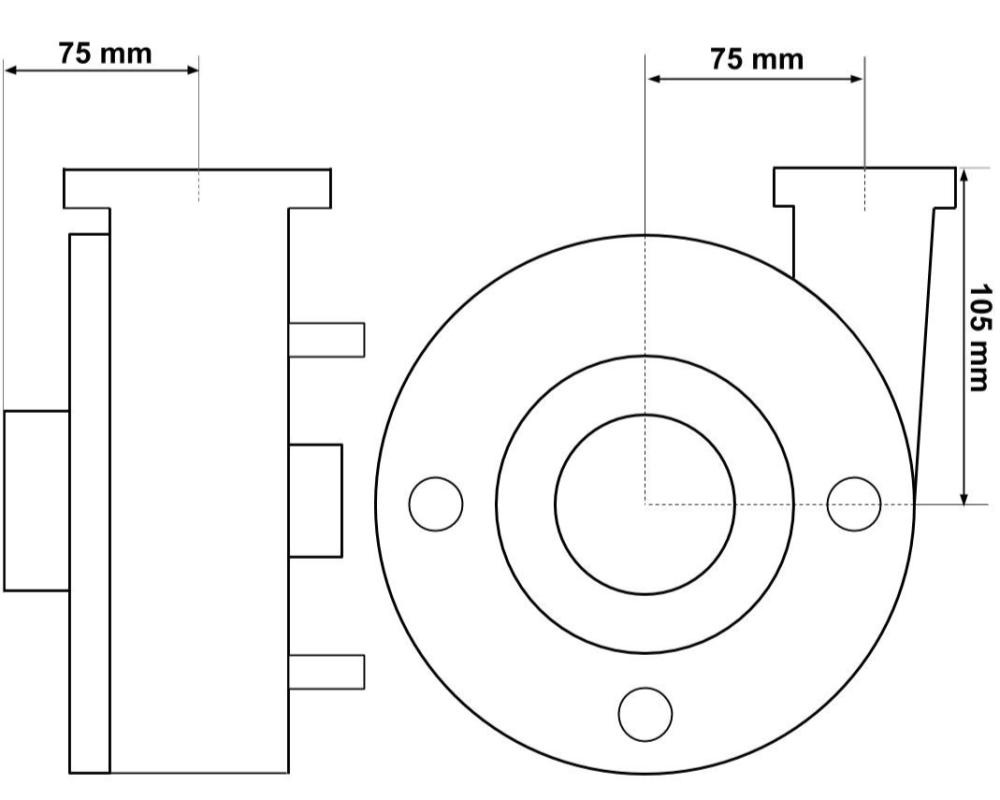

Connections
Outflow and intake: male thread with a 78 mm outside diameter.
The LX Whirlpool WP200-II pump is supplied with unions and gaskets for 2-inch pipes (diameter 60 mm).
The LX WP200-II replaces the Theramax pumps with the following part numbers: 6500-291, 6500-299, 6500-319, 6500-700, 6500-791 and 6500-899.
Cable and plug
The LX Whirlpool WP200-II pump is available pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a 240 cm AMP plug, a mini J&J plug or an in.link plug (length 100 cm).
Similar pump
The Koller 2 HP pump has the same thread size, similar dimensions and same power than the WP200-II. If you want to replace your pump with another model, you must check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Part numbers
Watkins / HotSpring: 0965901-03. Replaces 37066
Volition: 20PW
Wellis: ACM0594
Jazzi: JAPU10
Jacuzzi and Sundance Spas Theramax: remplaces part numbers 6500-291, 6500-299, 6500-319, 6500-700, 6500-791 and 6500-899
Wet end orientation
Standard exit
Exit to left
Exit to top left
Exit to right
Exit to top right
Plug types
AMP plug
J&J plug
in.link plug
