LX Whirlpool JA150 single-speed pump, 1,5HP

Available in 7 weeks
219,00€
incl. 20% VAT
Cable and plug
Quantity:
LX Whirlpool JA150 single-speed pump, 1,5HP - Click to enlarge
LX Whirlpool JA150 single-speed pump, 1,5HP - Click to enlarge
LX Whirlpool JA150 single-speed pump, 1,5HP - Click to enlarge
LX Whirlpool JA150 single-speed pump, 1,5HP - Click to enlarge
LX Whirlpool JA150 single-speed pump, 1,5HP - Click to enlarge

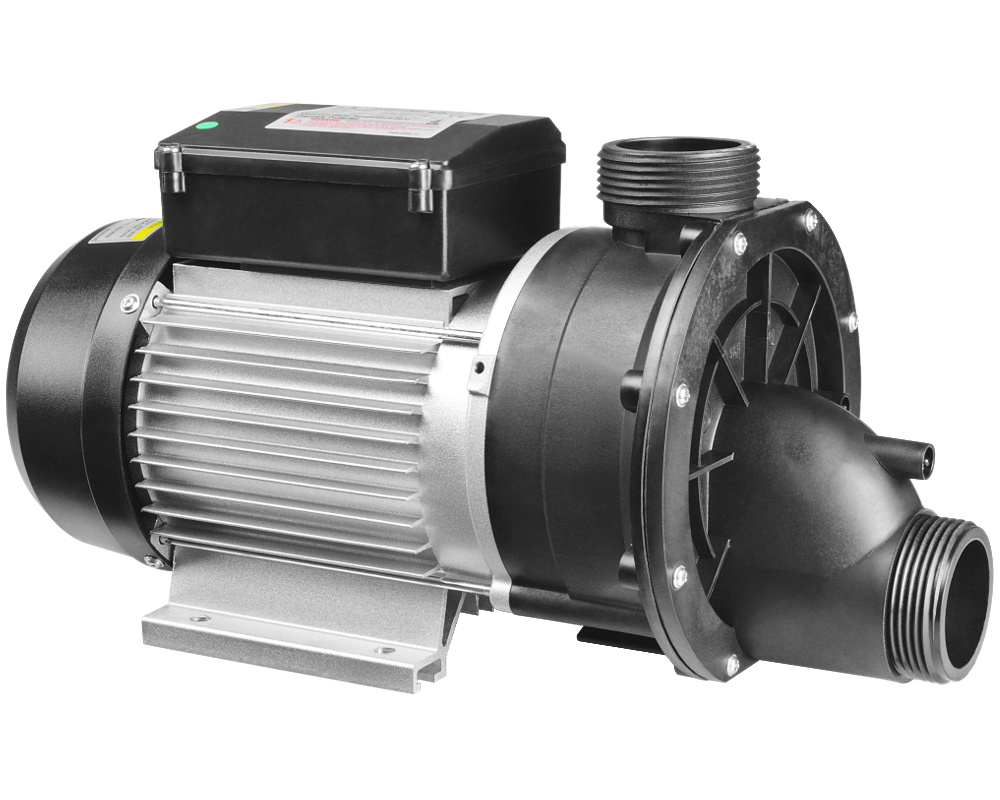

The LX Whirlpool JA150 is a compact, single-speed massage pump, used by several hot tub manufacturers.

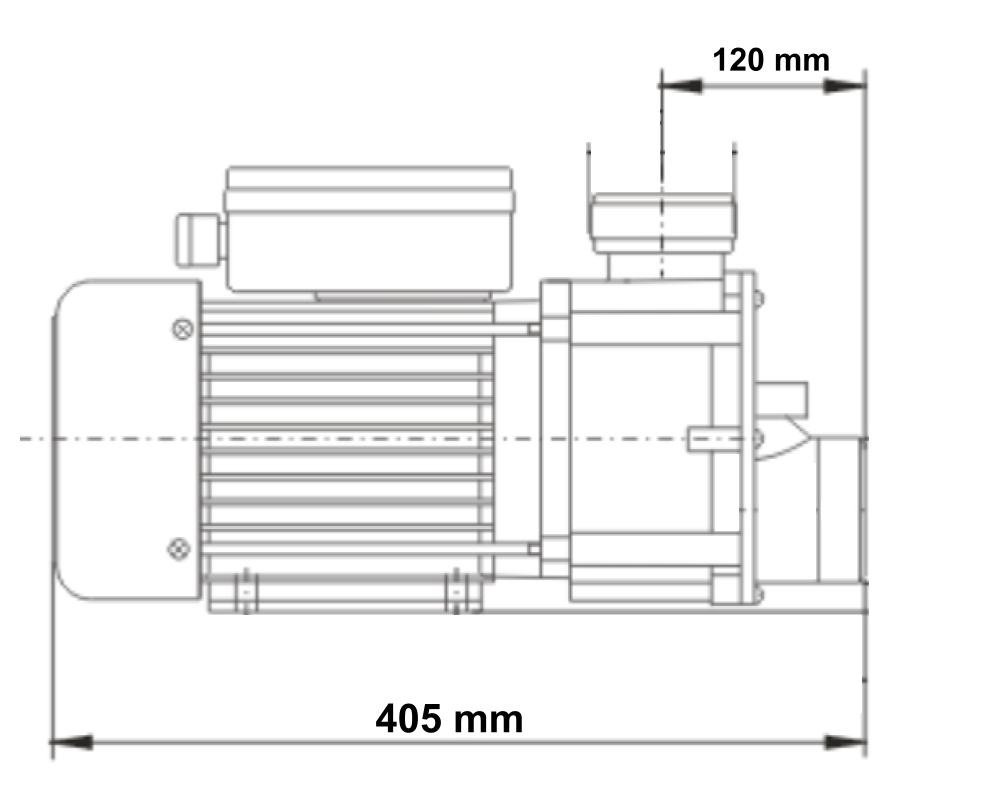

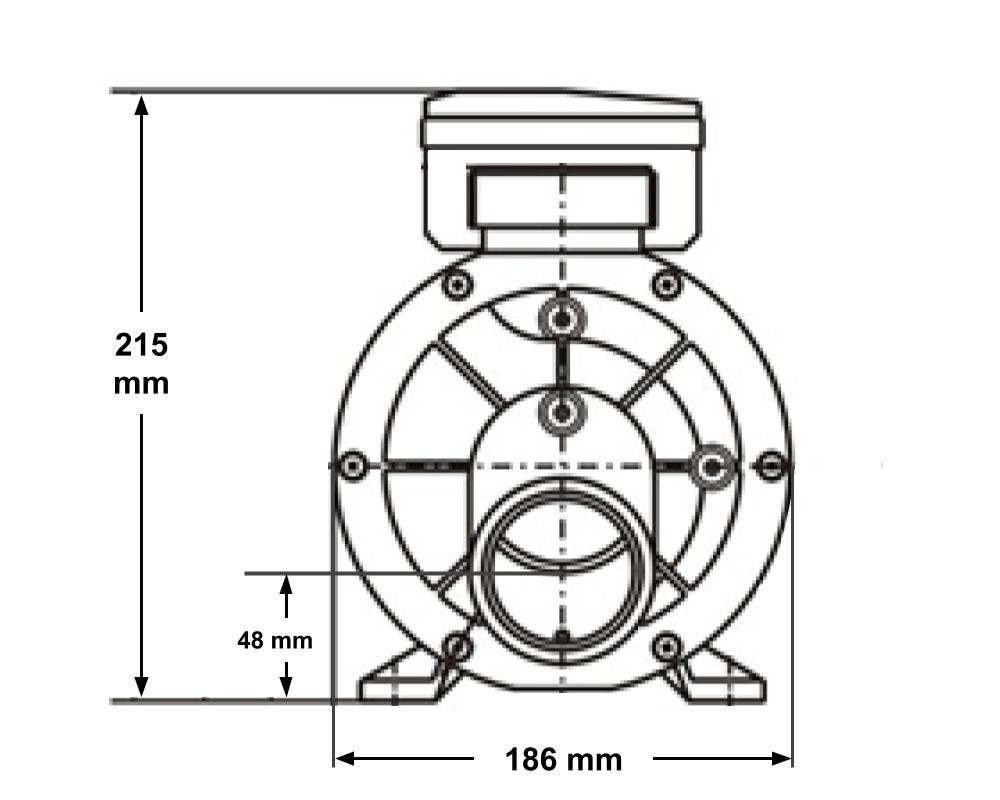

Dimensions
Length: 405 mm
Width: 186 mm
Height: 215 mm

Technical specifications
Power: 1100 W, 1.5 HP
Maximum flow: 380 litres/minute

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT).
We sell unions and o-rings for 1.5-inch pipes

Cable and plug
The LX Whirlpool JA150 pump is delivered pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.
An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Capacitors (just in case you need to replace one)
JA120: 25 µF

Other spare parts
Click here to get some spare parts.

Similar pumps
The LX Whirlpool JA200 and TDA200 pumps have the same thread size, similar dimensions and are a slightly more powerful than the JA150. If you want to replace your pump with another model, you should check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
