LX Whirlpool EA450 single-speed pump, 1,5HP

This single-speed pump is frequently installed on spas manufactured in Asia. It is used for massage jets or for circulation, depending on the configuration of your spa.

Tubs Parts also sells the EA350 version of this pump, with a different motor power.

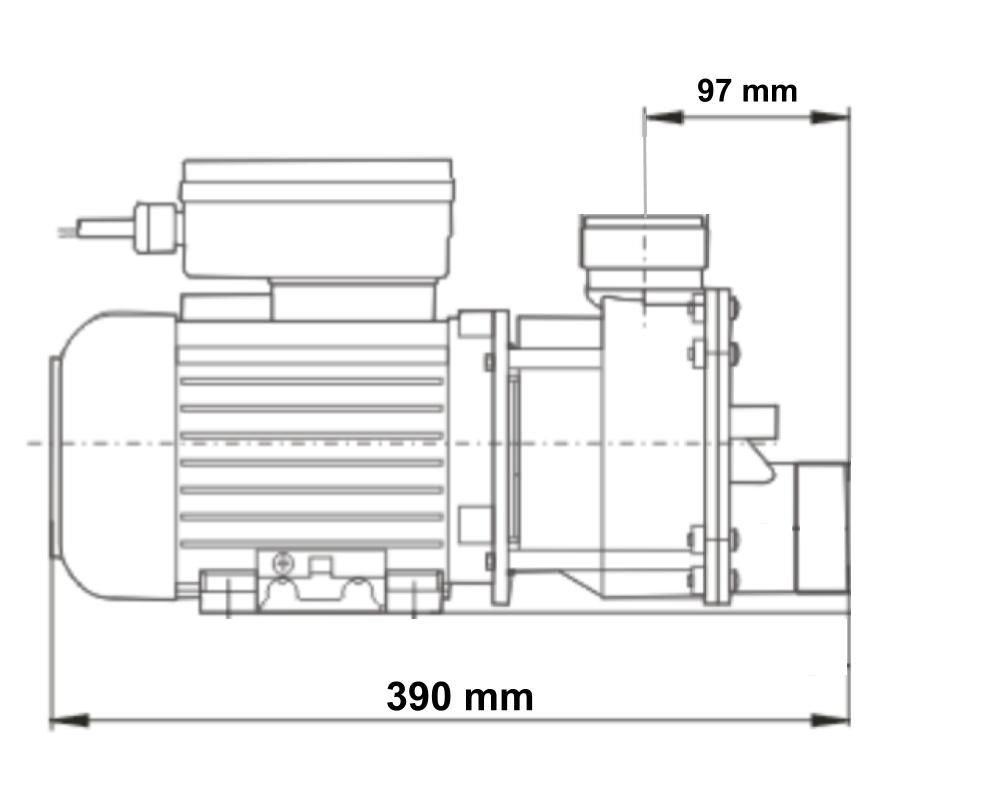

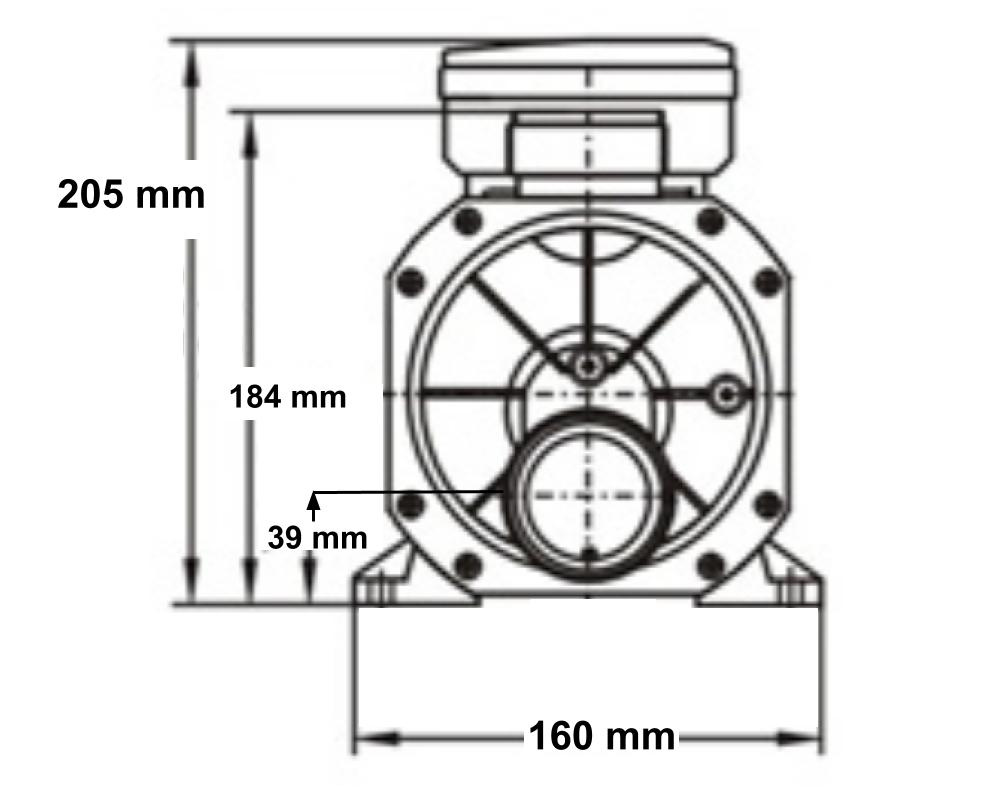

Dimensions
Length: 390 mm
Width: 160 mm
Height: 205 mm

Technical specifications
Power: 1100 W (1.5 HP)
Maximum flow rate: 360 litres/minute

Pipe connections
Male thread (1.5-inch MBT) with a 62 mm outside diameter.
The EA450 pump comes with unions and o-rings for 1.5-inch pipes (48 mm diameter).

Cable and plug
The LX Whirlpool EA450 pump is delivered pre-cabled with an AMP plug (length 130 cm).

Installations equipped with a mini J&J plug must use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Warranty
2-year Tubs Parts warranty

Plug types

AMP plug

J&J plug

in.link plug
