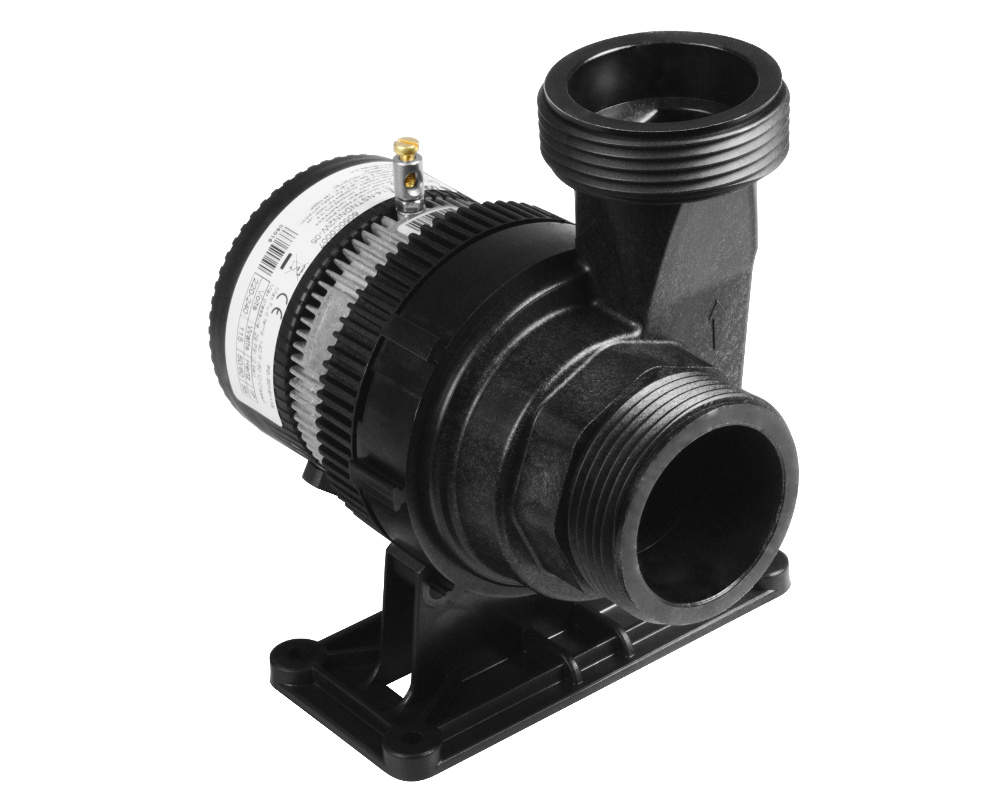

Laing E14 pump
The small E14 circulation pump from Laing (Xylem) is the new ultra-compact version of the E14 model. It is used by several spa manufacturers, including Dimension One, Sundance, Master Spas and Hot Spring. It is designed to function 24-hours per day.
This clever little pump has no spindle, so it is almost impossible for the water to leak from the wet end into the motor.

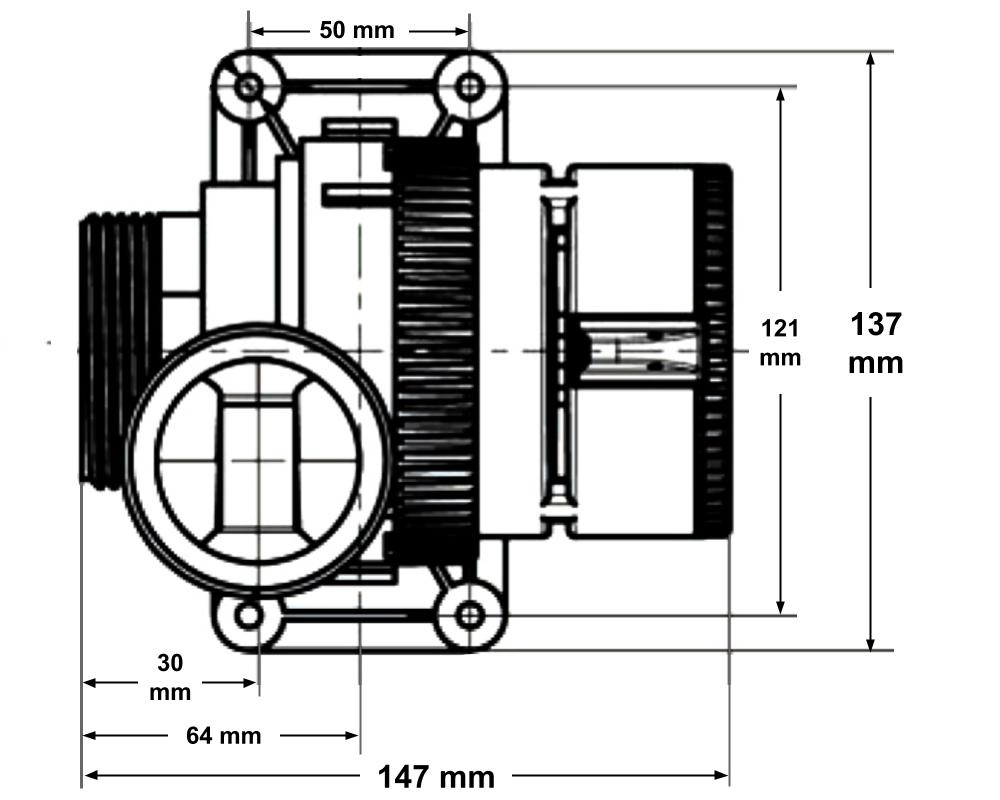

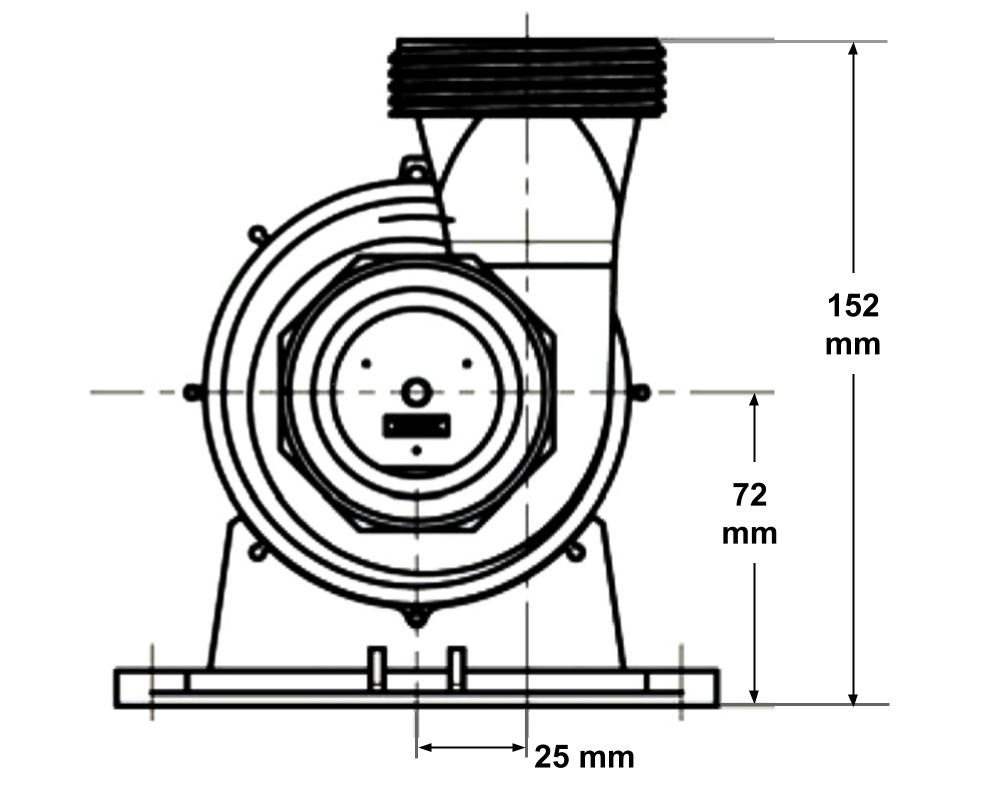

Dimensions
Length: 147 mm
Width: 137 mm
Height: 152 mm
Cable length: approximately 2 meters
Technical specifications
Power: 115W
Maximum flow rate: 40 GPM, 150 liters/minute
Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
We offer unions for 1.5-inch and 50 mm pipe
Cable and plug
The pump is sold pre-cabled with an AMP plug (length 200 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.
The LX Whirlpool WE14 pump has the same motor power and thread size as the E14, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Part numbers
Laing: 73348, E14-NSTNDNN2W-02, E14-NSTNDNN2W-05
Hydropool / Clair Azur: 6505116
Wellis: ACM0452
Wet end orientation
Standard exit
Exit to left
Exit to right
Plug types

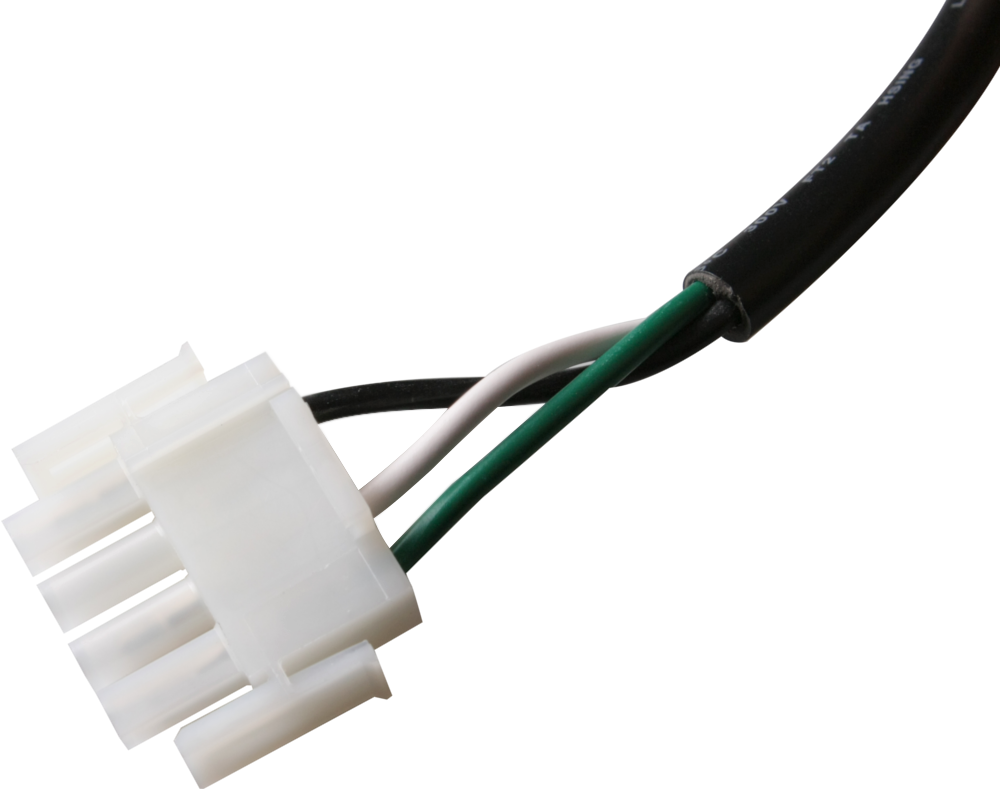

AMP plug
J&J plug
