Laing E10 pump with 3/4" barb connection

In stock
315,00€
incl. 20% VAT
Cable and plug
Quantity:
Laing E10 pump with 3/4" barb connection - Click to enlarge
Laing E10 pump with 3/4" barb connection - Click to enlarge
Laing E10 pump with 3/4" barb connection - Click to enlarge
Laing E10 pump with 3/4" barb connection - Click to enlarge

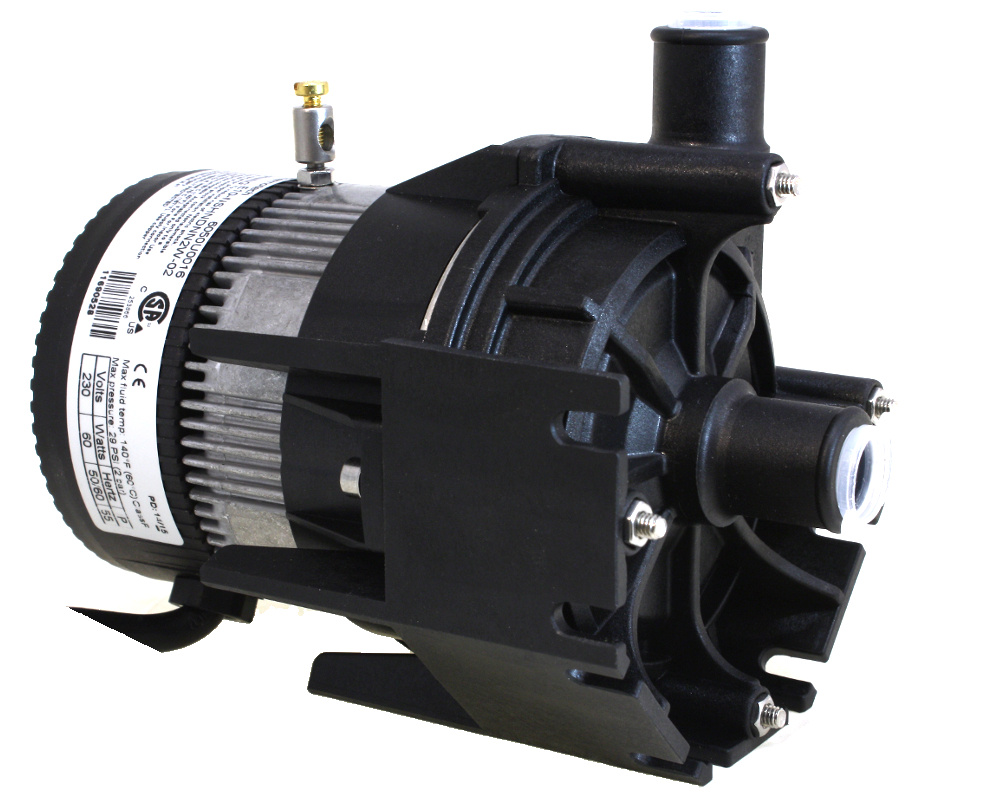

This small E10 filtration pump from Laing (Xylem) is the new version of the E10 model, used by major spa manufacturers like Dimension One, Sundance and Hot Spring. It is built to run 24 hour per day. This clever little pump has no spindle, so it is almost impossible for the water to leak from the wet end into the motor.

The pump is cabled, without a plug.

Pipe connections
3/4-inch barb, connecting to 3/4-inch clear pipe using a hose clip.

Dimensions
Length: 152 mm
Width: 110 mm
Height: 125 mm

Technical specifications
Power: 60W, 1/40 HP
Flow rate: around 40 litres / minute (listed as 11 GPM)

Cable and plug
The pump is supplied pre-cabled without plug (length 110 cm). If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

Spare parts
The only replacement part of the Laing E10 pump is the rotor assembly (Ø 80 mm). Be careful not to confuse it with the Ø 68 mm version. Check the diameter of the part you want to replace!

Similar pump
The LX Whirlpool WE10 pump has the same motor power and thread size as the E10, and roughly similar dimensions. If you want to replace your pump with another model, you must check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Laing: 73979, E10-NSHN2W-20, E10-NSHNNNN2W-01
This model replaces pumps with part numbers beginning with SM-909-NH and SM-959-NH, as well as the E10-NSHNDNN2W-02
HydroQuip: 10-0121
Sundance: replaces 6000-125 and 6500-035

Documentation

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
