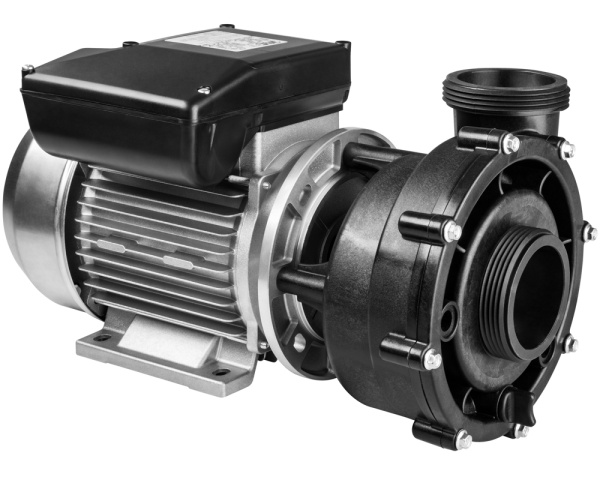

JTC PCF210 TS two-speed pump

Pumps from Italian manufacturer JTC can be found on many European spas. This two-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets.

We also stock other JTC two-speed pumps from the same series including the 2,4HP with a slightly less powerful motor and the 2,96 HP, as well as the single-speed 2,96 HP and 2,9 HP models.

Dimensions
Length: 370 mm
Width: 195 mm
Height: 215 mm

Technical specifications
Power high speed: 1,82 kW / 2,4 HP
Power low speed: 0,42 kW / 0,55 HP
Current high speed: 8,4 A
Current low speed: 2,1 A
Maximum flow rate: 650 liters/minute

Connections
Outflow and intake: male threaded with a 78 mm outside diameter (2-inch MBT).
The pump unions are included. This pump is normally connected to a 63 mm pipe.

Cables and plugs
The JTC PCF210 TS two-speed pump is delivered pre-cabled without plug or with an AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Warranty
2-year Tubs Parts warranty

Part numbers
JTC: PCF210 TS
