HydroAir Magna socket 32 x 50 mm

In stock
42,00€
incl. 20% VAT
Quantity:

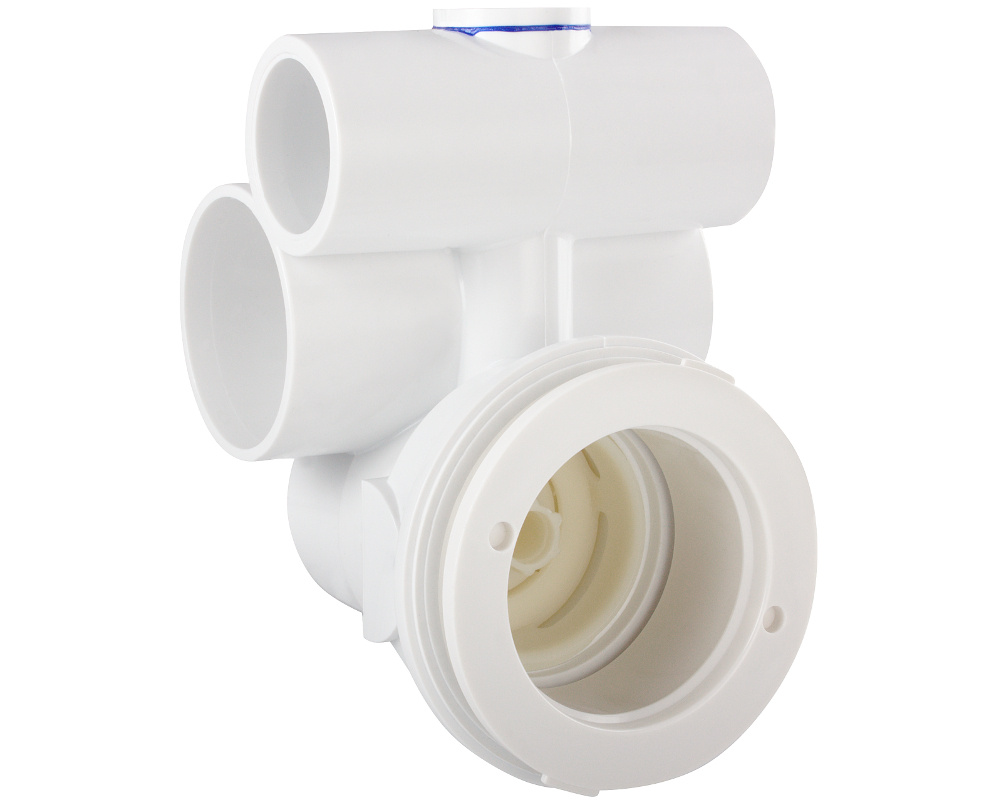

HydroAir Magna socket 32 x 50 mm - Click to enlarge

The connections of this part allow serial connections of several sockets. We recommend that you connect a maximum of 6 to 8 Magna jets to a 2 HP pump, for a flow rate of approximately 3000 to 4000 litres per hour per jet.

This piece is composed of three elements: the socket itself where the pipes connect, the gasket, and the wall fitting. This last one will come to screw with the joint on the tiled part of your spa. Finally, the different Magna'ssage jets ( rotary, directional or twin-roto) will clip in front of each other.

Dimensions
Drill diameter : 66 mm
Max. spa wall thickness (plus glue) : 14 mm

Hose connections
Water : 50 mm
Air : 32 mm

Part numbers
HydroAir: 10-4833ME
You can also have this reference on your part: 30-4531ME
