Balboa Niagara 2-speed pump

Available in 1 week
598,50€
incl. 20% VAT
Power

Options
Quantity:
Balboa Niagara 2-speed pump - Click to enlarge
Balboa Niagara 2-speed pump - Click to enlarge
Balboa Niagara 2-speed pump - Click to enlarge
Balboa Niagara 2-speed pump - Click to enlarge
Balboa Niagara 2-speed pump - Click to enlarge

The Balboa Niagara massage pump (previously called Ultimax) is the best option to replace an Ultima, Ultimax or Ultrajet pump.

Balboa changed the electrical box on its new models. The Balboa Niagara 2-speed pump is now more bulky in height (245 mm vs. the former 205 mm). If the new model does not match your installation, the HA440NG (1.5 HP only) is an ideal replacement.

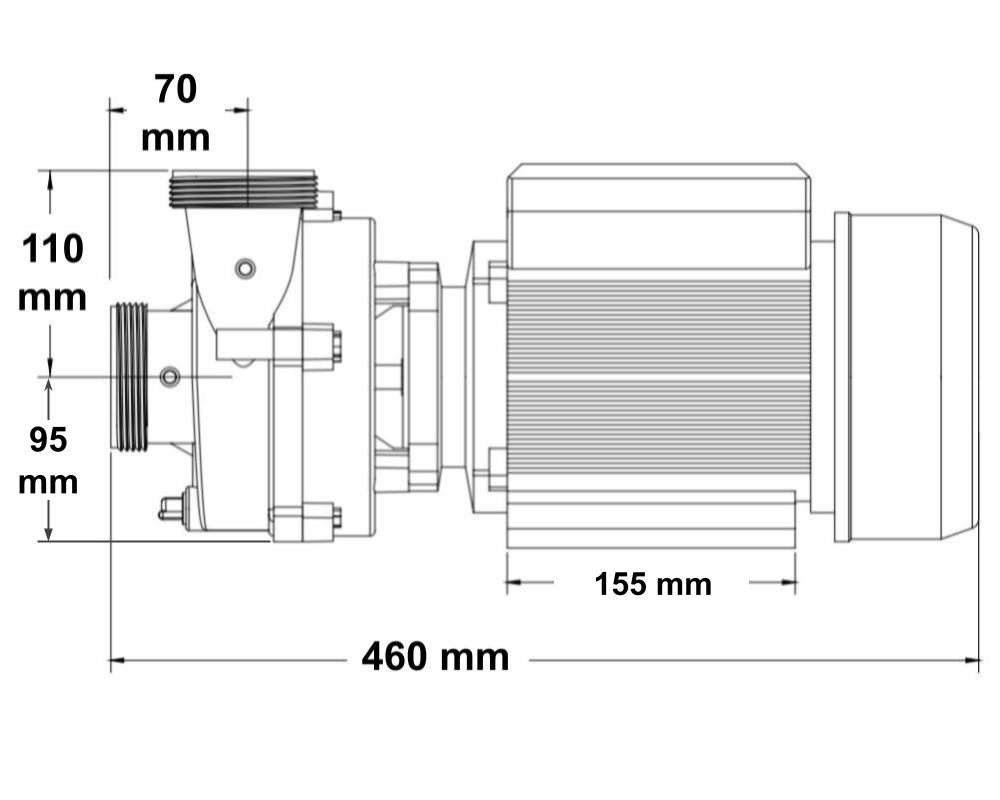

Dimensions
Length: 460 mm
Width: 205 mm
Height: 245 mm

Technical specifications

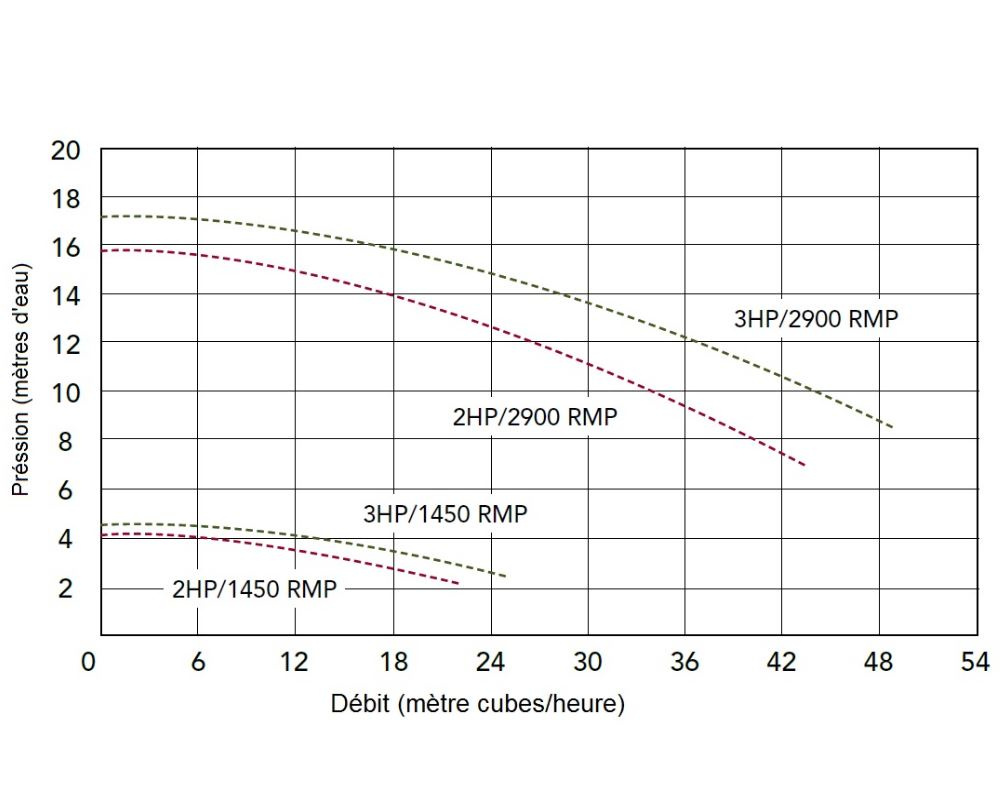

This Balboa Niagara pump is available in two power ratings.
2 HP: 1.65 kW high speed / 0,4 kW low speed. Current 9,0 A / 1,9 A.
3 HP: 2.5 kW high speed / 0,55 kW low speed. Current 11,5 A / 2,5 A

Motor speed
1450 rpm low speed
2900 rpm high speed

Connections
Male threaded, with an assymetric MBT 2-inch thread (outside diameter of 78 mm).
The Balboa Niagara is normally connected to 2-inch pipe. The pump unions are not included in the price of this pump, but are available as an optional extra.

Cable and plug
The Balboa Niagara pump is delivered pre-cabled with an AMP plug (length 260 cm). We can also re-cable the pump depending on your needs with a mini J&J plug or an in.link plug (length 100 cm).

Capacitors
Just in case you need to replace one
Low speed: 16µF
High speed: 40µF

Spare parts
We offer a wide range of spare parts for this pump

Warranty
2-year Tubs Parts warranty

Part numbers
Balboa 2 HP: 1023322, 1023324, 1023012, 1023013, 1023020, 1023040, 1023057 and 1023058
Balboa 3 HP: 1023023, 1023332, 1023336, 1023006, 1023008, 1023009, 1023039, 1023061 and 1023062
Arctic Spas: EEW41 (2HP)

Documentation

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to right

Exit to right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
