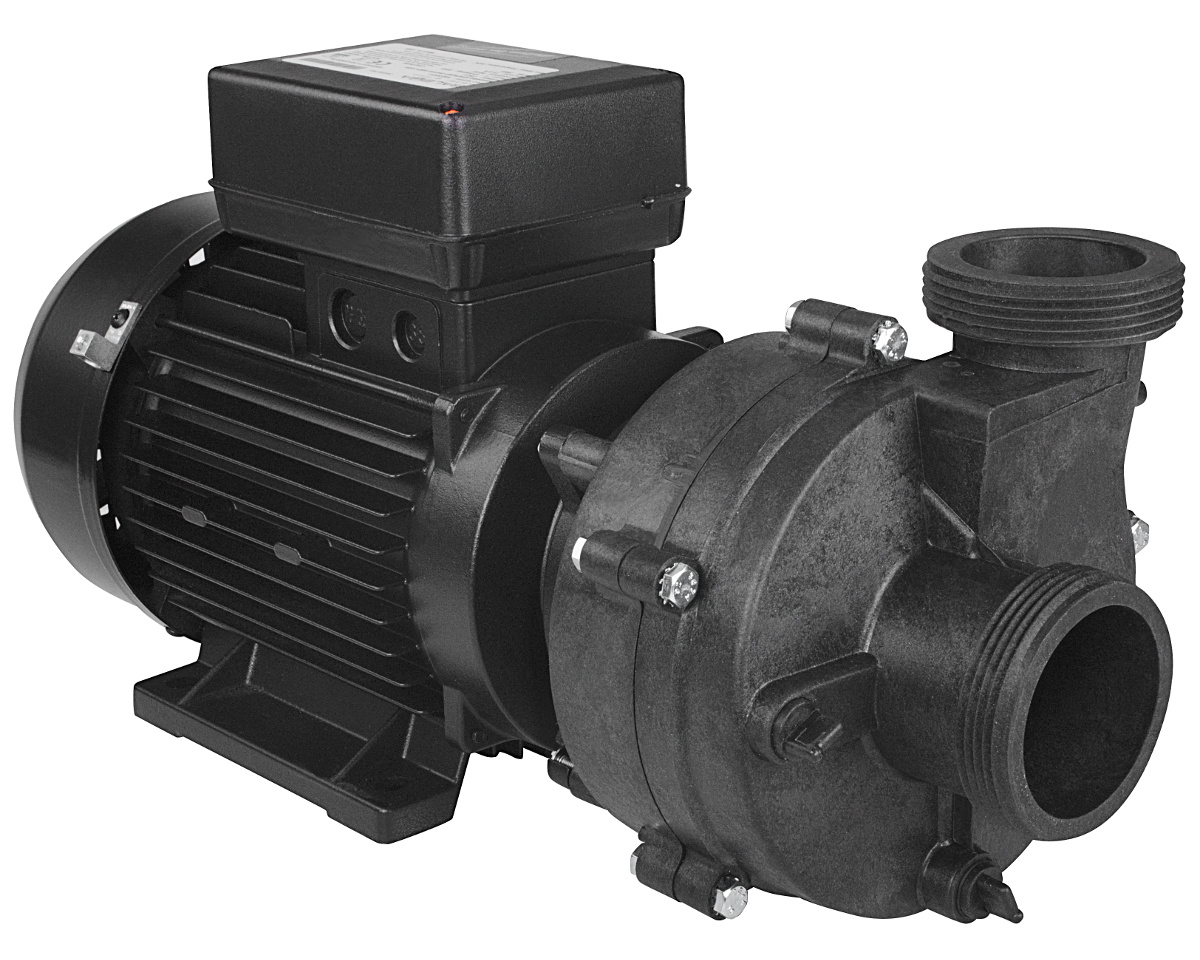

Balboa Niagara 3 HP single-speed pump

The Balboa Niagara 3HP massage pump (previously called Ultimax) is the best option to replace a Balboa Ultima, Ultimax or Ultrajet pump.

Because of its small height, this massage pump could be found under the spa steps.

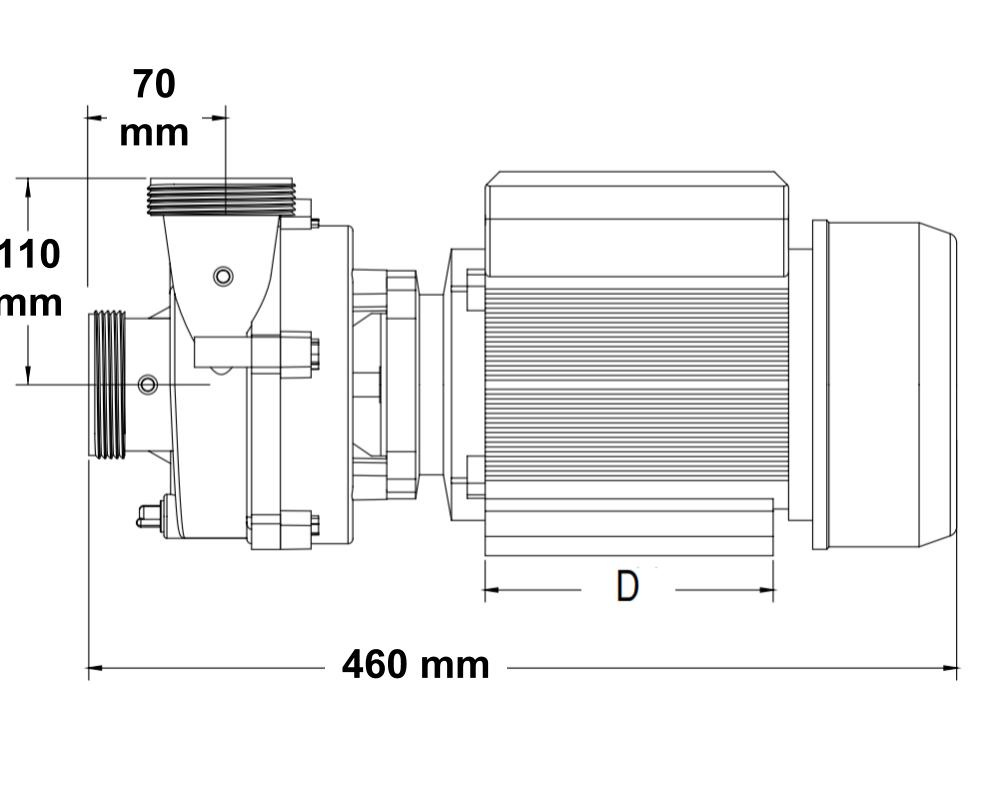

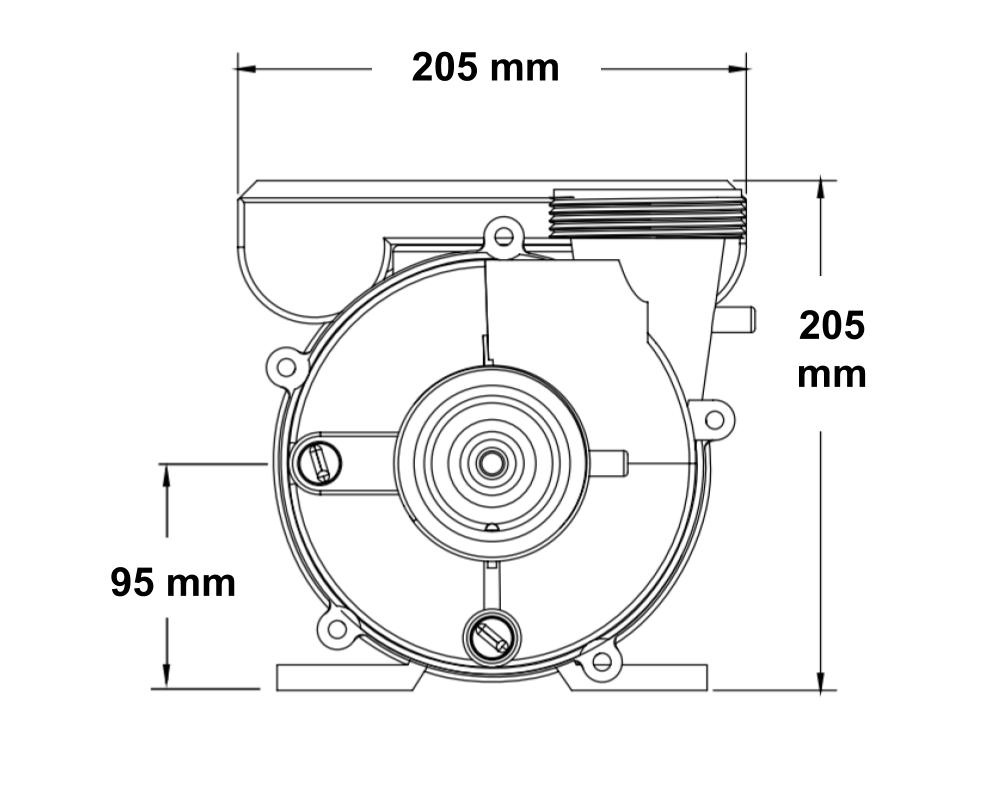

Dimensions
Length: 460 mm
Width: 205 mm
Height: 205 mm

Technical specifications
Power: 2.5 kW (3HP)
Current: 11.5 A

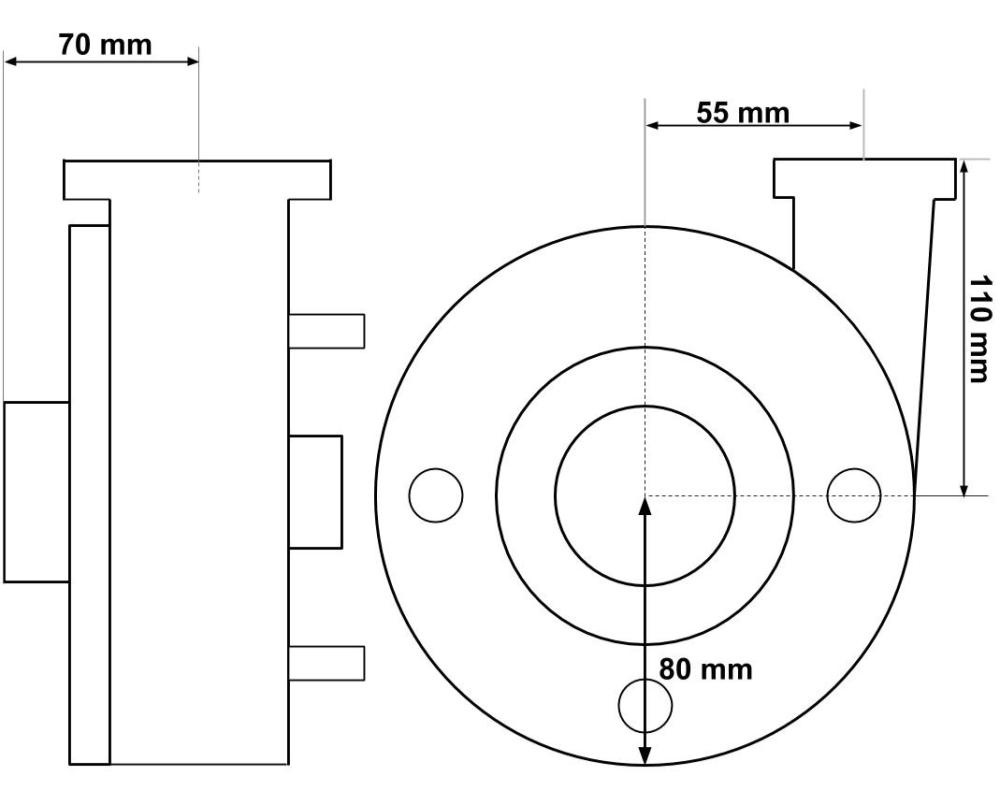

Connections
Male threaded, with an assymetric MBT 2-inch thread (outside diameter of 78 mm).
The pump unions are not included, but are available as an optional extra. The Balboa Niagara 3 HP pump is normally connected to 2-inch pipes.

Cables and plugs
The Balboa Niagara 3 HP pump is delivered pre-cabled with an AMP plug (length 250 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Spare parts
We offer the capacitor and other spare parts for this pump.

Warranty
2-year Tubs Parts warranty

Part numbers
Balboa: 1023331
