Aquatic AV wiring harness

This wiring harness is part of the Aquatic AV spa audio kit. It includes a power connection from the transformer to the amplifier, and distributes the sound from the amplifier to the speakers and subwoofer.

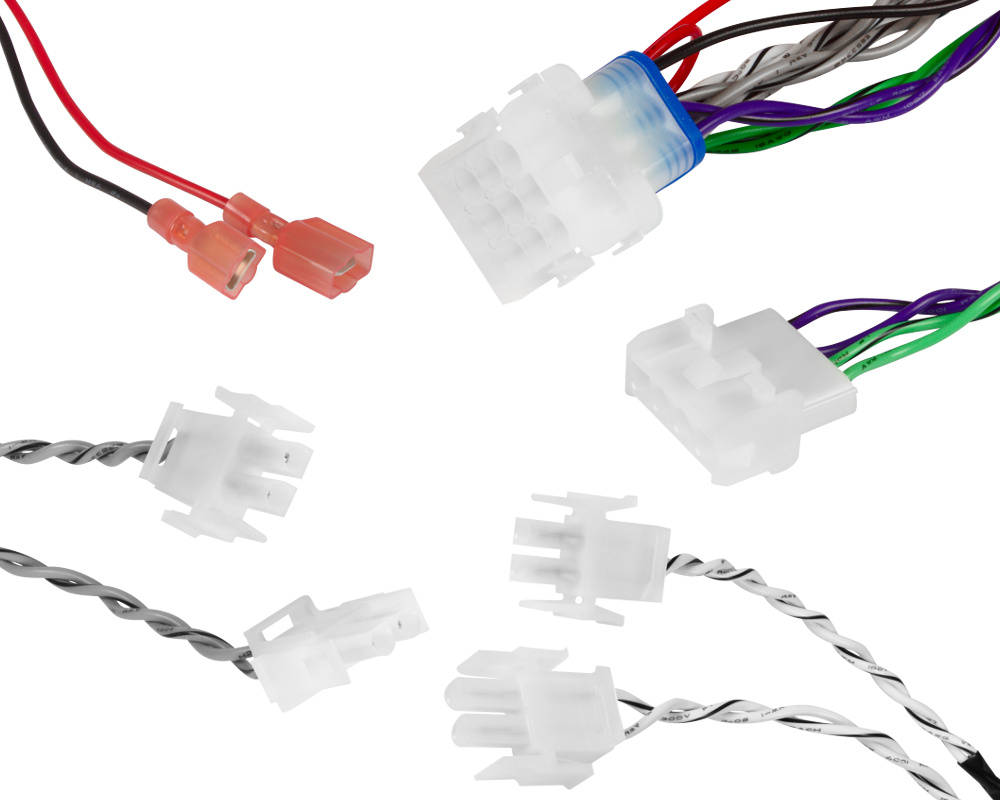

The 12-pin plug connects to the amplifier. The red and black power cable connects to a 13 V DC power source, such as an Aquatic AV transformer. Four cables connect to speakers and one to a subwoofer.

It is installed on spas manufactured by Sunrise Spas, Wellis, Aquavia and Clearwater, among other brands.

Connectors
Amplifier: AMP 12-pin
Transformer: 2 spade connectors
Speakers: 4 x AMP 2-pin
Subwoofer: AMP 4-pin

Cable lengths
Power: 60 cm
Speaker 1: 75 cm
Speaker 2: 260 cm
Speaker 3: 320 cm
Speaker 4: 450 cm
Subwoofer: 190 cm

Part numbers
Aquatic AV : AQ-UNH-2
Wellis : ACM0894
