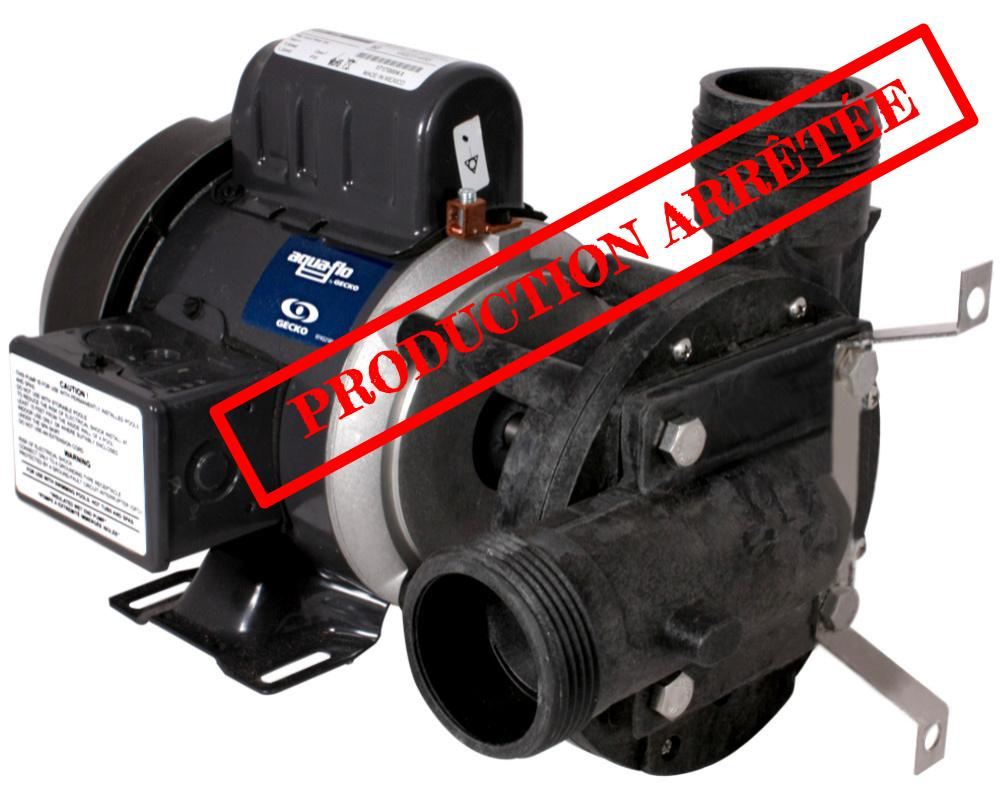

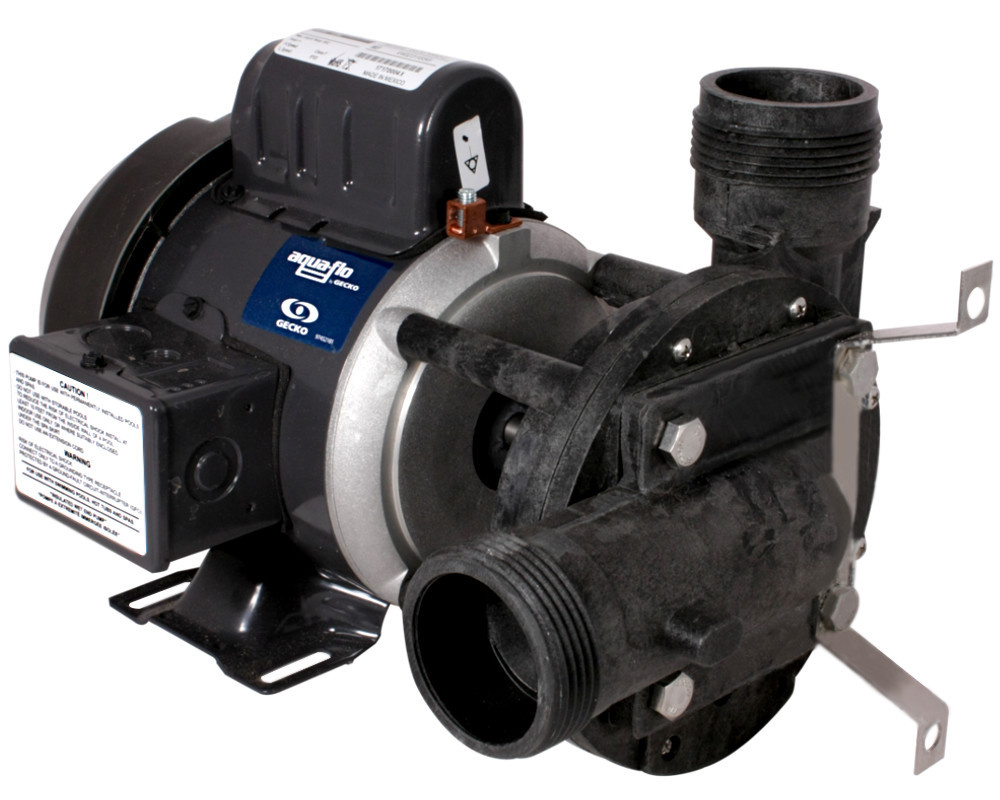

Aqua-Flo FMVP pump

We no longer offer the Aqua-Flo FMVP pump for sale. Please contact us for any replacement request.

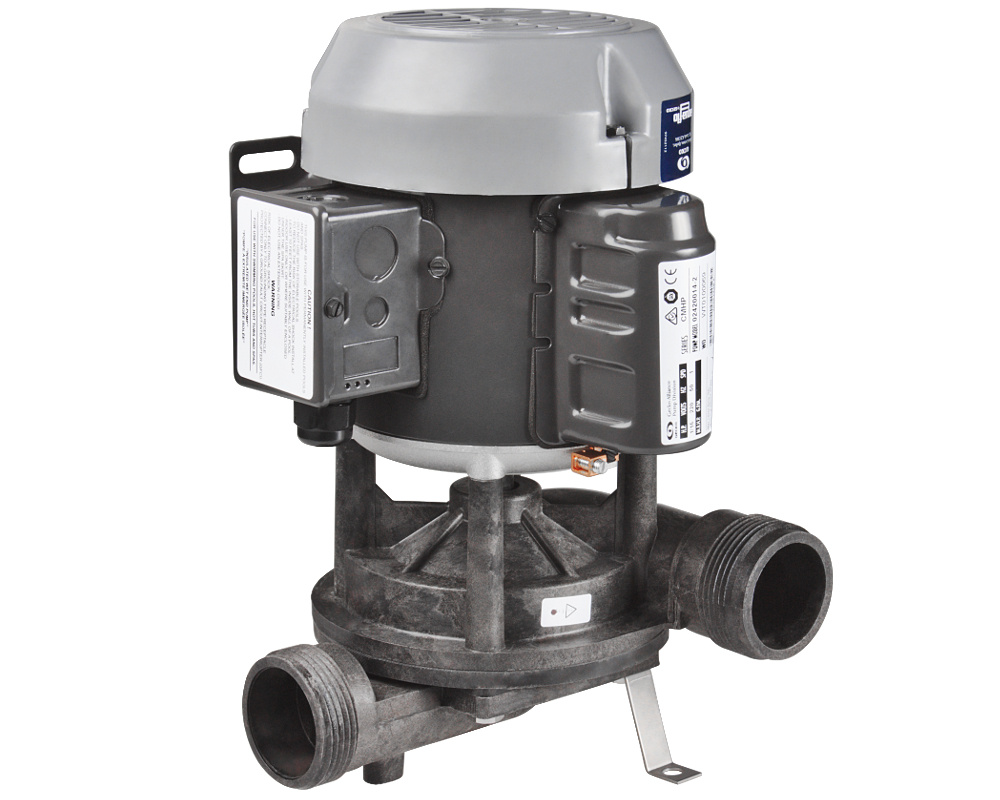

The special feature of the Aqua-Flo FMVP pump is that the suction is positioned sideways and not in the motor axis as this is the case usually. As a result it can be installed in a very tight space. This pump can even be installed in an upright position, resting on its metal support, with the wet end towards the ground and the motor above.

It uses the same quiet Emerson 1/15 HP motor as the Aqua-Flo CMHP, CMCP and CMXP pumps.

Dimensions
Length : 310 mm
Width : 210 mm
Height : 210 mm

Technical data
Power : 140W (1/15 HP)
Speed : 1425 rpm
Maximum flow rate : 180 litres/minute

Plumbing connections
Thread diameter: 62 mm (1.5" MBT)
We offer unions for 1.5" and 50 mm pipe

Wet end orientation
When placing your order, you can choose the wet end orientation both for the intake and the outflow, (which is not the case with other pump models where only the outflow orientation can be selected). If in doubt or in case of a replacement for an existing pump, do not hesitate to contact us.

Cable and plug
The Aqua-Flo FMVP pump is available without plug and cable or with a AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Spare parts
We have the wet end (Waterway), the impeller and the seal of this pump in our spare parts catalog.

Similar pump
The Waterway Uni-Might pump has the same motor power and thread size as the FMVP, and roughly similar dimensions. Please note that if you want to replace your pump with another model, you must check the use of space and the fixing distances as pipe connection adjustments may be necessary.
