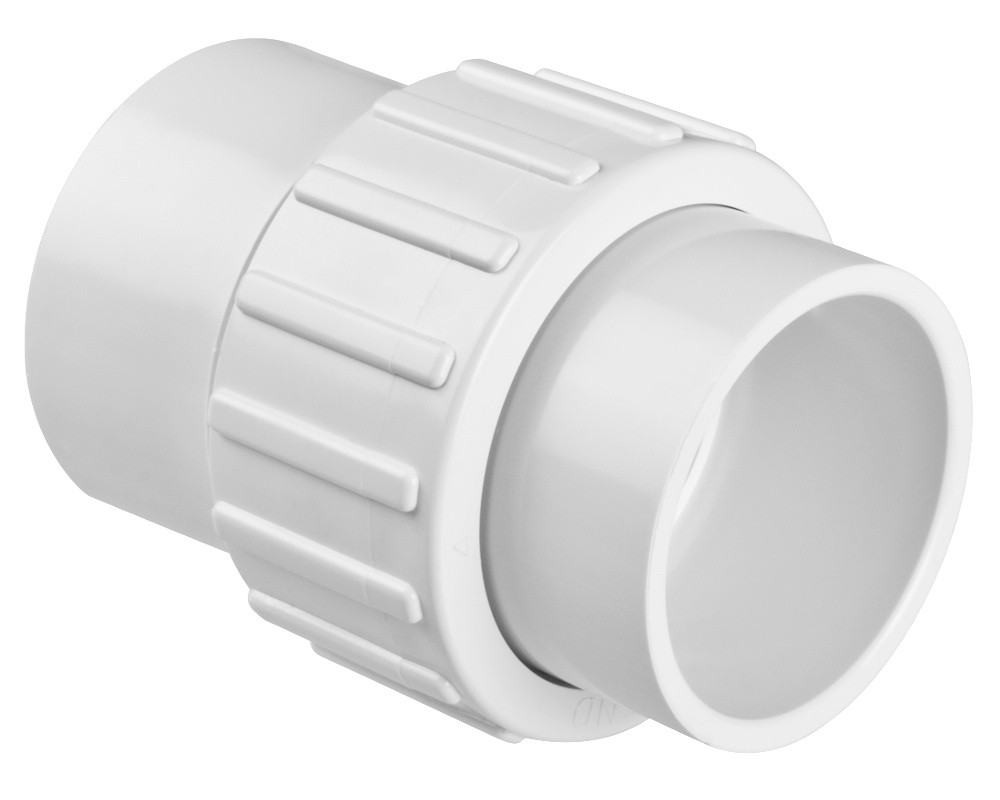

1.5-inch 3-part union assembly

This 3-piece union or coupler allows you to connect two 1.5-inch rigid or flexible) pipes together.

This union assembly is very useful as it allows you to easily disconnect the pipes afterwards for maintenance purposes, as compared to a glued straight connector, for example. To prevent any risk of leakage, the pipes on either side of the union must also be clipped to a support (wall or floor) in order to keep them well aligned despite the weight of the pipes and water, and vibrations.

Dimensions
Inside diameter: 48 mm (for 1.5-inch pipes)
Outside diameter: 60 mm (for 2-inch pipes by adding a 2-inch female fitting)
Length: 92 mm

Part numbers
Spears : 0650-15
