Gecko-Wärmepumpen-Set in.temp + in.ye-5 + in.k1001

Auf Bestellung
2790,00€
inkl. 20% MwSt.
Menge:

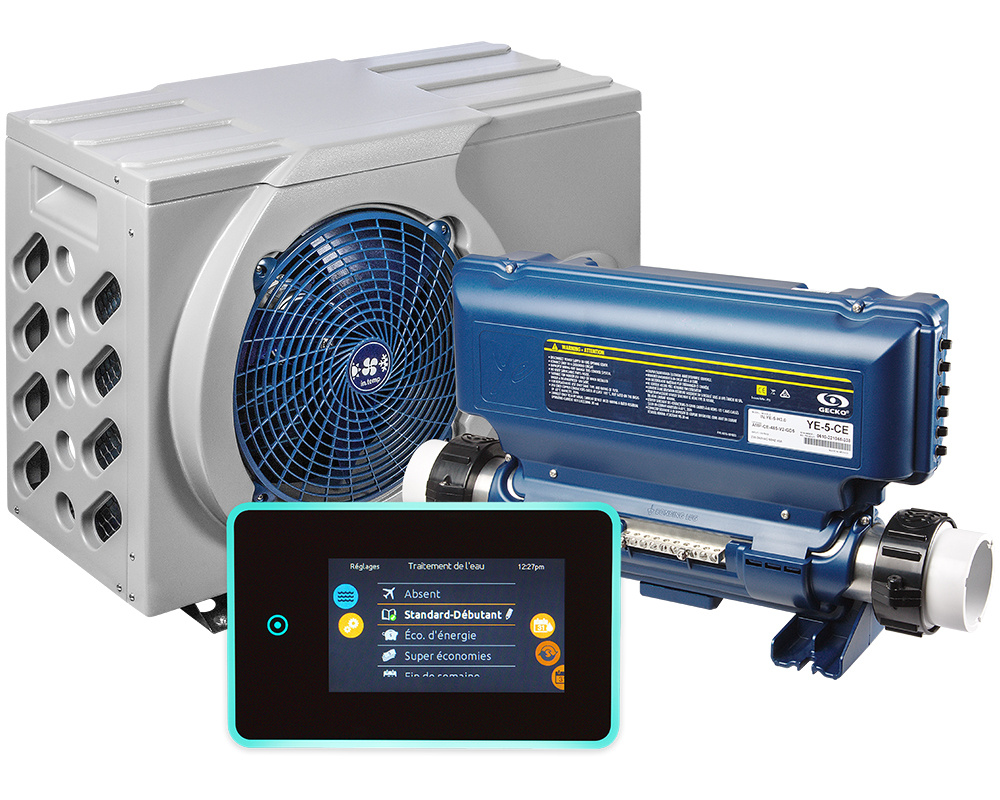

Gecko-Wärmepumpen-Set in.temp + in.ye-5 + in.k1001 - Zum Vergrößern klicken

The easy-to-use Gecko pack is perfect if you want to add a heat pump to a new spa, or replace and upgrade all your existing equipment to reduce your electricity consumption. This kit consists of the main components to efficiently control and heat your spa while reducing your energy costs. It includes:

The Gecko in.temp heat pump is easy to install and use, thanks to its automatic detection by the control system and its intelligent energy consumption management. The in.temp has heating, cooling and automatic modes to raise or lower the water temperature whatever the season. Gecko announces a 75% energy saving compared to a conventional heater, for the same use of your spa at a lower cost. Six different operating modes are available, depending on your climate and preferences. The intelligent modes allow you to take full advantage of the in.temp to optimize its performance and your savings.

The heat pump is directly connected to the in.ye-5 control system, which features a 3kW heater with the in-flow system. In addition to the heat pump, the in.ye-5 can manage up to 5 pumps and/or blowers, an ozonator, an audio system and a lighting system.

Both the in.temp and the in.ye-5 are controlled by the touchpad in.k1001 through dedicated interfaces on the keyboard. You have control over all mode and temperature settings, with for example six different heating modes available with the in.temp, depending on your climate and preferences.

Dimensions of the in.ye-5
Box width: 420 mm
Max. width with connections: 498 m
Height: 273 mm
Depth: 126 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)

Dimensions and performances of the in.temp
Width: 794 mm
Total height: 555 mm
Depth: 395 mm
Supplied with 1.5 inch and 50 mm pipe fittings and gaskets.

Temperatures Heating capacity Power input COP*
24°C air, 26°C water 5.5 kW 0.9 kW 6.2
15°C air, 26°C water 4.0 kW 0.9 kW 4.6
35°C air, 29°C water x 1.2 kW 3.2 (EER**)

* COP (Coefficient of Performance) beschreibt die Effizienz von Klimaanlagen beim Heizen.
** Die Energie Leistung oder EER (für Energy Efficiency Ratio) der in.temp funtionniert auch zur Kühlung und hat ein Index von 3,2 mit eine Temparatur von 35°C

Dimensions of the in.k1001
157 x 99 mm
Cut out area : 138 x 79 mm

Warranty
2-year Tubs Parts warranty

Gecko part numbers
in.ye-5 control system : 0610-221045
in.temp heat pump : 0615-807002
in.k1001 keypad : 0607-008087, 0607-008062

Dokumentation
